Ăng Ten Radio Lora Node V1.0 868mhz 915mhz 433mhz Rfm95 Sx1276 Cho Arduino Atmega328P 3.7-12v Ul Antenna Fz3338 Fz3339 Fz3043

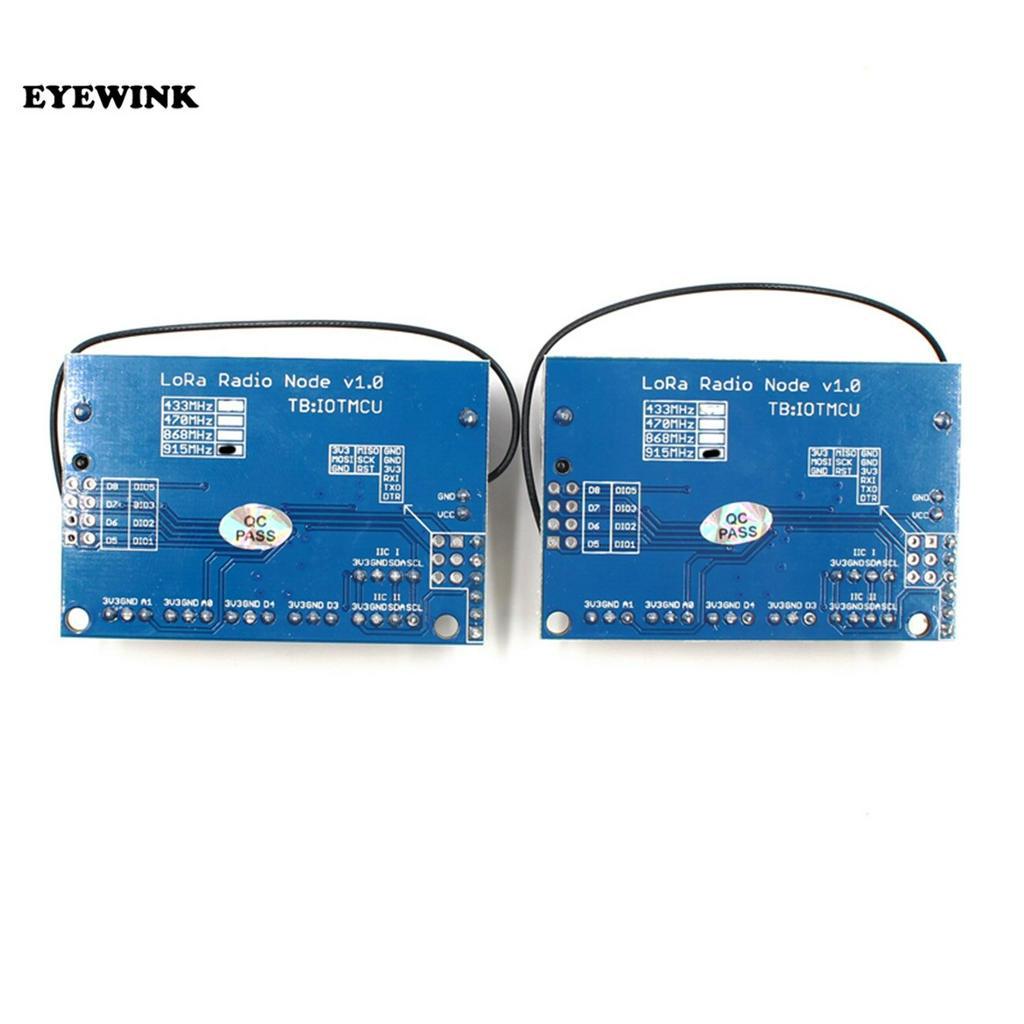

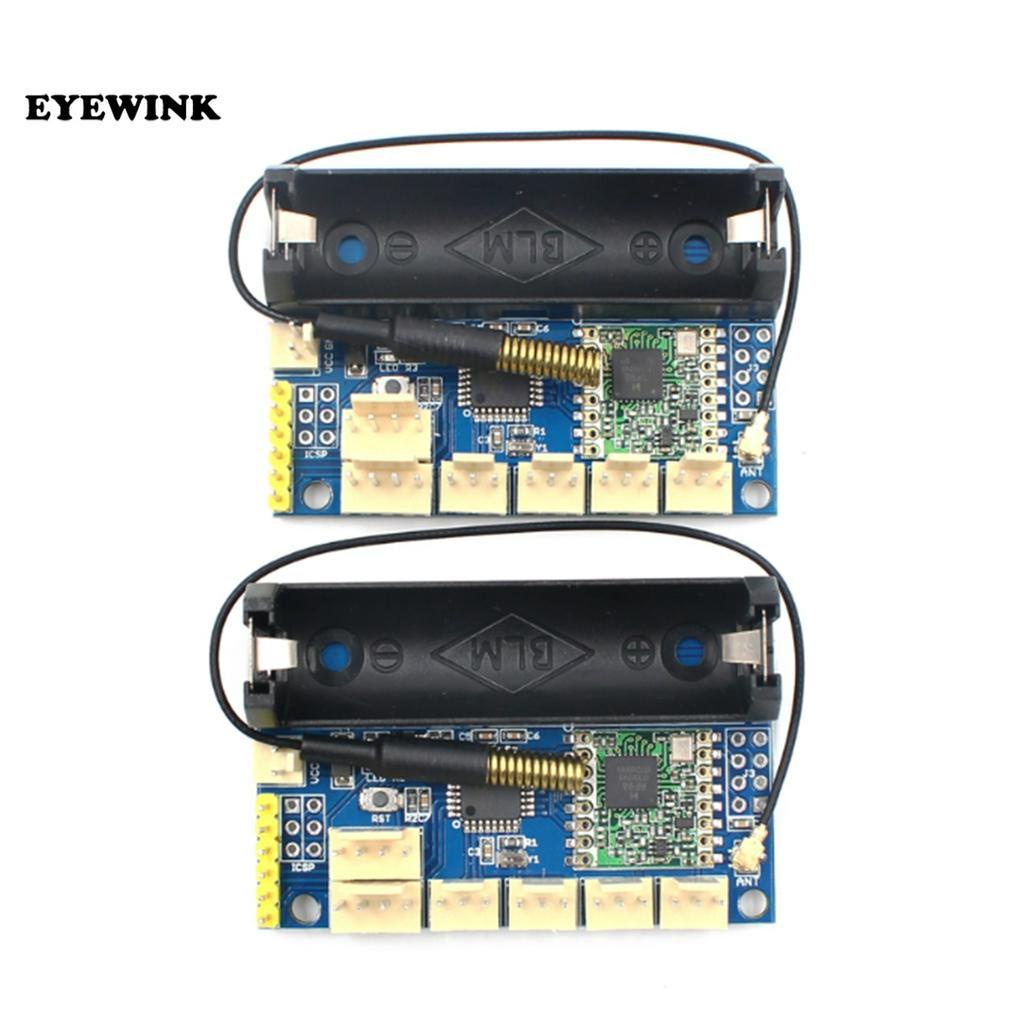

We have many products in our warehouse, our warehouse is in Shenzhen . Genaral it need 1-2weeks arrive your hand. if you subimit order , we will handle in 1-3days.if you chat with us , we donot reply you, donot worry , we are try to handle your order.so pls donot cancel order. Description: LoRa Radio Node V1.0 868MHz 915MHz 433MHz RFM95 SX1276 for Arduino ATmega328P 3.7-12V uFL Antenna Description: The LoRa Radio Node v1.0 based on the ATmega328P and RFM95 radio module. The main chip ATmega328P clocked at 8 MHz and at 3.3V logic, which use the Arduino pro mini 8Mhz 3.3V bootloader, usage same as the Arduino pro mini. This chip has 32K of flash and 2K of RAM. On board with a 3.7V 14500 battery holder, so it can use anywhere you like. In this LoRa Radio Node, we break out 2 IIC ports, 2 analog port (A0 A1) and 2 digital port (D3 D4) with 4 pin and 3 pin 2510-I type header. Feature: Power supply: 3.7V 14500 Lipo battery or 3.7-12V DC power(VCC GND: 2PIN 2510-I Type connect) Size: 40mm x 60mm ATmega328P @ 8MHz with 3.3V logic/power 3.3V regulator with 500mA peak current output Hardware Serial, hardware I2C, hardware SPI support 1 x PWM pins: D3 12 x analog inputs: A0 A1 Pin #13 BLUE LED for general purpose blinking 2 mounting holes Reset button This LoRa Radio Node uses the extra space left over to add an RFM95 LoRa 868MHz radio module. These radios are not good for transmitting audio or video, but they do work quite well for small data packet transmission when you need more range than 2.4 GHz (BT, BLE, WiFi, ZigBee). SX1276 LoRa based module with SPI interface Packet radio with ready-to-go Arduino libraries Uses the amateur or license-free ISM band: ITU "Europe" license-free ISM or ITU "American" amateur (with amateur band limitations) +5 to +20 dBm up to 100 mW Power Output Capability (power output selectable in software) ~300uA during full sleep, ~120mA peak during +20dBm transmit, ~40mA during active radio listening. uFL connector Package Includes: 1 X LoRa Radio Node v1.0 1 X IPEX interface Spring antenna
