Đầu Nối Chuyển Đổi Xpqp_Tm3034 7 Pin Sang 13 Pin

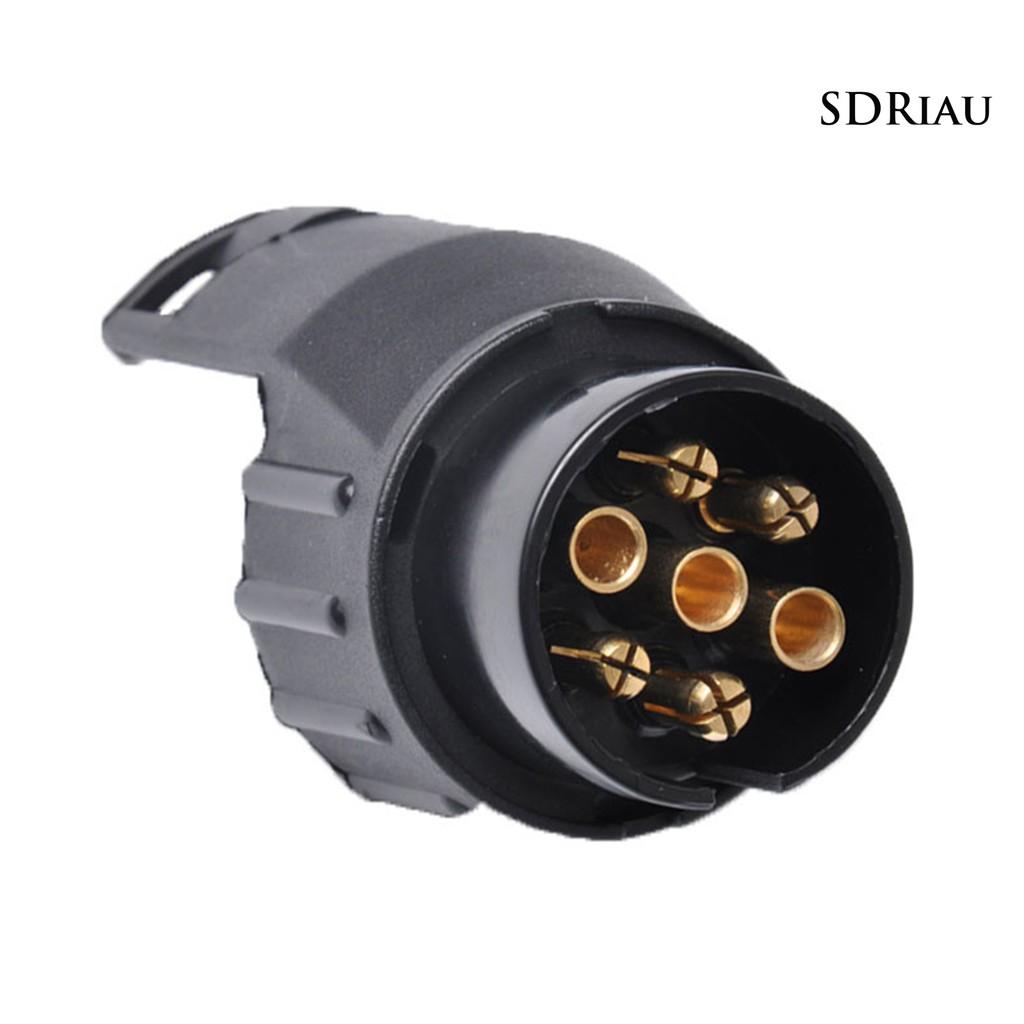

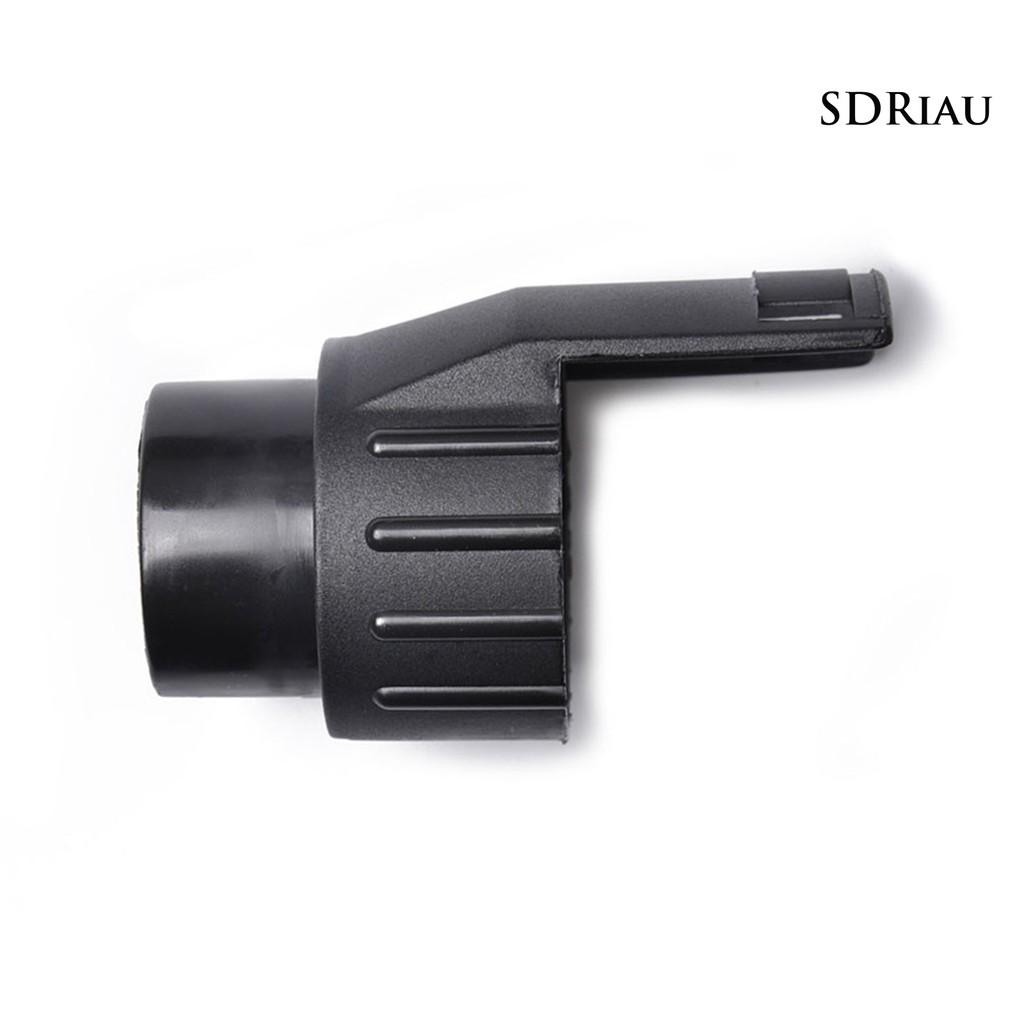

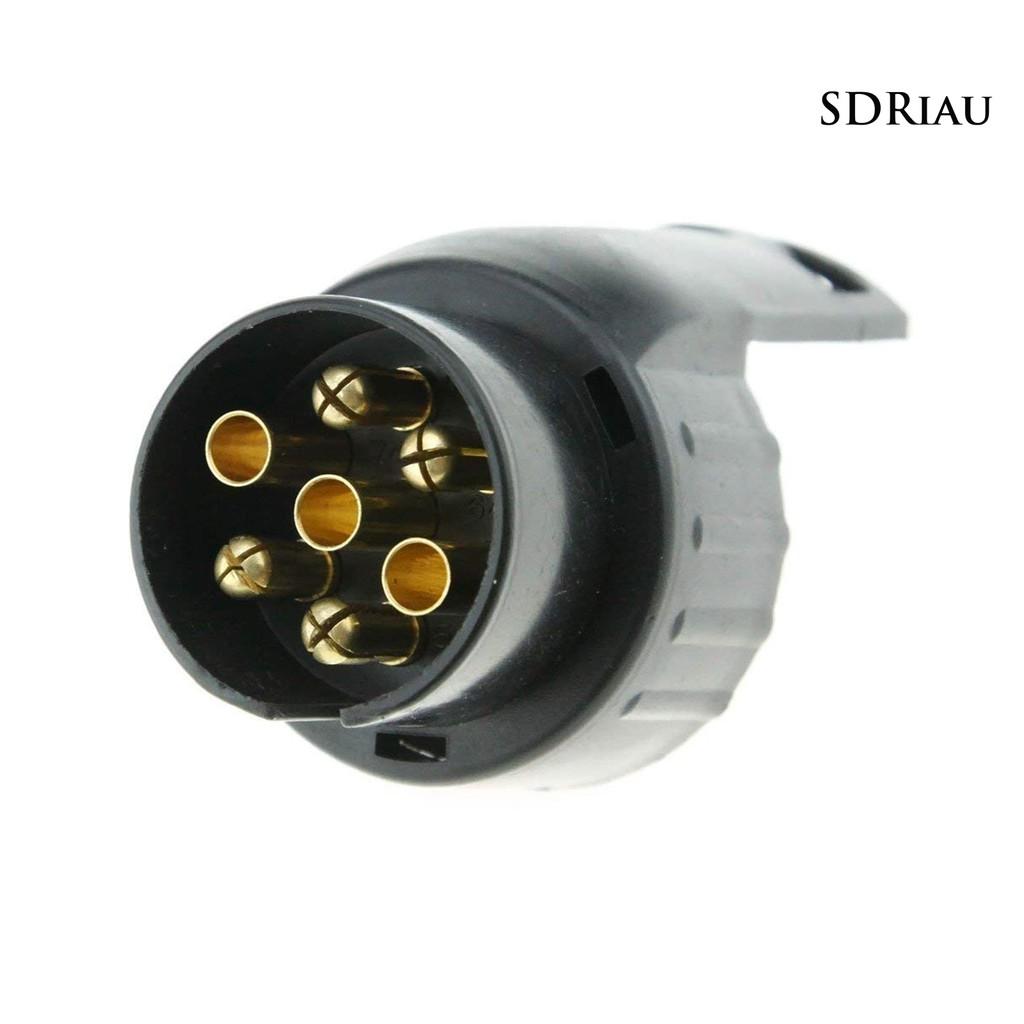

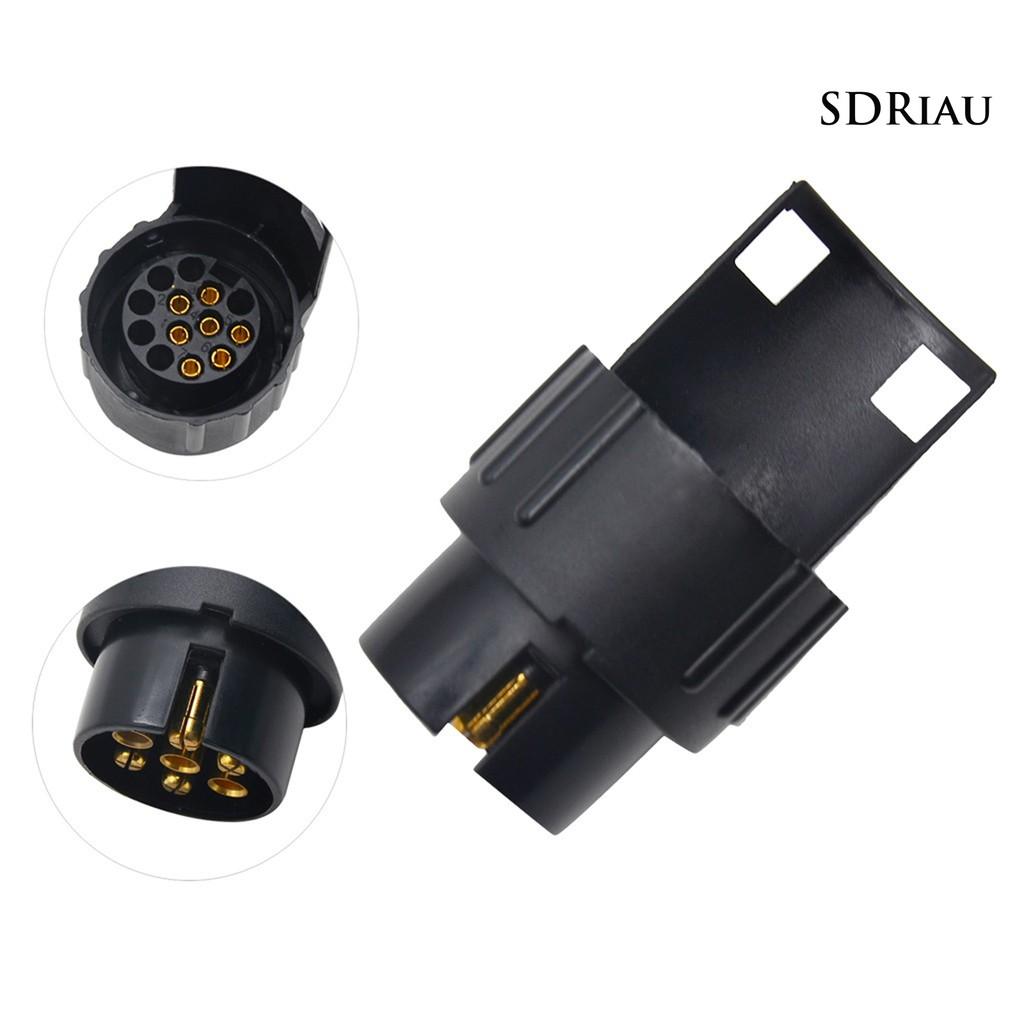

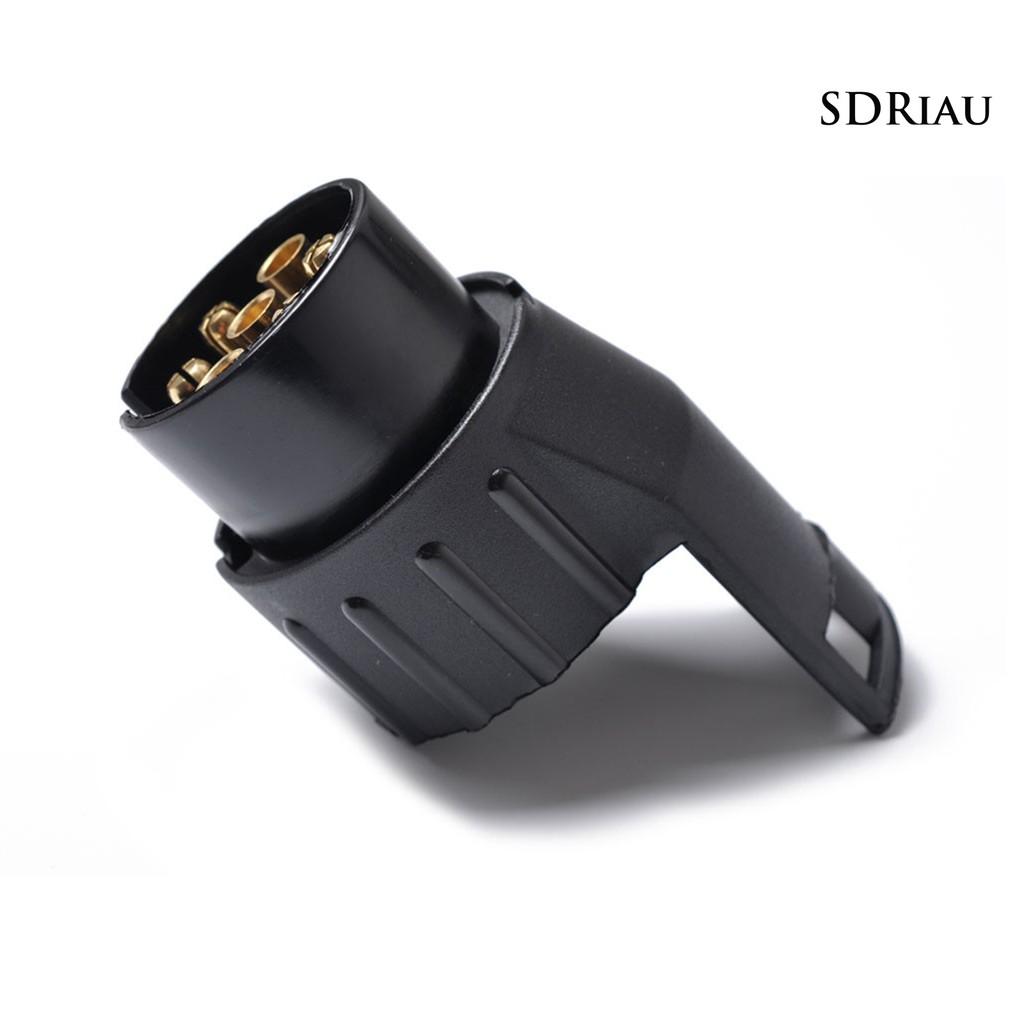

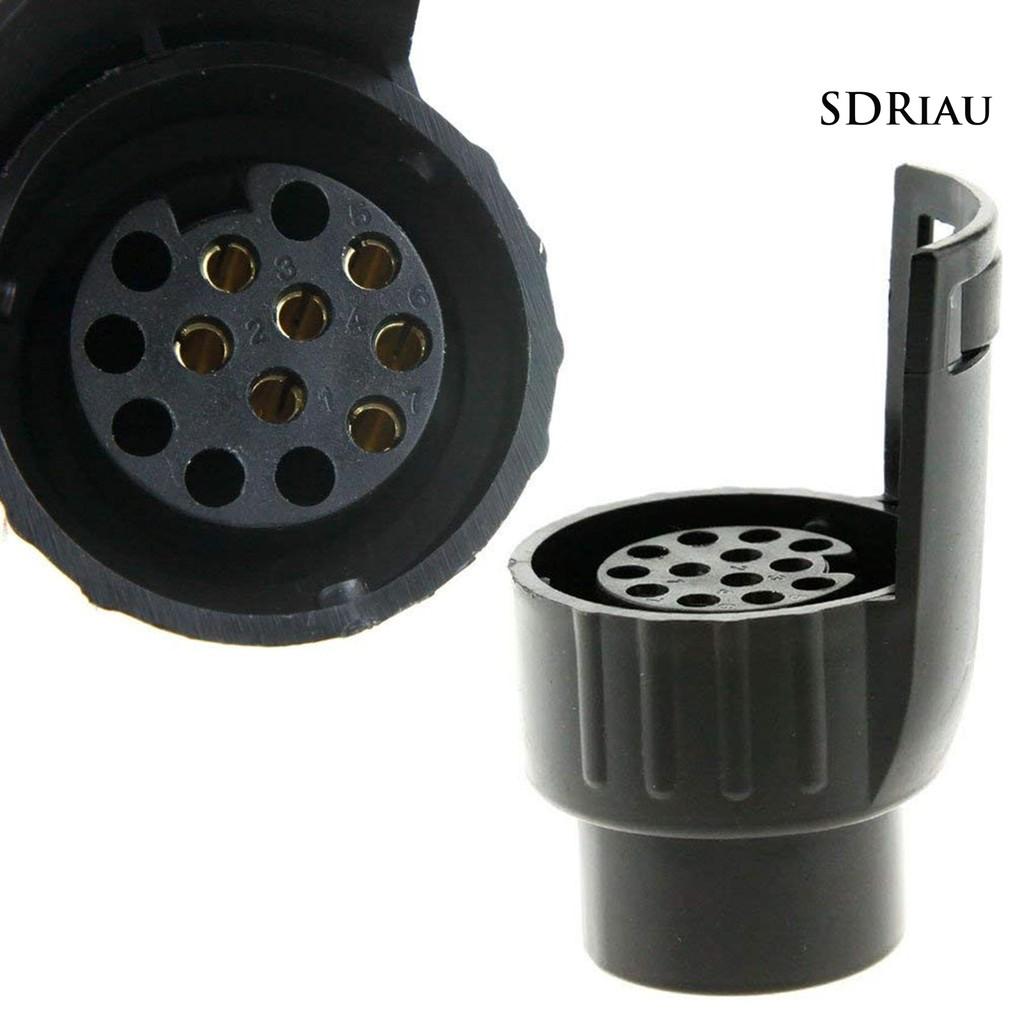

Specifications: This 7/13P adapter connector is made of high-quality ABS and premium copper materials, which is very durable, wear resisant and easy to use. This adapter is a traction and hauling accessory for trailers, cars and other vehicles, which is very professional and practical. Functions: 7-pin lighting connection-12 N black cable function: l PIN 1-yellow wire(left/horizontal direction indicator light) l PIN 2-blue wire(rear fog lamp) l PIN 3-white wire(grounded) l PIN 4-green wire(right/horizontal direction indicator light) l PIN 5-brown wire(right/H tail and license plate light) l PIN 6-red wire(brake light) l PIN 7-black wire(left/H tail light and license plate light) 13-pin lighting connection-cable function: Pin1-yellow line(left indicator light) Pin2-blue line(fog light) Pin3-white wire(ground wire) Pin4-green line(right side indicator light) Pin5-brown wire(right tail light/side light) Pin6-red wire(brake/stop light) Pin7-black line(left tail light/side light) Pin8-pink wire(reversing light) Pin9-orange wire(12V battery permanent power supply) Pin10-gray wire(12V ignition on(battery charging or refrigerator) Pin11-white/black wire(No. 10 grounding) Material: ABS, Copper Working Voltage: 12 Volts Features: Practical, Easy to Use, Durble, Traction Accessories Size: 8cm x 5cm x 5cm/3.15" x 1.97" x 1.97" (Approx.) Notes: Due to the light and screen setting difference, the items color may be slightly different from the pictures. Please allow slight dimension difference due to different manual measurement. Package Includes: Giá sản phẩm trên Tiki đã bao gồm thuế theo luật hiện hành. Bên cạnh đó, tuỳ vào loại sản phẩm, hình thức và địa chỉ giao hàng mà có thể phát sinh thêm chi phí khác như phí vận chuyển, phụ phí hàng cồng kềnh, thuế nhập khẩu (đối với đơn hàng giao từ nước ngoài có giá trị trên 1 triệu đồng).....
