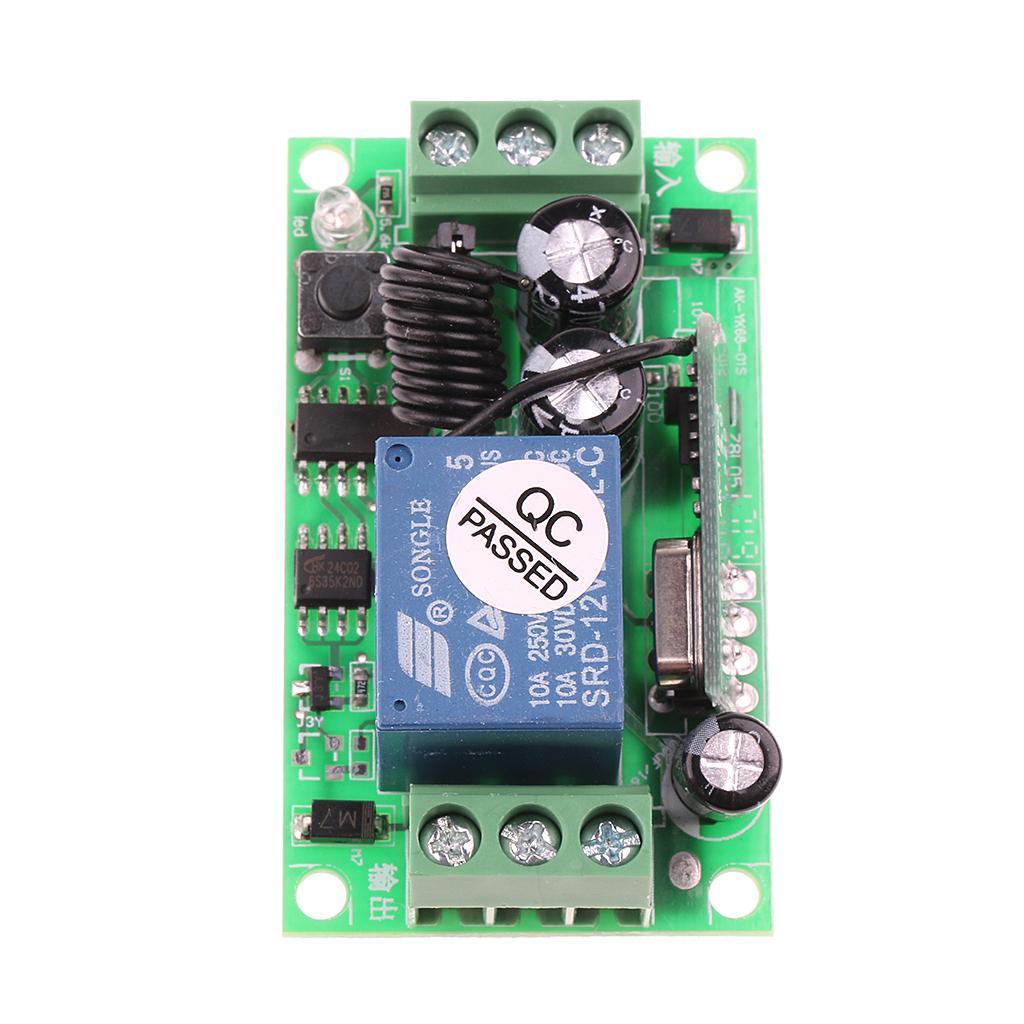

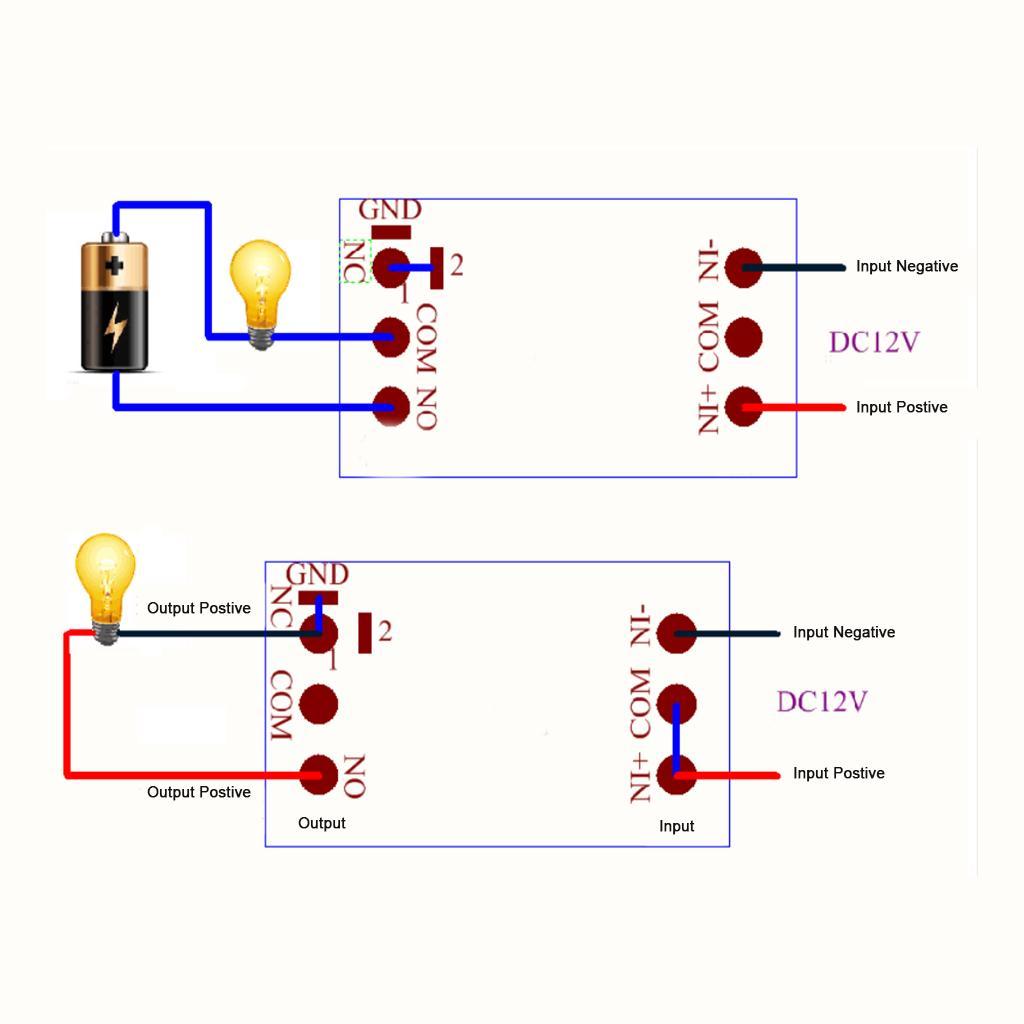

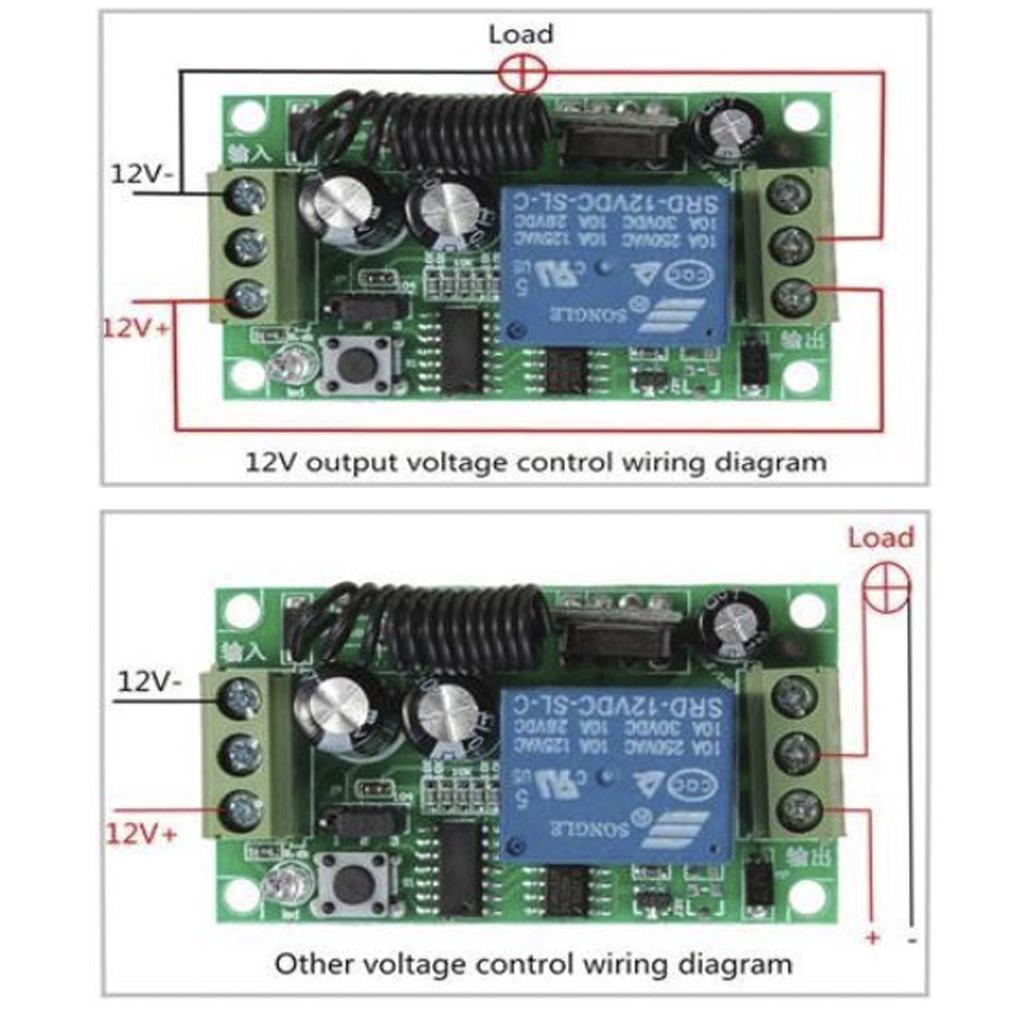

12V Learning Remote Control Switch Unit With Single Bottom Controller 315Mhz Receiver module with Circuit Diagram
12V Learning Remote Control Switch Unit With Single Bottom Controller 315Mhz Receiver module with Circuit Diagram
12V Learning Remote Control Switch Unit With Single Bottom Controller 315Mhz Receiver module with Circuit Diagram
12V Learning Remote Control Switch Unit With Single Bottom Controller 315Mhz Receiver module with Circuit Diagram
12V Learning Remote Control Switch Unit With Single Bottom Controller 315Mhz Receiver module with Circuit Diagram
12V Learning Remote Control Switch Unit With Single Bottom Controller 315Mhz Receiver module with Circuit Diagram
12V Learning Remote Control Switch Unit With Single Bottom Controller 315Mhz Receiver module with Circuit Diagram
1 / 1

12V Learning Remote Control Switch Unit With Single Bottom Controller 315Mhz Receiver module with Circuit Diagram

0.0
0 đánh giá

- Working voltage: DC12V - Static working current: ≤10mA - Working temperature: -40 ° C - + 80 ° C - Receive sensitivity: ≥-95dB - Working frequency: 315MHZ - Output current: ≤10A - Working mode: ...

110.000
Chia sẻ:
Magideal

Magideal

@magideal
4.2/5

Đánh giá

2.270

Theo Dõi

2.949

Nhận xét

Thương Hiệu
oem

Thương hiệu

OEM

Xuất xứ thương hiệu

China

Xuất xứ (Made in)

China

Sản phẩm có được bảo hành không?

Không

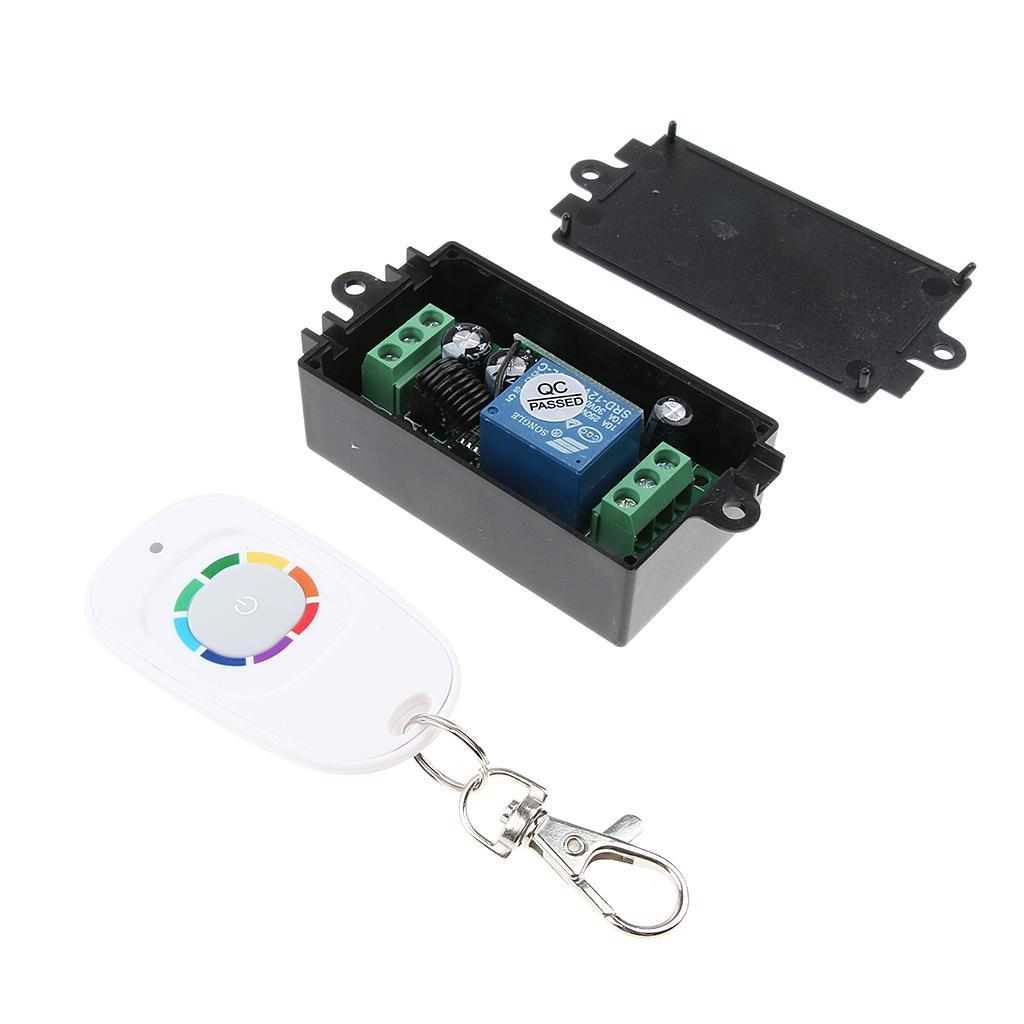

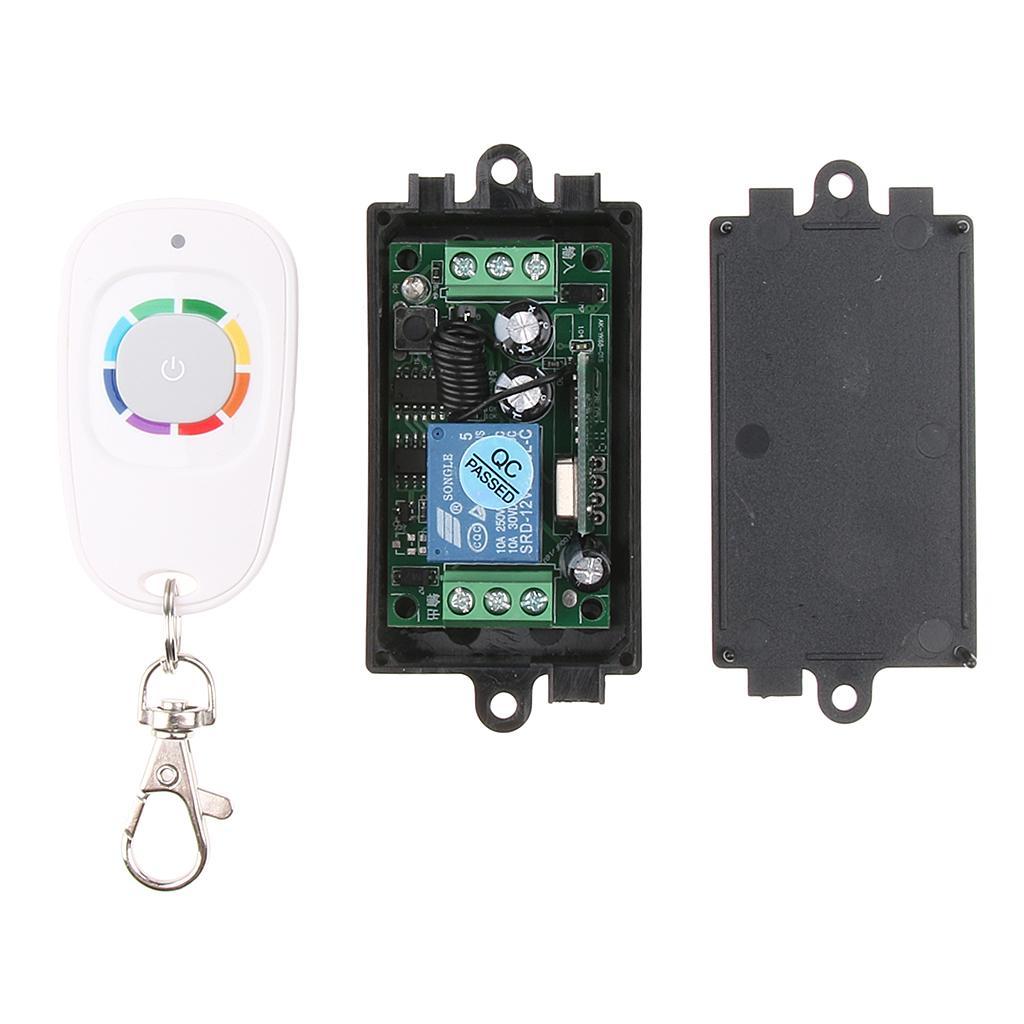

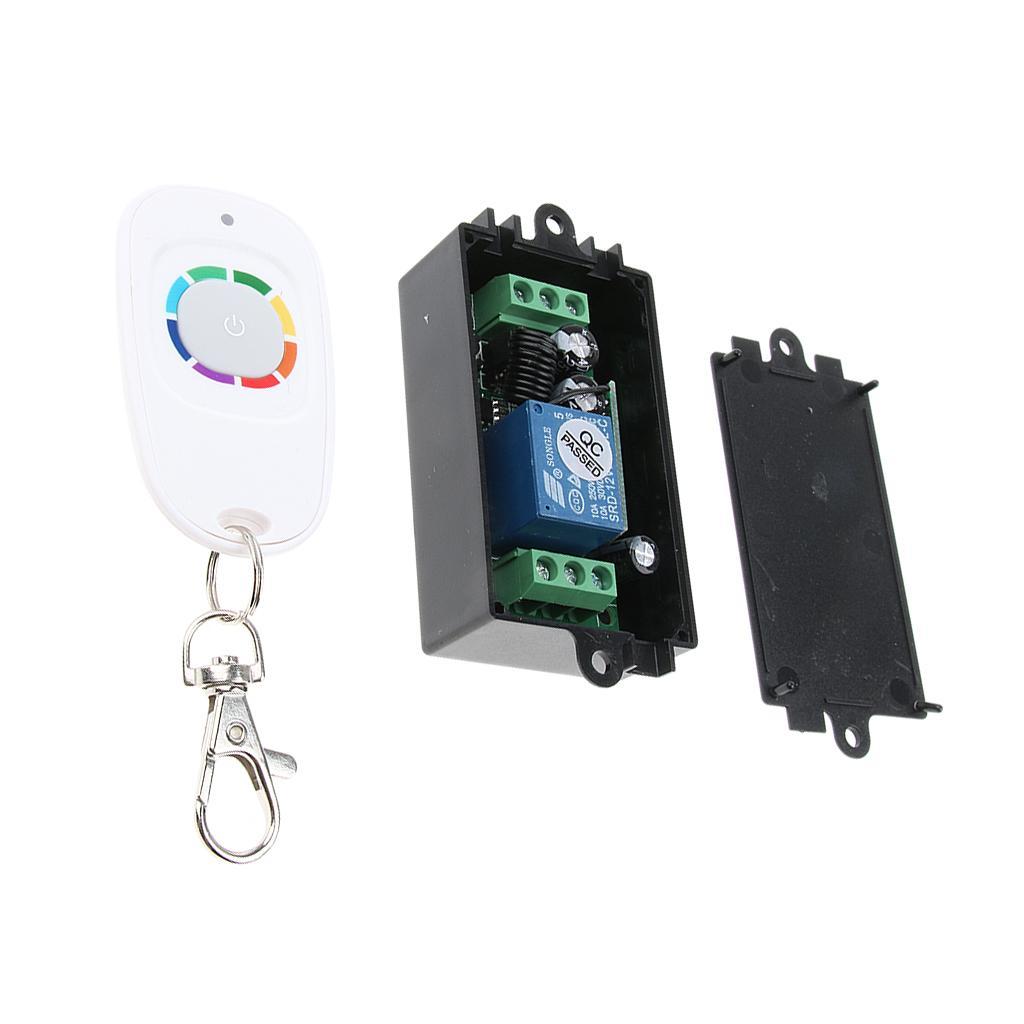

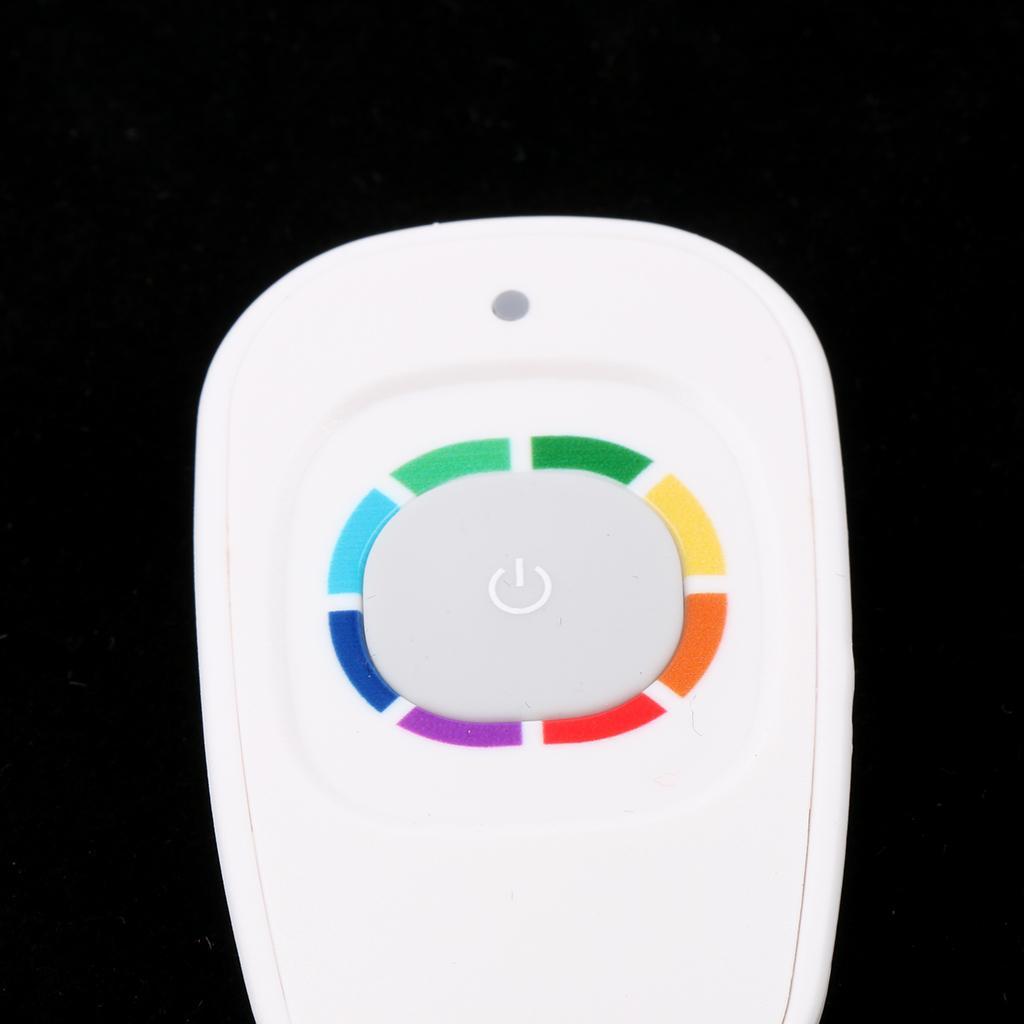

- Working voltage: DC12V - Static working current: ≤10mA - Working temperature: -40 ° C - + 80 ° C - Receive sensitivity: ≥-95dB - Working frequency: 315MHZ - Output current: ≤10A - Working mode: jumping, inching (start-stop), self-locking, (adjustable) - Size: 55 x 32 x 16mm - After the controller is powered on, the indicator light turns on, then press and hold the learning button for 2 to 3 seconds, the indicator light will automatically go out. Then release the learning button, press any button on the remote control, the indicator light flashes for 5 times, indicating that the learning is successful. - Note: This controller can learn 16 fixed codes of different codes and arbitrary buttons. If it exceeds 16 codes, it will clear the earliest learned fixed code. - How to clear the learning code: - Press and hold the learning button for about 8 seconds. The indicator will turn off and return to be on,indicating that the sweeping is successful. - Package Includes: - 1 Piece Switch - 1 Piece Controller - - Giá sản phẩm trên Tiki đã bao gồm thuế theo luật hiện hành. Bên cạnh đó, tuỳ vào loại sản phẩm, hình thức và địa chỉ giao hàng mà có thể phát sinh thêm chi phí khác như phí vận chuyển, phụ phí hàng cồng kềnh, thuế nhập khẩu (đối với đơn hàng giao từ nước ngoài có giá trị trên 1 triệu đồng).....
