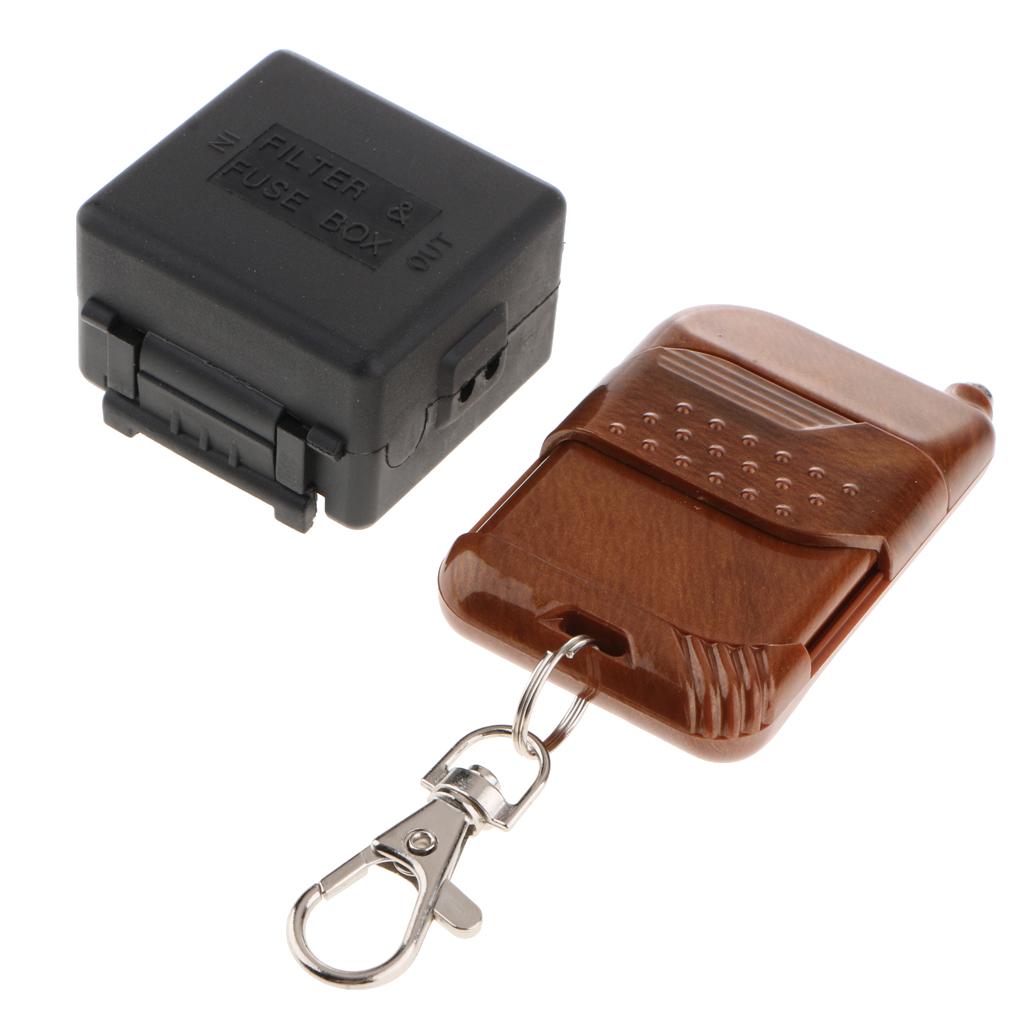

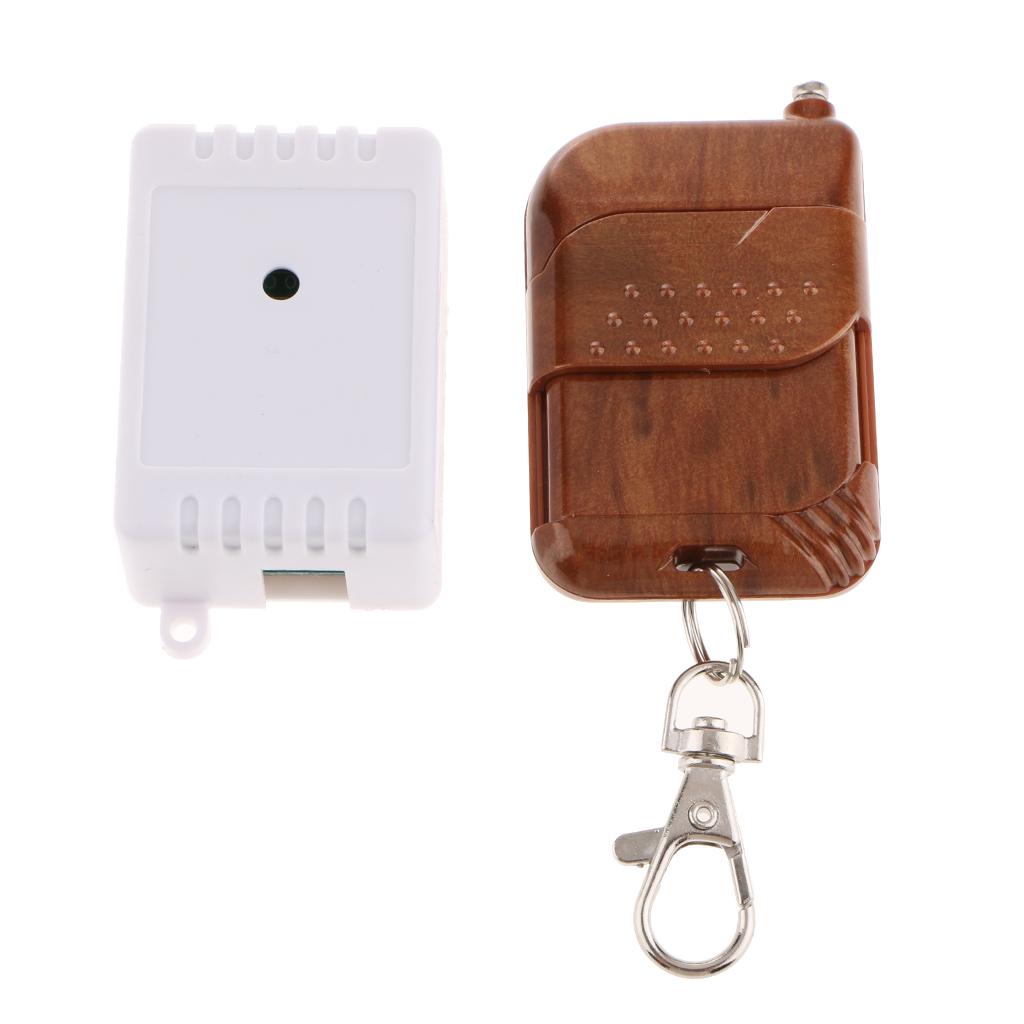

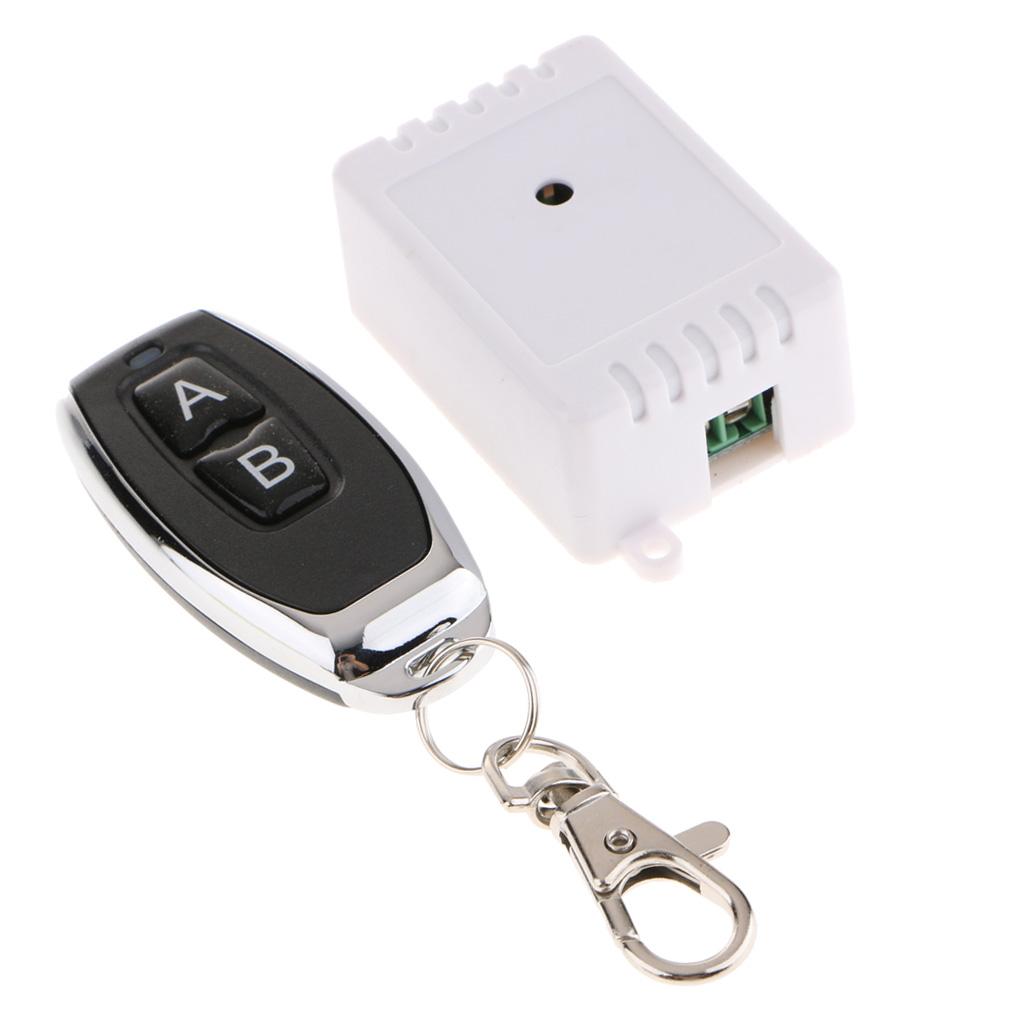

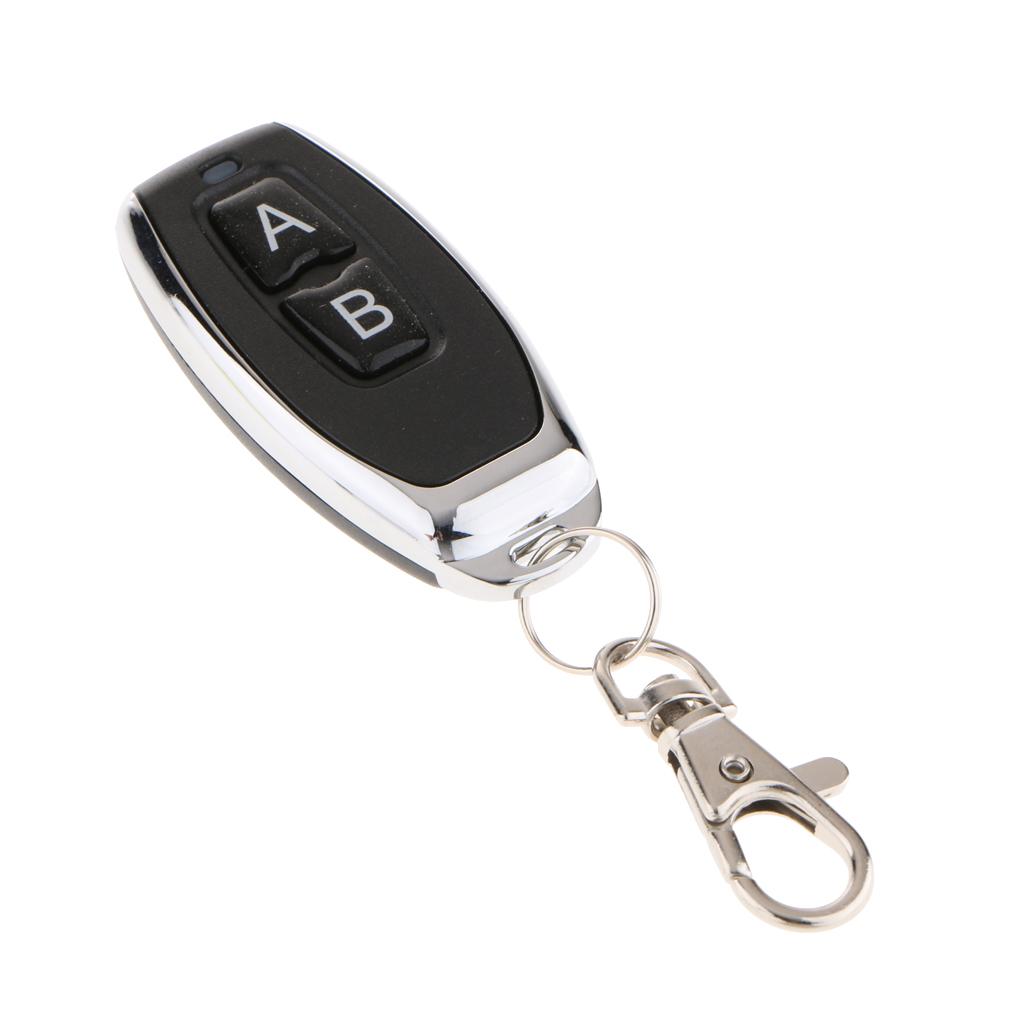

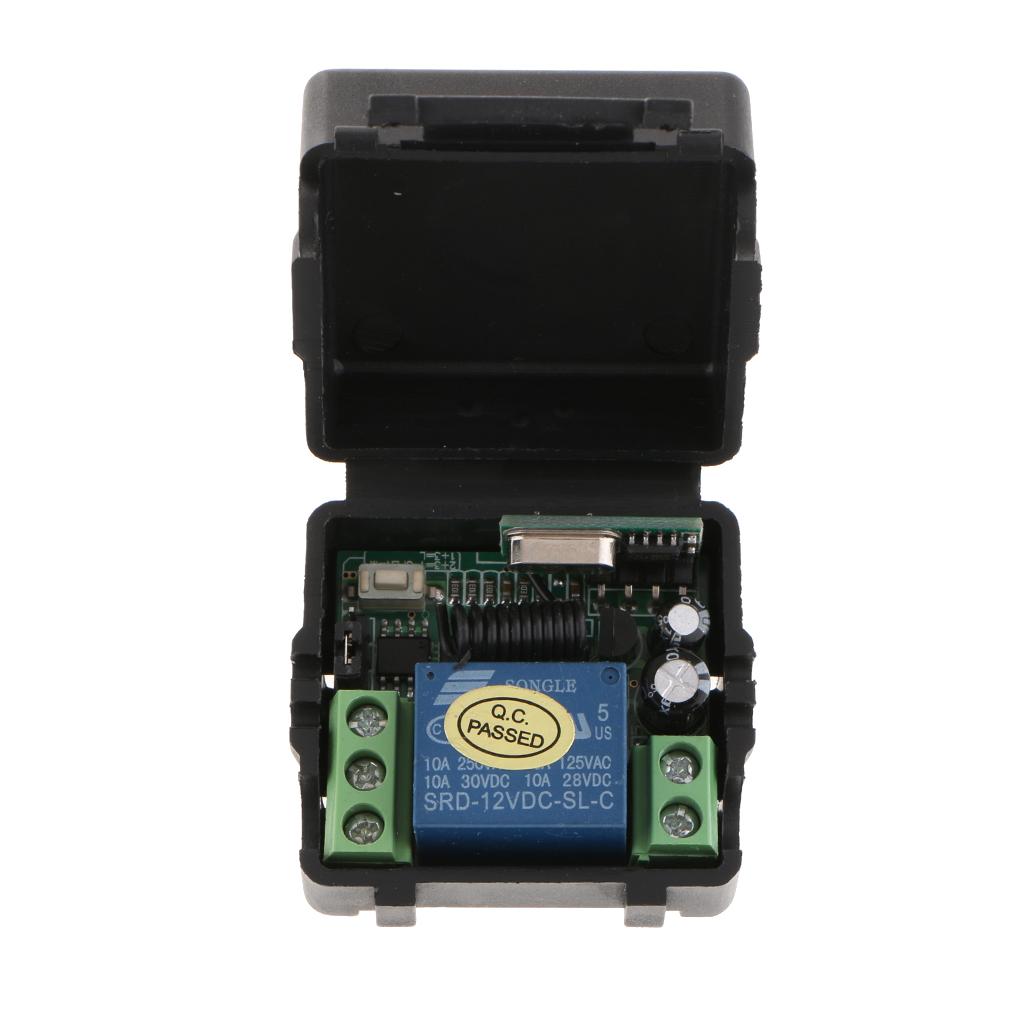

1CH Wireless RF Remote Control Switch Transmitter + Receiver 01 AB Button

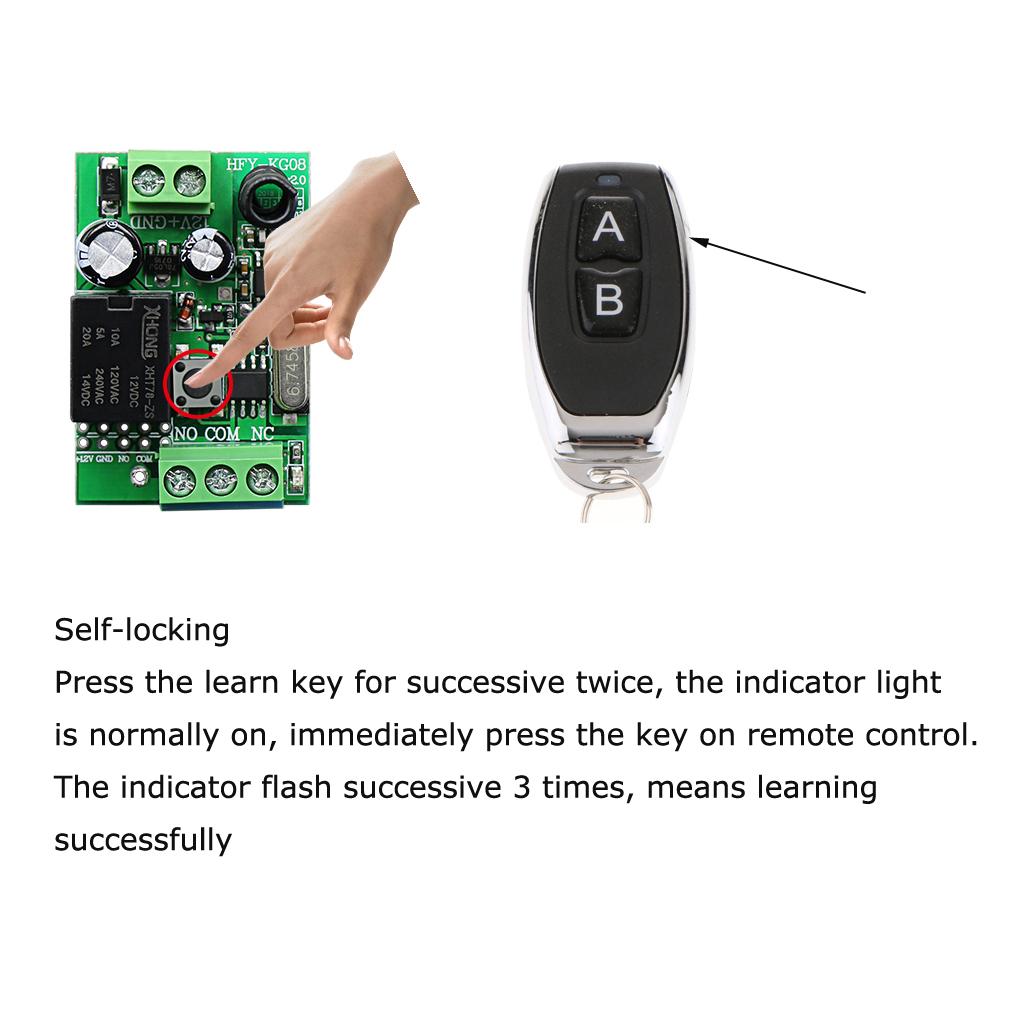

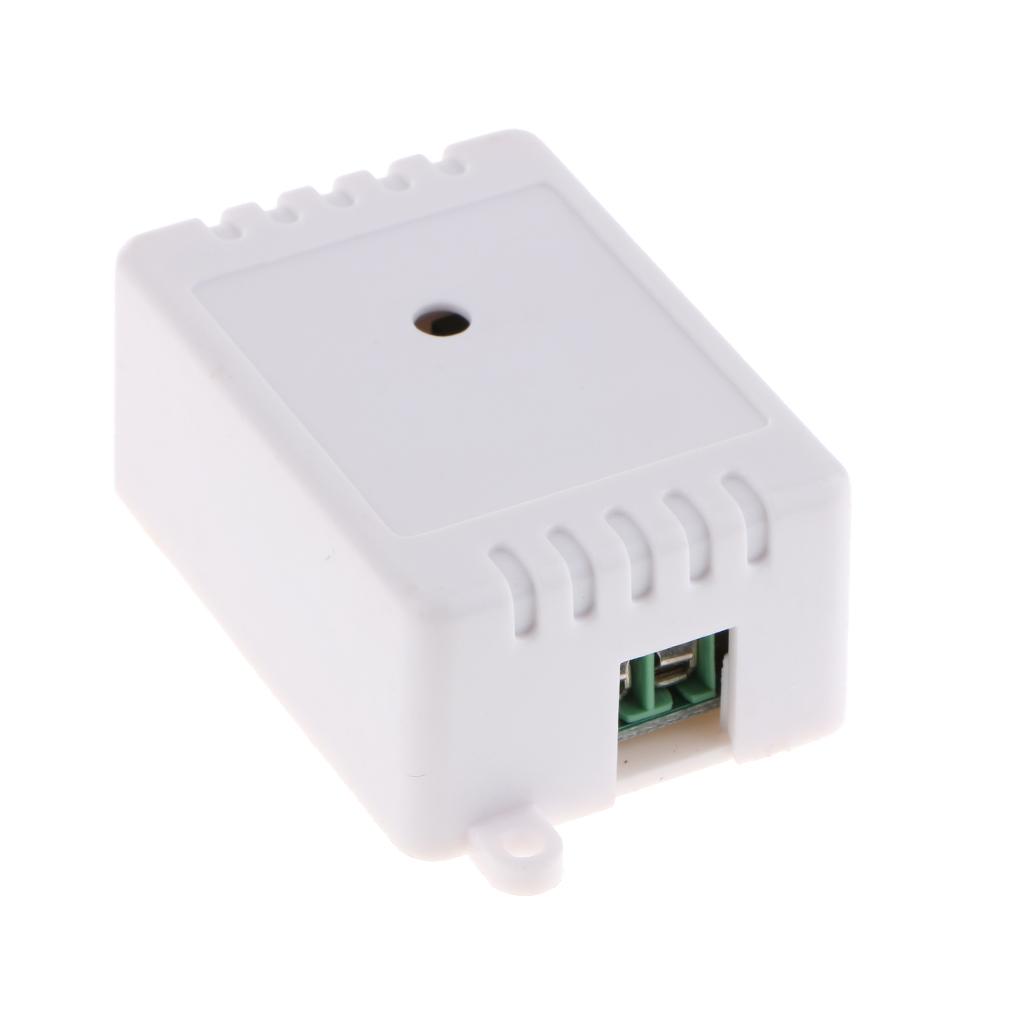

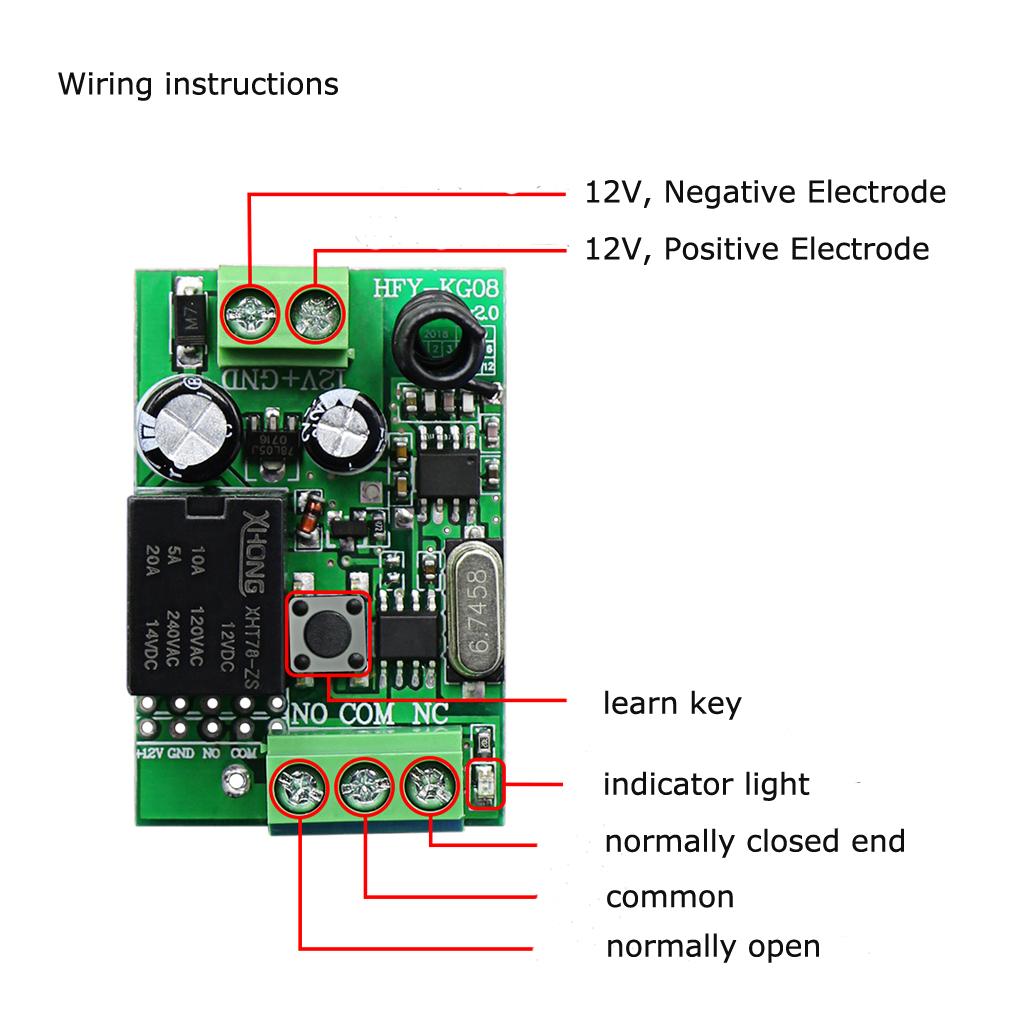

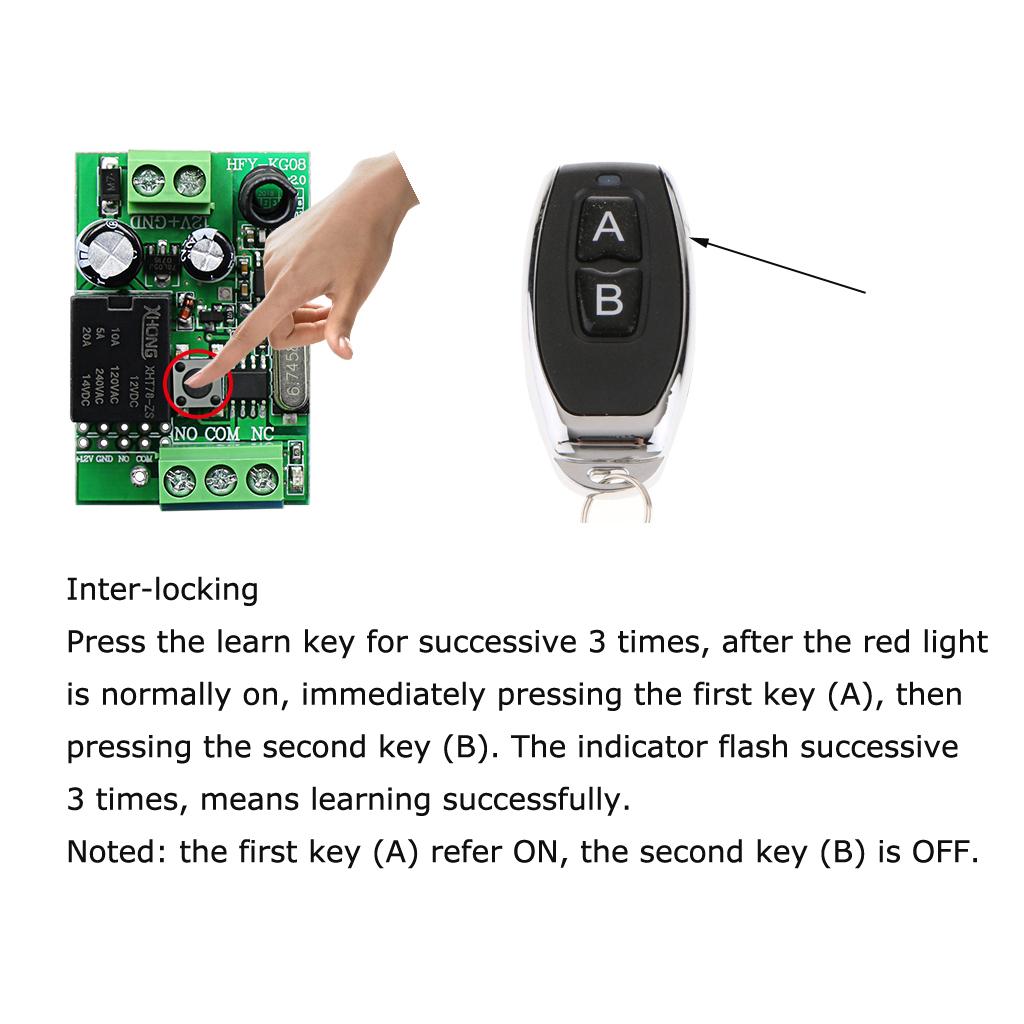

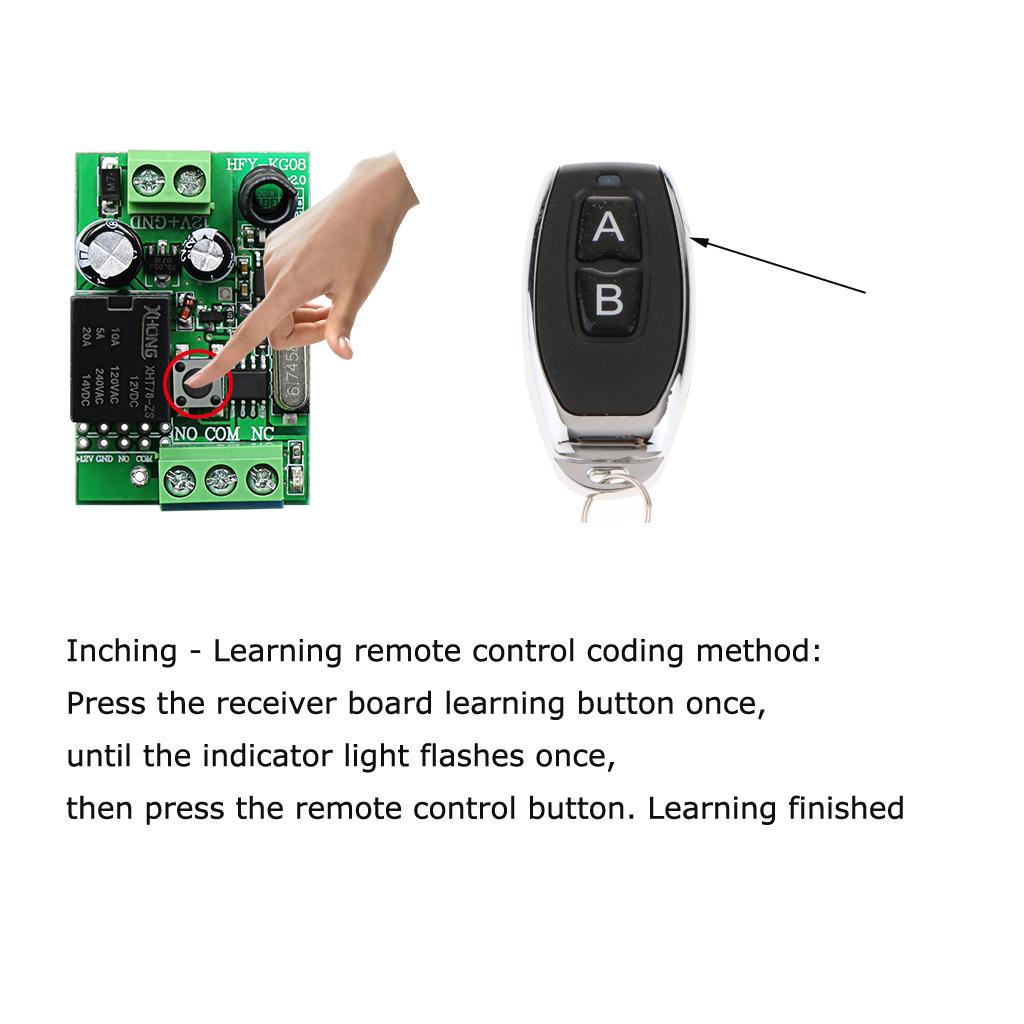

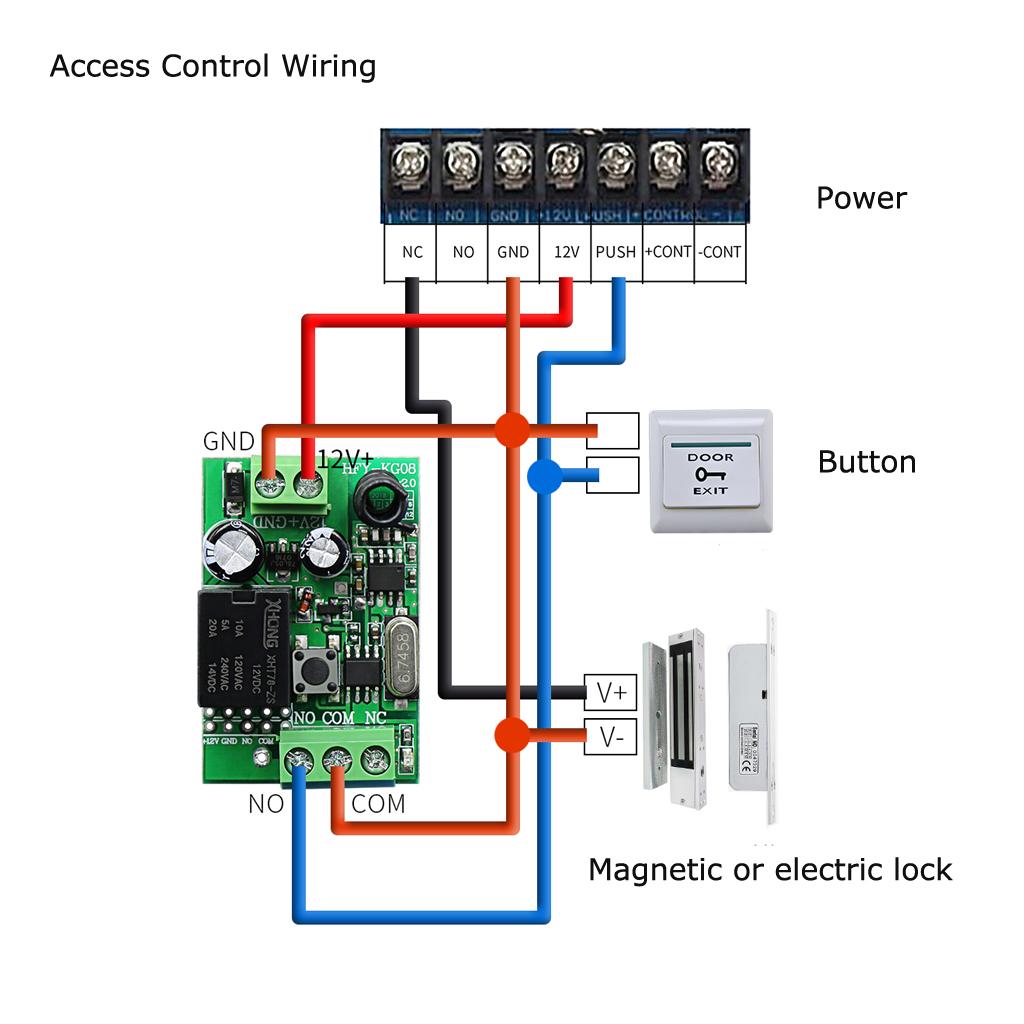

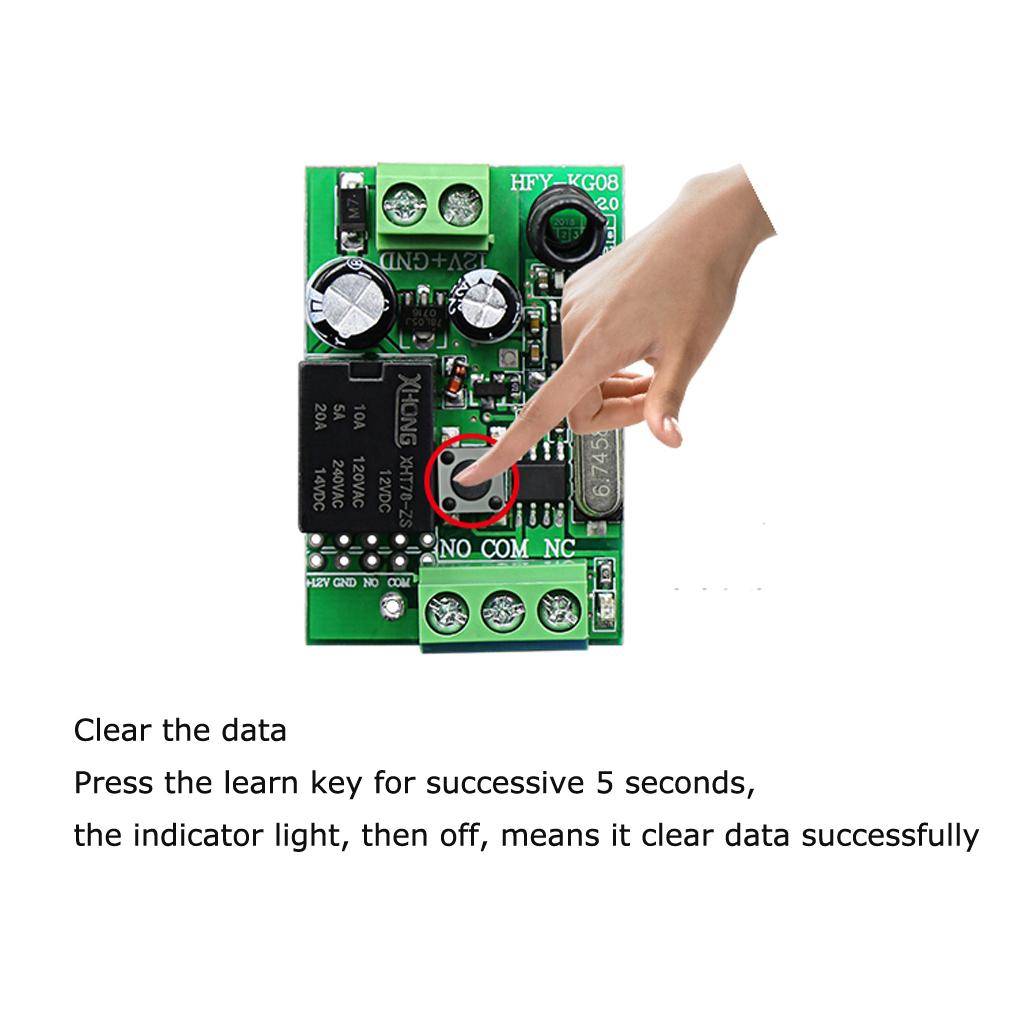

- Small and sturdy durable. - - Material: thicken burning-retardant ABS - Can at most store 16 different encoding. - Wiring: Fixed wiring posts (Please refer picture). - Receiver encoding type: learning code, Remote control encoding type: fixed code. - Remote control size: approx. 6x3x1cm / 2.4x1.2x0.4 inch, Receiver size: approx. 4.5x3.5x2cm / 1.8x1.4x0.8 inch - Output: switch output; normally open, common, normally closed end. - Operating Voltage: DC12V 10A - Frequency: 433MHZ - Remote control receiving distance: 50-80 meter - Receiving sensitivity: >-110dbm - Working temperature: -20 to 80 degree Celsius - Work mode - ng: Learning remote control coding method: press the receiver board learning button once, until the indicator light flashes once, then press the remote control button. Learning finished. - - -locking: Press the learn key for successive twice, the indicator light is normally on, immediately press the key on the remote control that you want to match. The indicator flash successive 3 times, means learning successfully. - -locking: Press the learn key for successive 3 times, after the red light is normally on, immediately pressing the first key (A), then pressing the second key (B). The indicator flash successive 3 times, means learning successfully. : the first key (A) refer ON, the second key (B) refer OFF. - the data: Press the learn key for successive 5 seconds, the indicator light, then off, means it clear data successfully. - Package Includes: - 1 Piece Remote Control - 1 Piece Receiver - (Battery not included) - Giá sản phẩm trên Tiki đã bao gồm thuế theo luật hiện hành. Bên cạnh đó, tuỳ vào loại sản phẩm, hình thức và địa chỉ giao hàng mà có thể phát sinh thêm chi phí khác như phí vận chuyển, phụ phí hàng cồng kềnh, thuế nhập khẩu (đối với đơn hàng giao từ nước ngoài có giá trị trên 1 triệu đồng).....
