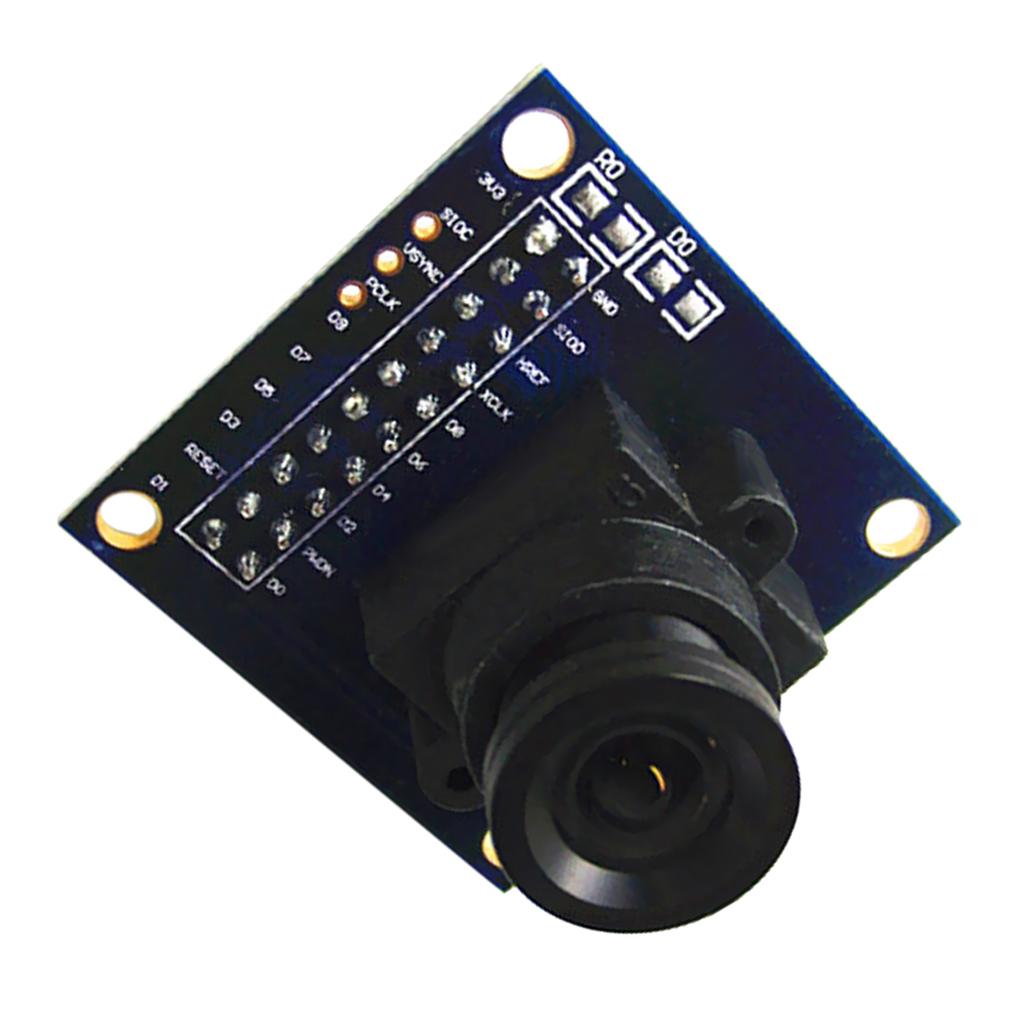

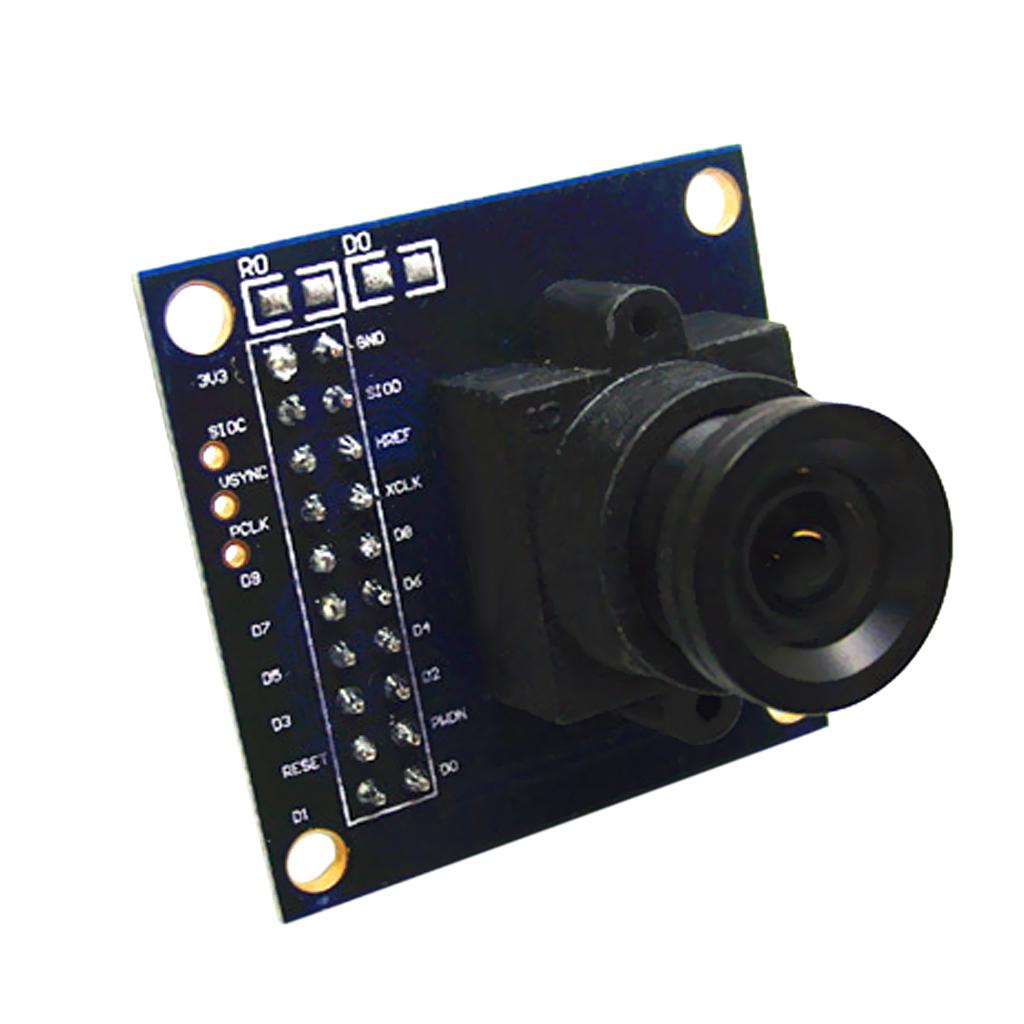

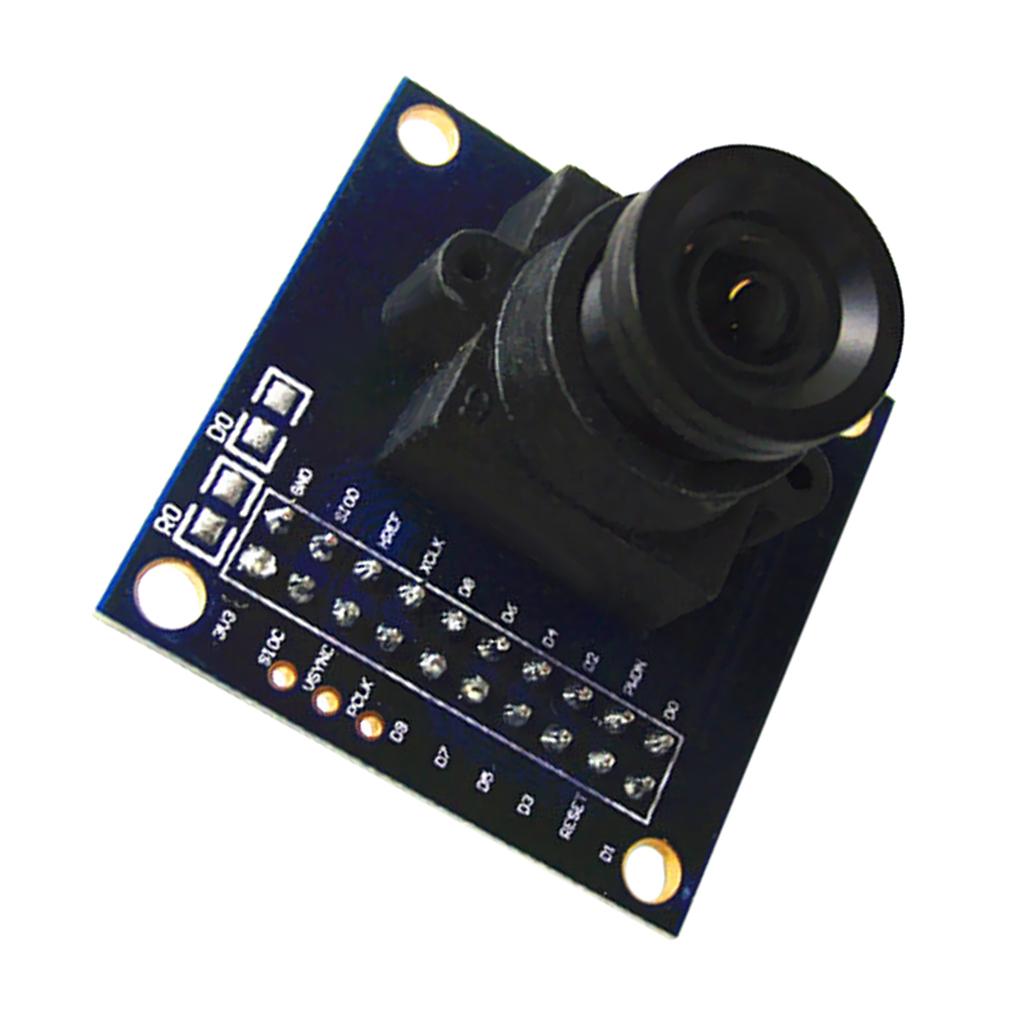

2Mp Megapixel OV2640 CMOS 1/4 inch Camera Module with JPEG Compression
- Size: Approx. 22*13*6mm / 0.87x0.51x0.24inch - High sensitivity for low-light applications - Low voltage for embedded applications - Standard SCCB interface, compatible with I2C interfa...

Magideal
@magidealĐánh giá
Theo Dõi
Nhận xét
Thương hiệu
OEM
Xuất xứ thương hiệu
China
Xuất xứ (Made in)
China
Sản phẩm có được bảo hành không?
Không
- Size: Approx. 22*13*6mm / 0.87x0.51x0.24inch - High sensitivity for low-light applications - Low voltage for embedded applications - Standard SCCB interface, compatible with I2C interface - RawRGB, RGB (GRB4: 2: 2, RGB565 / 555/444), YUV (4: 2: 2) and YCbCr (4: 2: 2) output format - UXGA, SXGA, VGA, QVGA, QQVGA, CIF, QCIF and up to 40x30 size - VarioPixel sub sampling mode - Automatic impact control functions include: automatic exposure control, Automatic gain control, automatic white balance, automatic elimination of light stripes, automatic black level calibration. Image quality control including color saturation, , gamma, sharpness ANTI_BLOOM - ISP with noise cancellation and dead pixel compensation - Support image scaling - Lens loss compensation - Saturation automatic adjustment - Edge enhancement automatic adjustment - Noise reduction automatic adjustment - Sensing array 1632x1232 - Maximum format UXGA IO - voltage 1.7V-3.3V - Analog voltage 2.5-3.0v (internal LDO to power supply 1.2V) - Power consumption TBD sleep<20μA - Temperature operation -30 ℃ to 70 ℃ - Stable working 0 ℃ to 50 ℃ - Output format ( ) - YUV / YCbCr4: 2: 2 RGB565 / 555/444 - GRB4: 2: 2 Raw RGB Data - Optical size 1/4" - Viewing angle 25 Degree - Maximum rate 15fps - SXGA sensitivity 1.3V / (Lux-sec ) - Signal to noise ratio 40dB - Dynamic range 50 dB - View mode Progressive electron exposure 1 line to 1247 lines - Pixel area 2.2 μm x 2.2 μm - Dark current 15 mV / s at 60 °C - - - Package Includes: - 1 Piece of Mini Camera Module - Giá sản phẩm trên Tiki đã bao gồm thuế theo luật hiện hành. Bên cạnh đó, tuỳ vào loại sản phẩm, hình thức và địa chỉ giao hàng mà có thể phát sinh thêm chi phí khác như phí vận chuyển, phụ phí hàng cồng kềnh, thuế nhập khẩu (đối với đơn hàng giao từ nước ngoài có giá trị trên 1 triệu đồng).....
