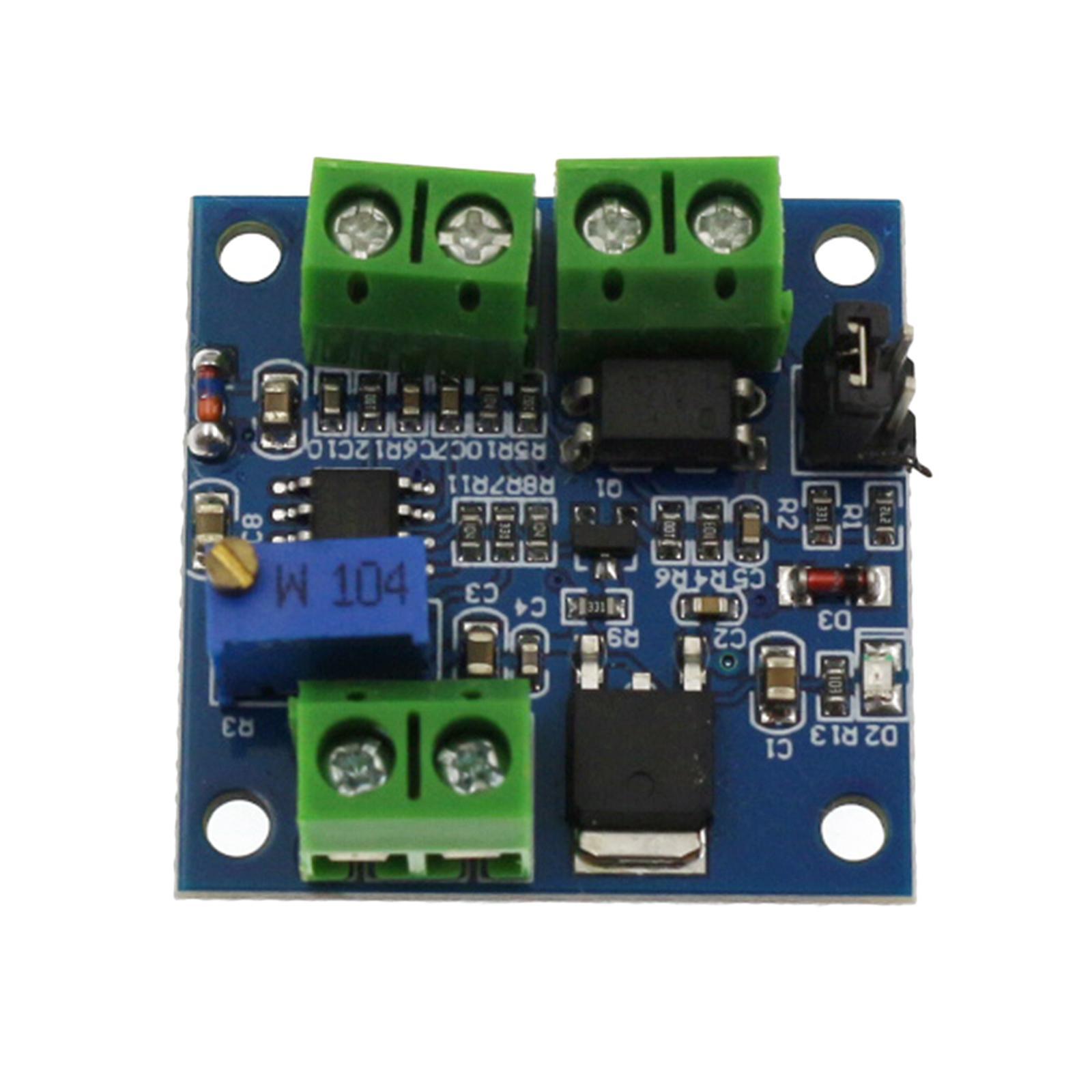

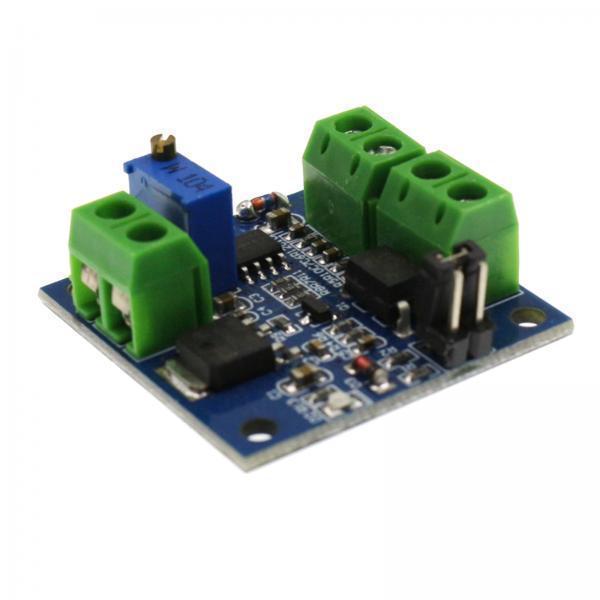

3-4pack Frequency to Voltage Converter Module 0-1KHZ to 0-10V Conversion Module

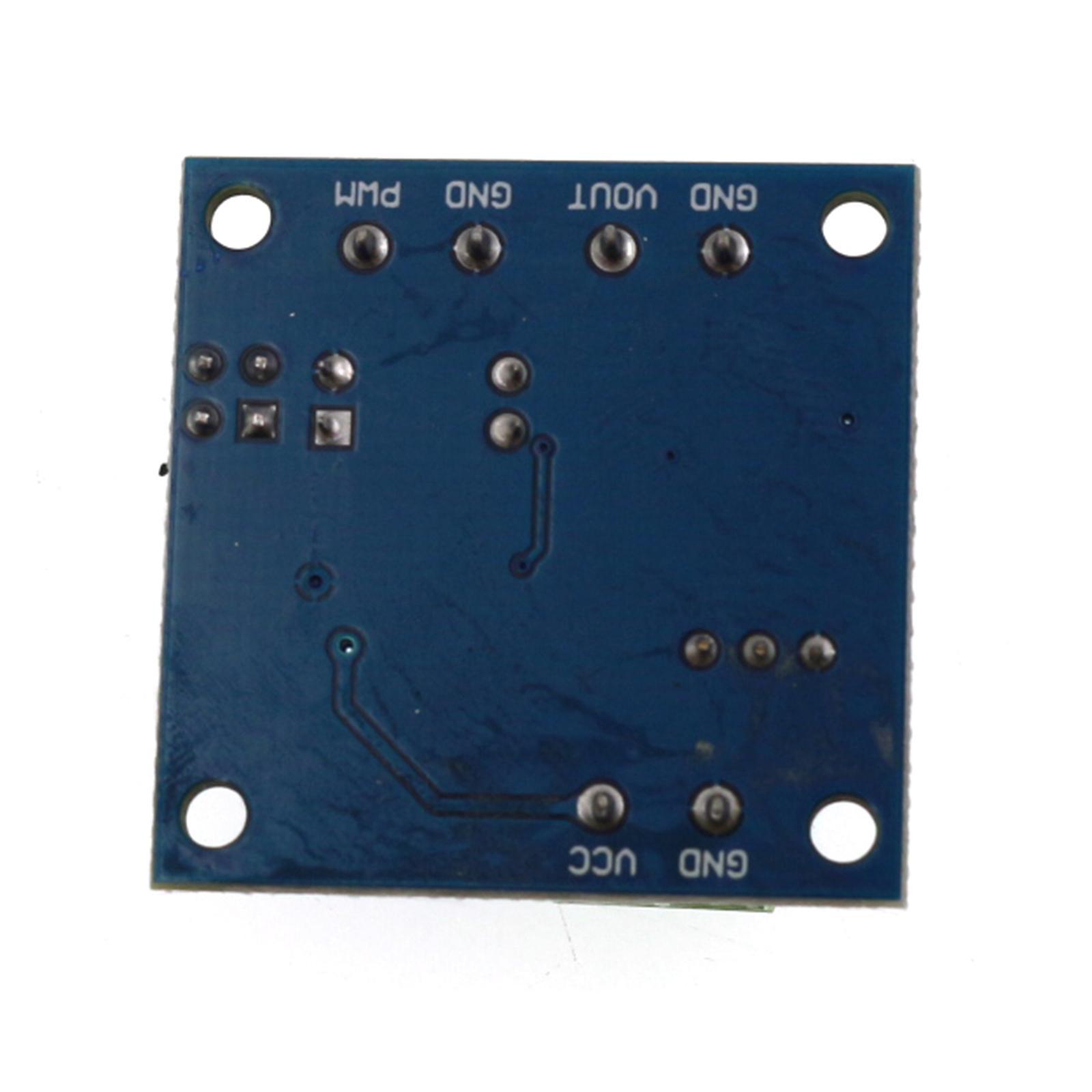

- Operating voltage: 13.5V-30V - Input frequency range: 0-1KHZ - Output voltage range: 0-10V - Size: Approx. 35mm x 33mm x 14mm - Note: The terminal part of the module is blue or green, sent in random. - - Instructions for use - VCC: Operating power supply - GND: Power ground - F: A input frequency pulse signal - GND: input ground - VOUT: output corresponding voltage - GND: Output ground; Common ground for modules - Connect the operating voltage to VCC and GND. Do not reverse it to avoid damaging the board and the device. - Connect the frequency pulse signal to F and there is a corresponding voltage output at VOUT. - Input and output corresponding relationship: 100HZ=1V, 1KHZ=10V. - If there is a deviation in the correspondence between the use, adjust the potentiometer on the board to calibrate. - The module accuracy is 1%, and it cannot be applied to fields which has high demanding of precision. - Input different frequency, output will correspond to certain voltage. - Input pulse level can be 5V, 12V, 24V, serial resistor not needed. But if you input signal frequency, the time should be more than 0.5s - If you want to use it with PLC, it supports NPN. Please make sure that there is GND wire - If you want to use it with encoder, it requires constant rotation of the encoder for more than 0.5s - Package Includes: - 1 Piece Frequency to Voltage Converter Module(Assorted Quatity for You Choose) - Giá sản phẩm trên Tiki đã bao gồm thuế theo luật hiện hành. Bên cạnh đó, tuỳ vào loại sản phẩm, hình thức và địa chỉ giao hàng mà có thể phát sinh thêm chi phí khác như phí vận chuyển, phụ phí hàng cồng kềnh, thuế nhập khẩu (đối với đơn hàng giao từ nước ngoài có giá trị trên 1 triệu đồng).....
