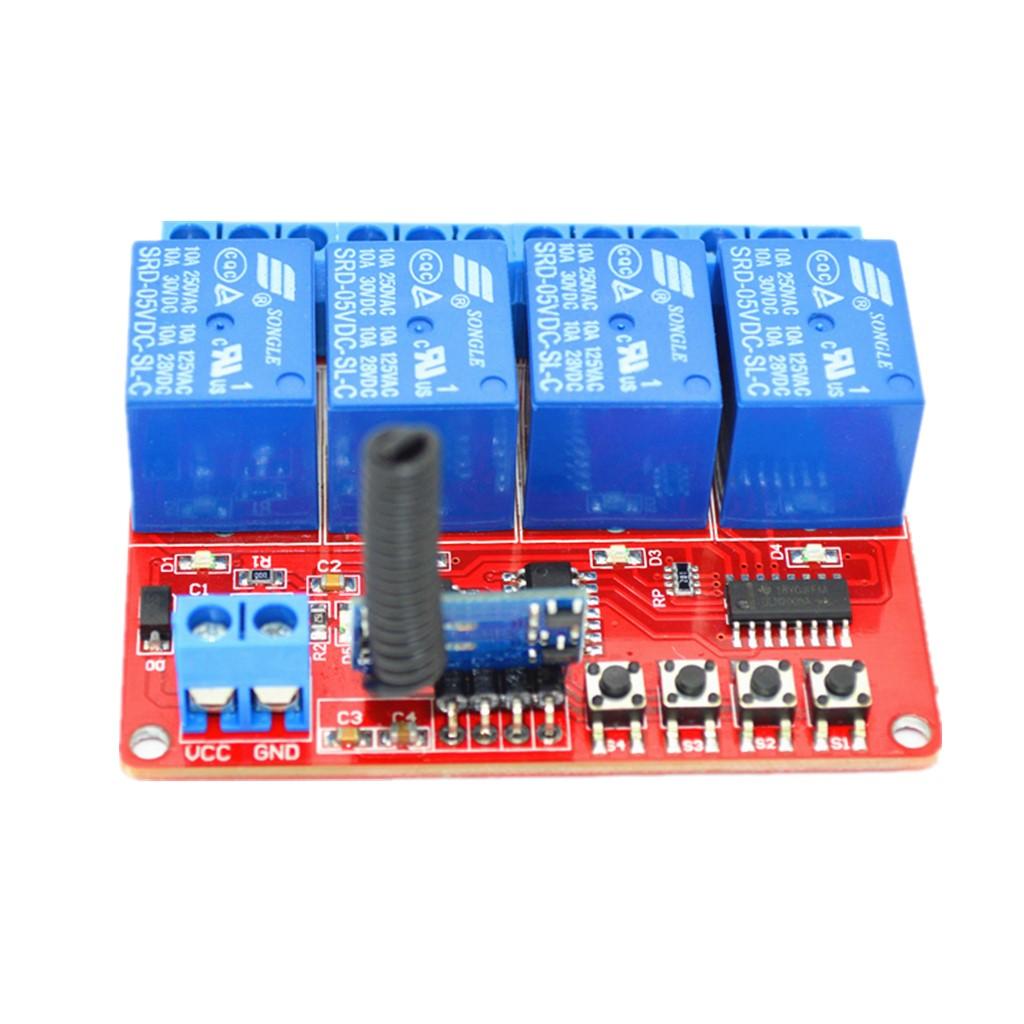

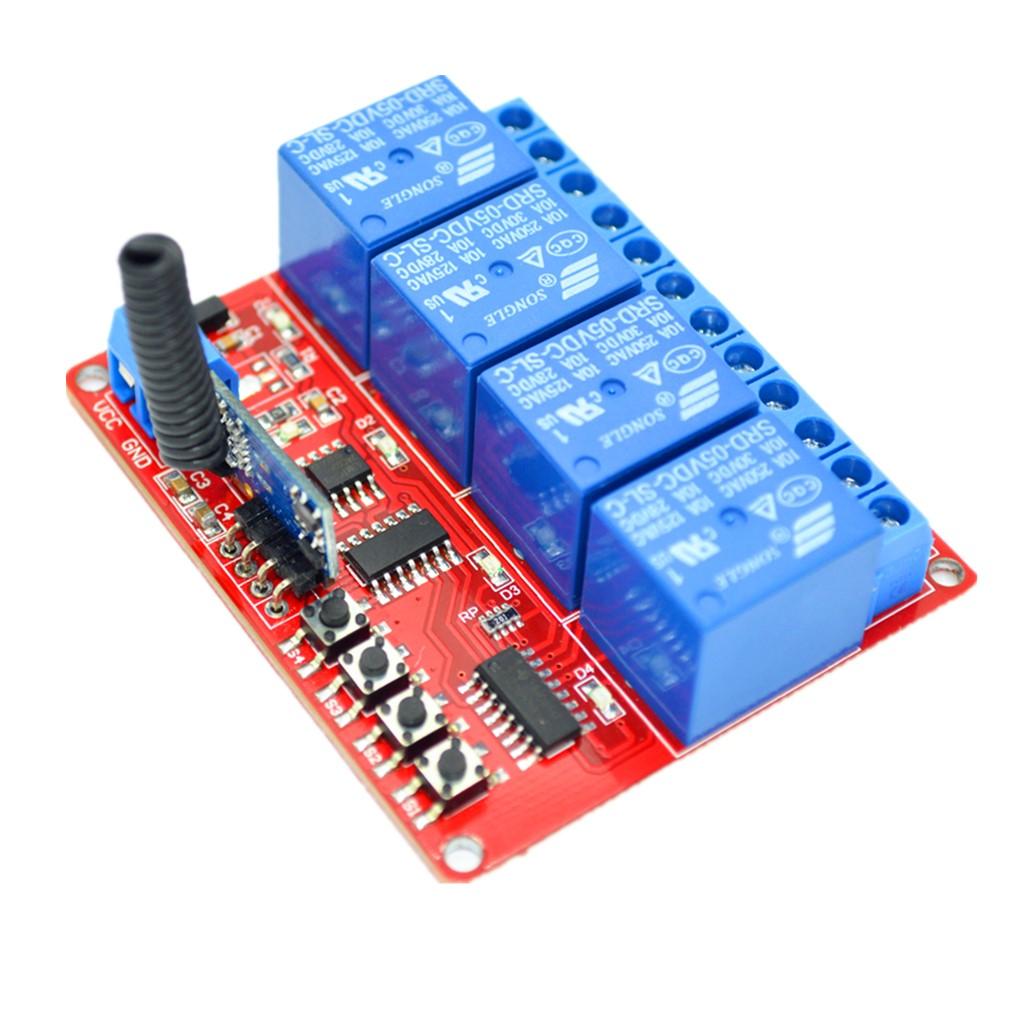

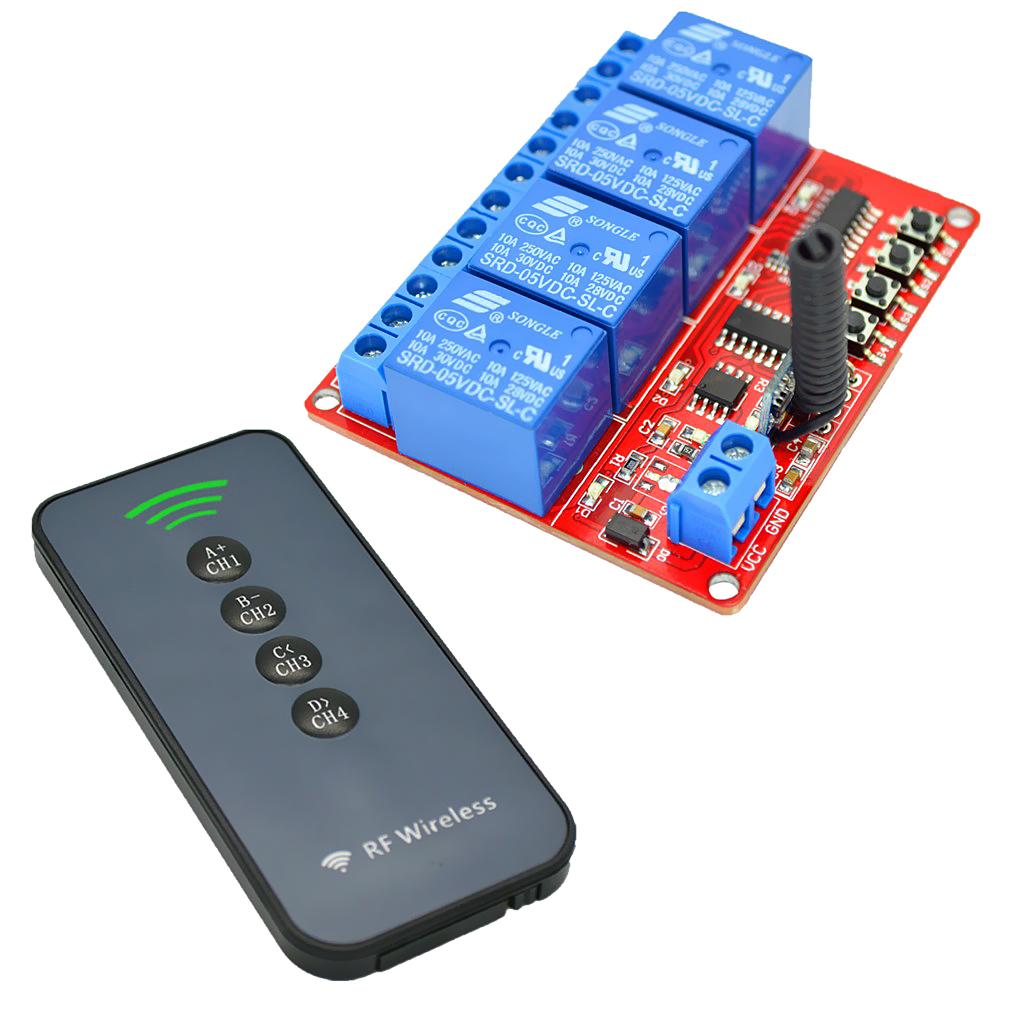

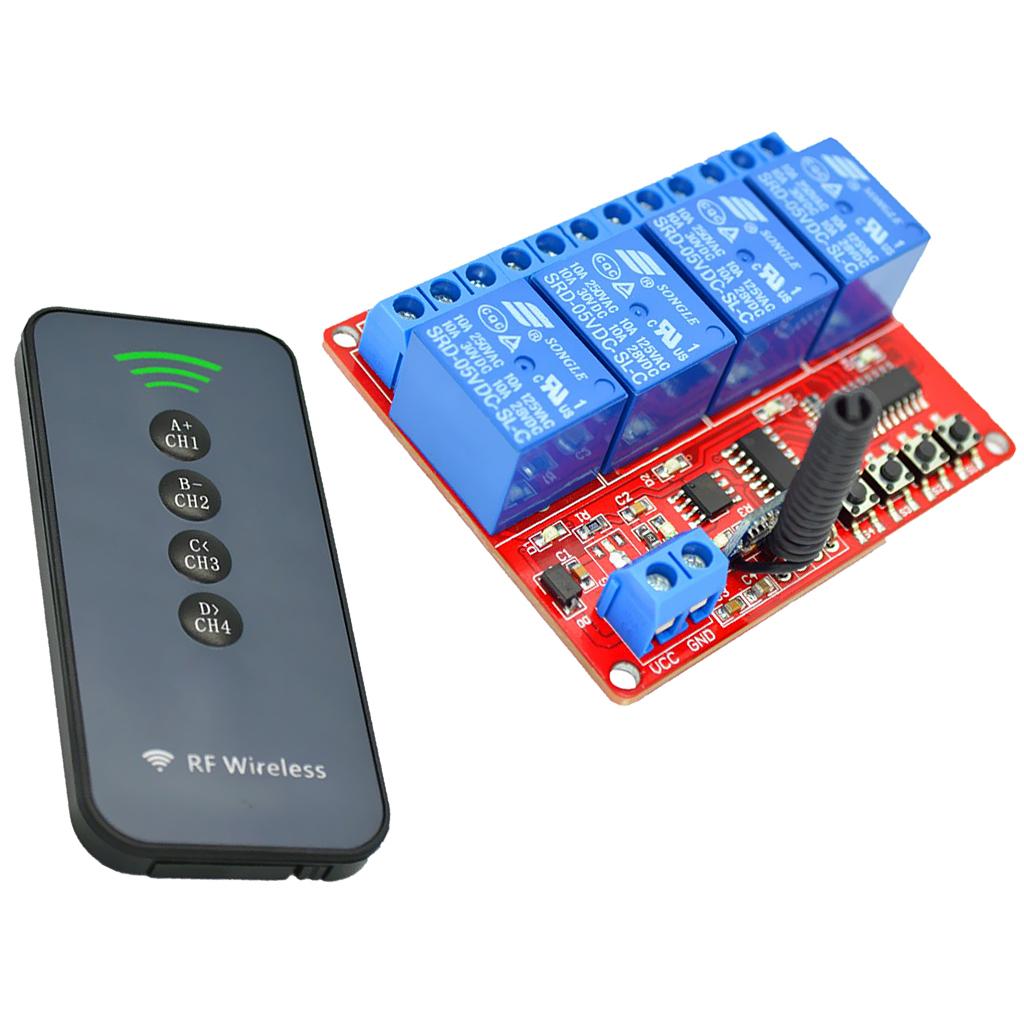

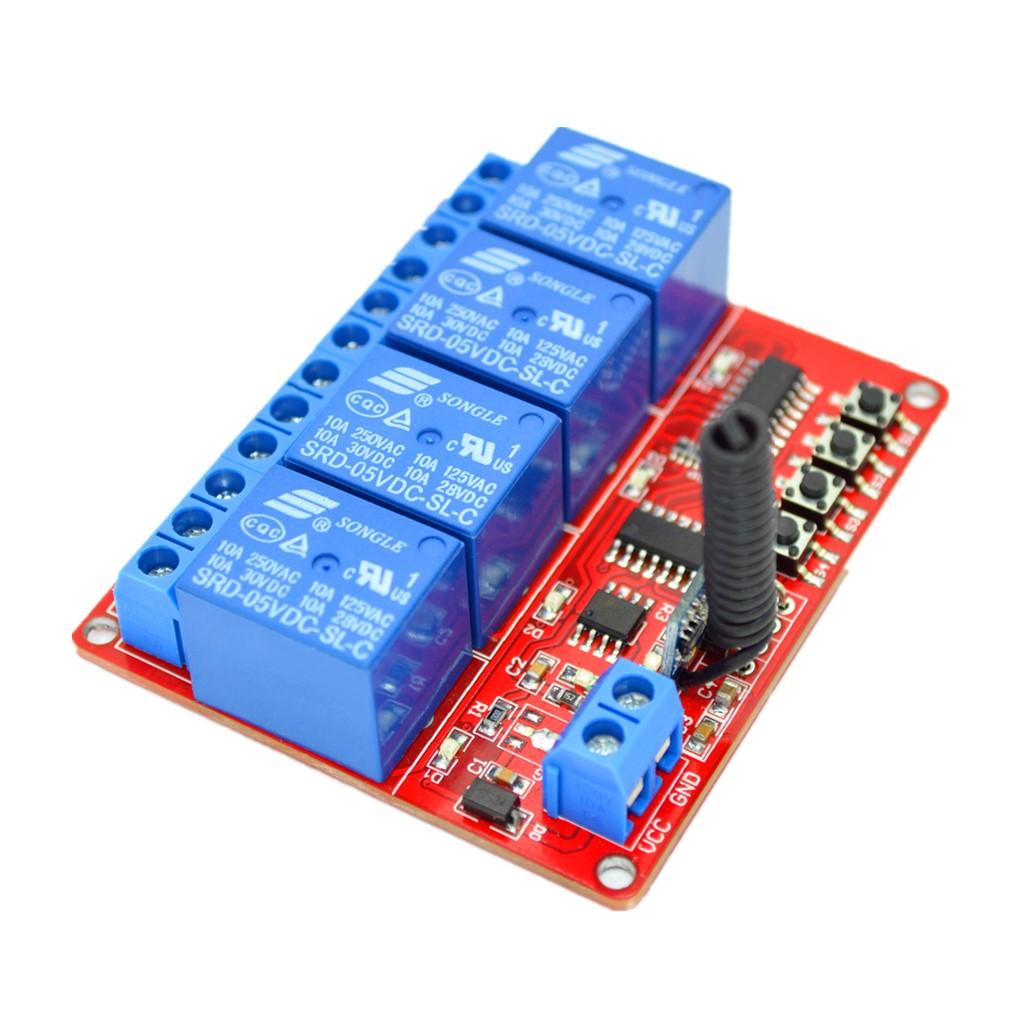

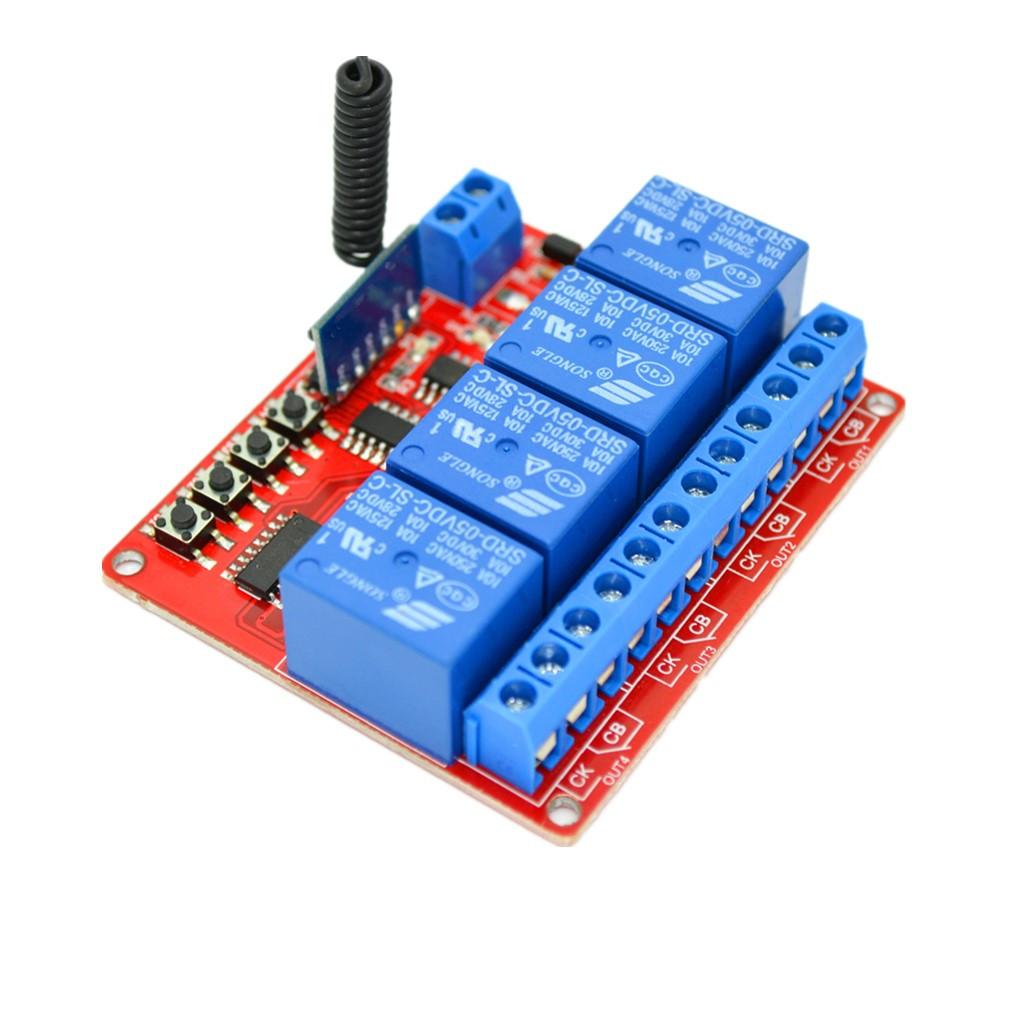

5V 4-Channel 433M 4-Button RF 30m Remote Control Switch + Receiver Module

- Specification: - Material: FR4 glass plate - Size: Approx. 65*56*22mm / 2.56x2.20x0.87inch - Receiving distance: between 15-30 meters (can through the wall) - Working mode: self-locking, jogging two kinds of work modules (four-way each road can be independently set to self-locking or jog) - Scope of application: water pump, light bar, lamp, home appliances, machinery and equipment, mechanical switch, roll gate, shutter curtain, etc. - Work instructions: D5 (power indicator), D1-D4 (relay switch indicator), D6 (learning indicator) - (COM), normally closed (CB) (Note: normally closed and common in the normal state is connected, so that the output of the module is used as a switch; The switch is often used when the closed end is usually not used, only the normally open and common) - First, learning methods: - Press the learning button S1, immediately release, immediately press and hold S1 (faster), learning light D6 flash 1, and then release the S1 key; hold the need to learn the remote control button, learning instructions Light flash 2, to prove the first road to study success - Other three way to learn the same way, 2 Road 3 Road 4, respectively, corresponding to the keys S2, S3, S4; - Second, the wireless function to clear the method: - Power off state, hold down S1-S4 any one learning button, and then power, learning light flashing 4, the release button that the module 4-way all clear the success - Third, Self-locking and jogging function conversion instructions (4-way each is set independently, the same way) - Jog: power state, press and hold the learning button after the power, learning indicator D6 flash 2, the release button, this time set to jog output. - Self-locking: power state, press the learning button after power, learning indicator D6 flash 3, the release button, this time set to self-locking lock output. Package Includes: 1x Wireless Switch Module 1x Remote controller Giá sản phẩm trên Tiki đã bao gồm thuế theo luật hiện hành. Bên cạnh đó, tuỳ vào loại sản phẩm, hình thức và địa chỉ giao hàng mà có thể phát sinh thêm chi phí khác như phí vận chuyển, phụ phí hàng cồng kềnh, thuế nhập khẩu (đối với đơn hàng giao từ nước ngoài có giá trị trên 1 triệu đồng).....
