Bộ Điều Khiển Sạc Năng Lượng Mặt Trời Rbl-60A

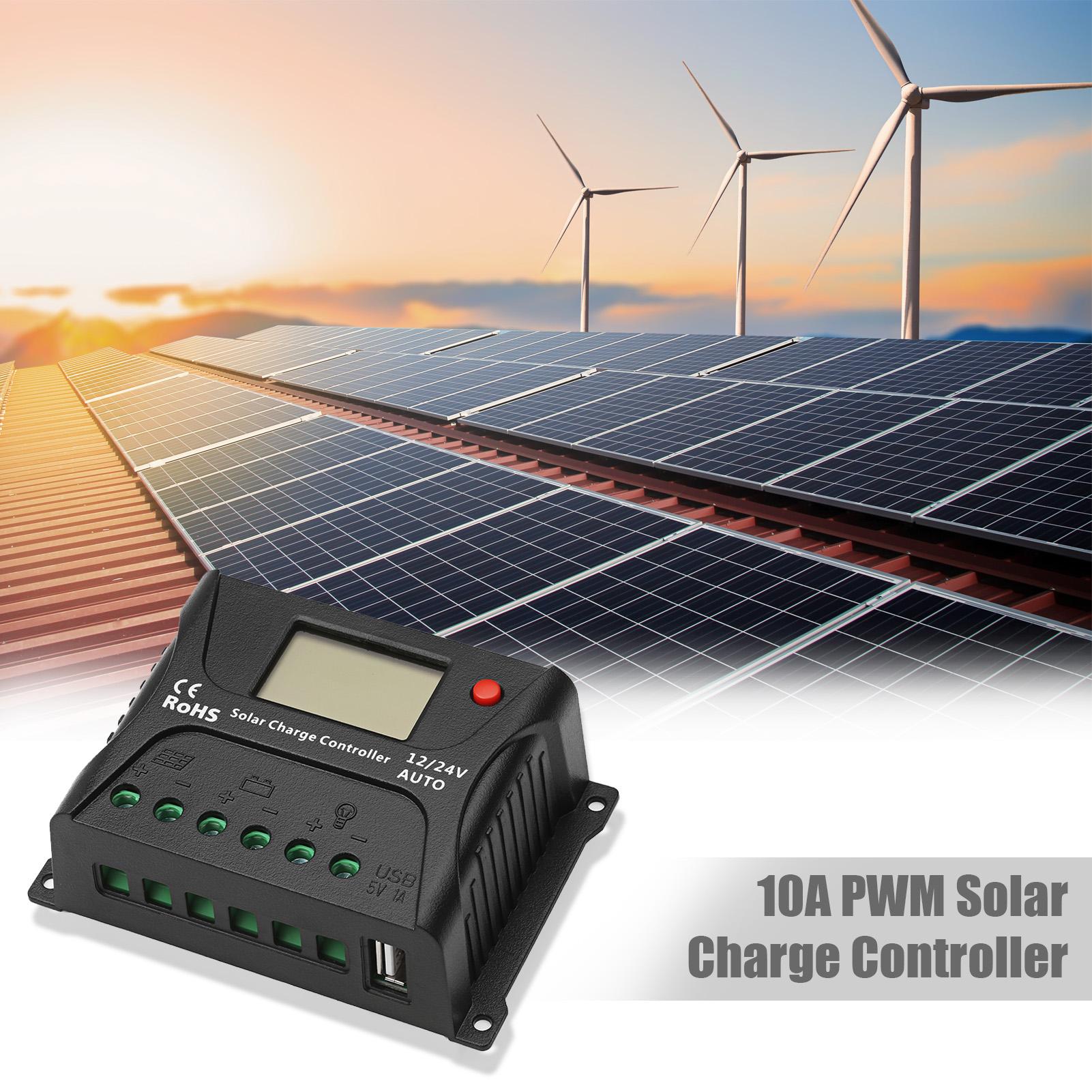

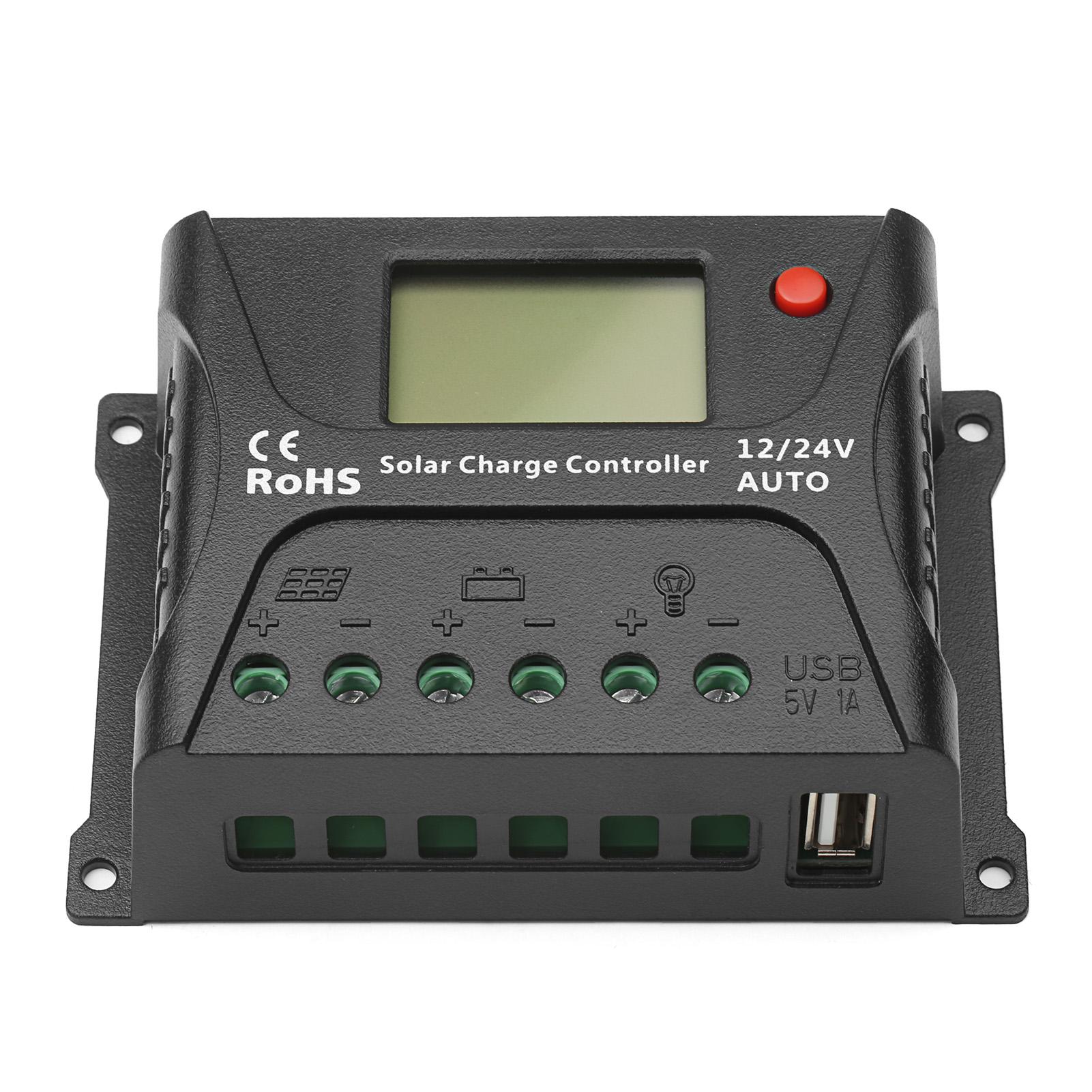

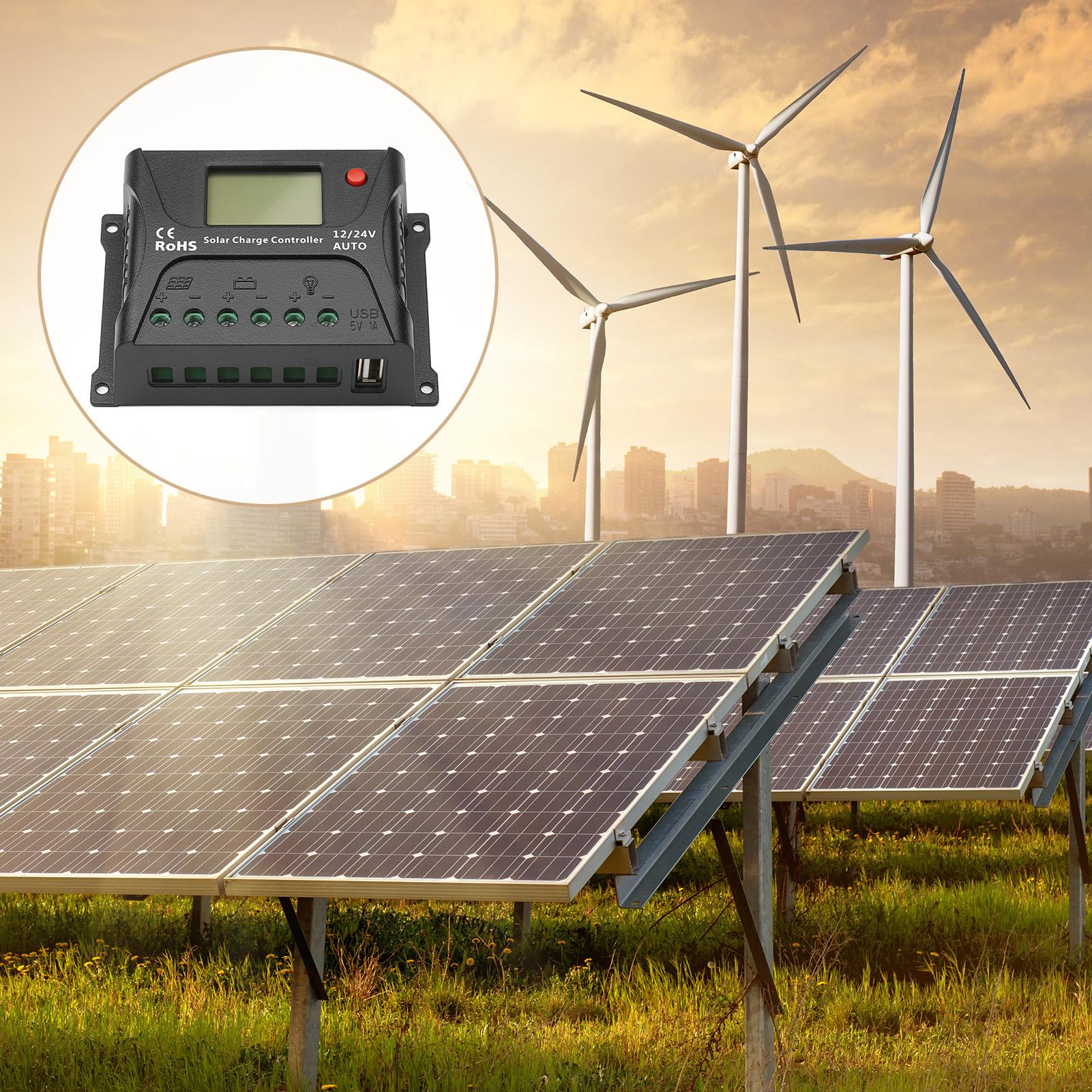

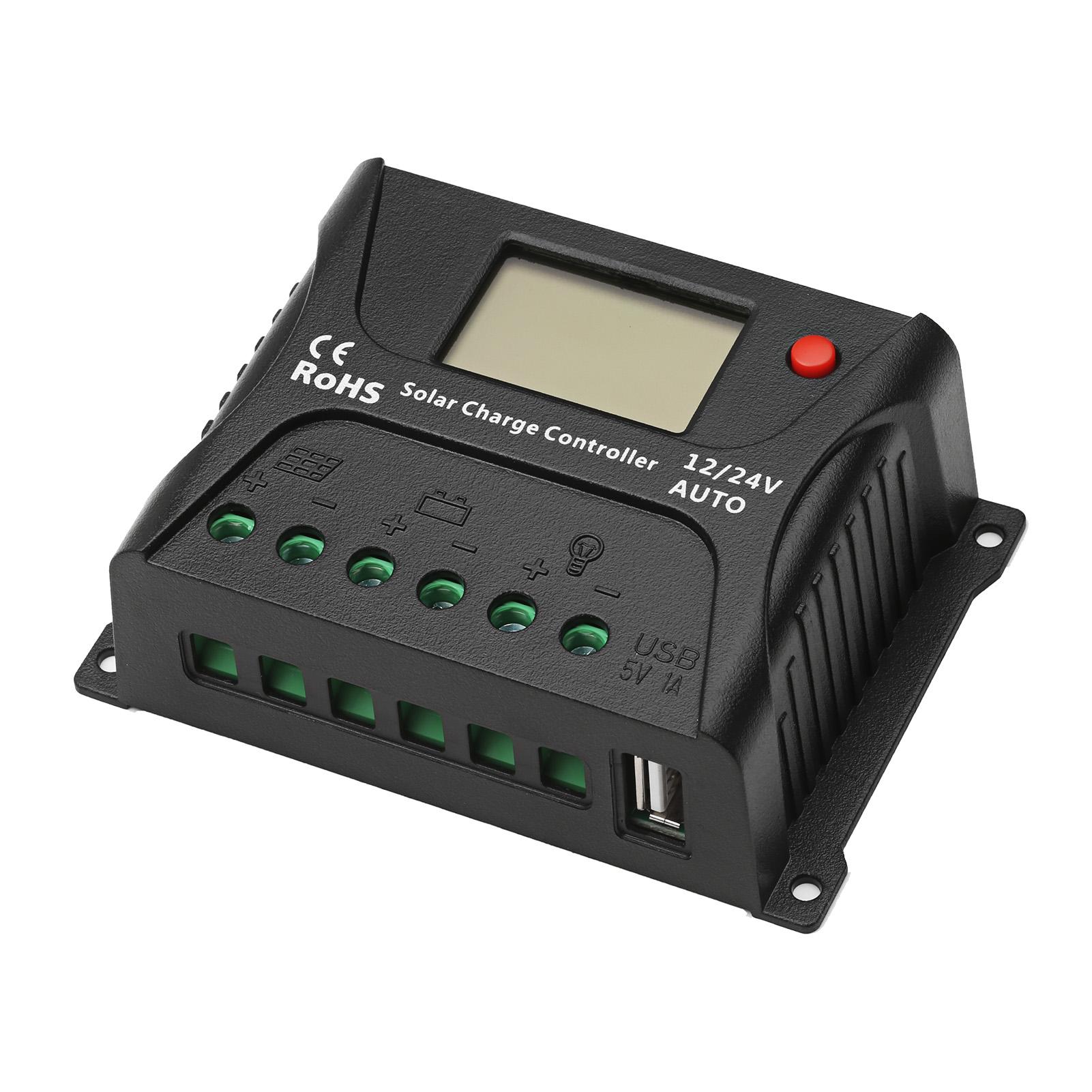

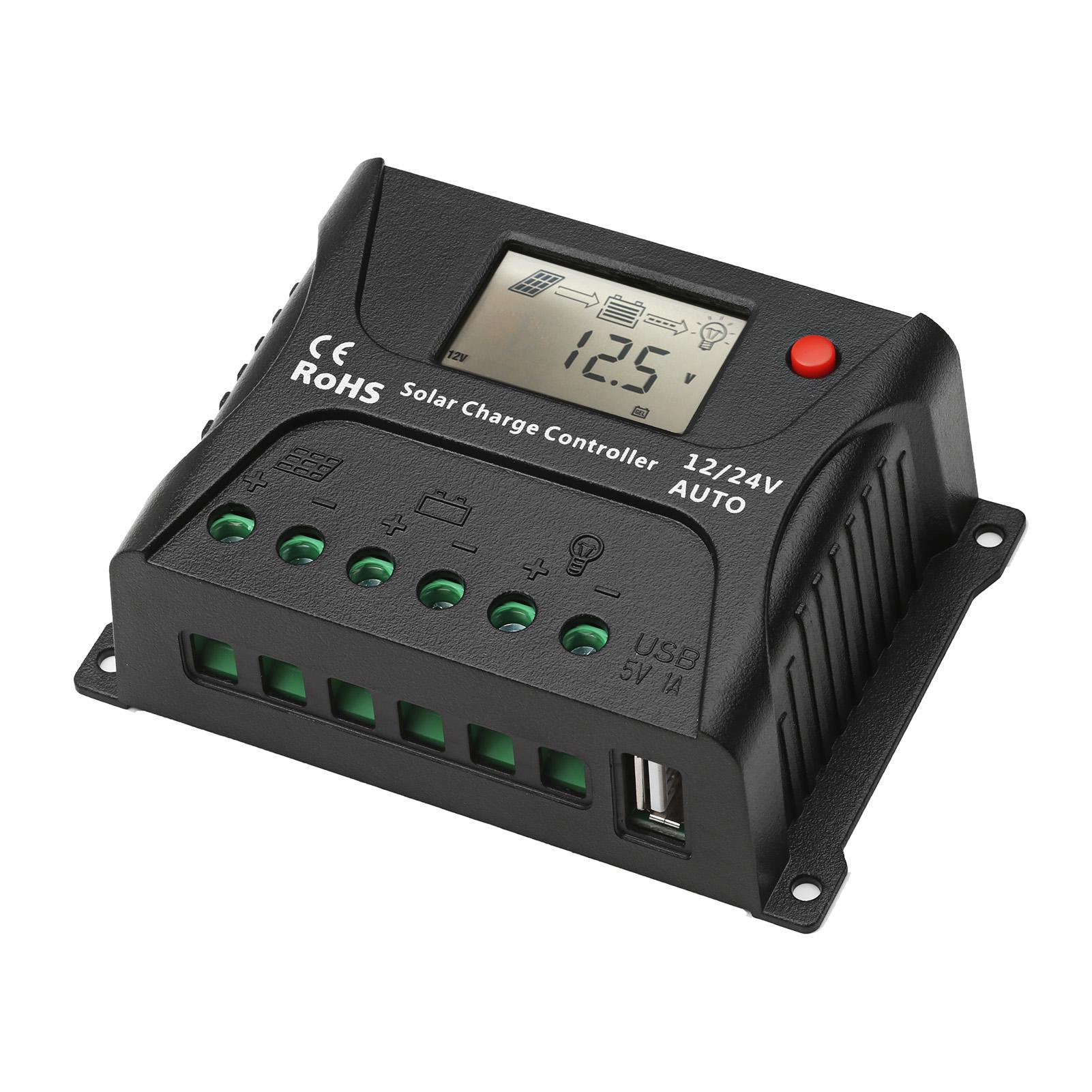

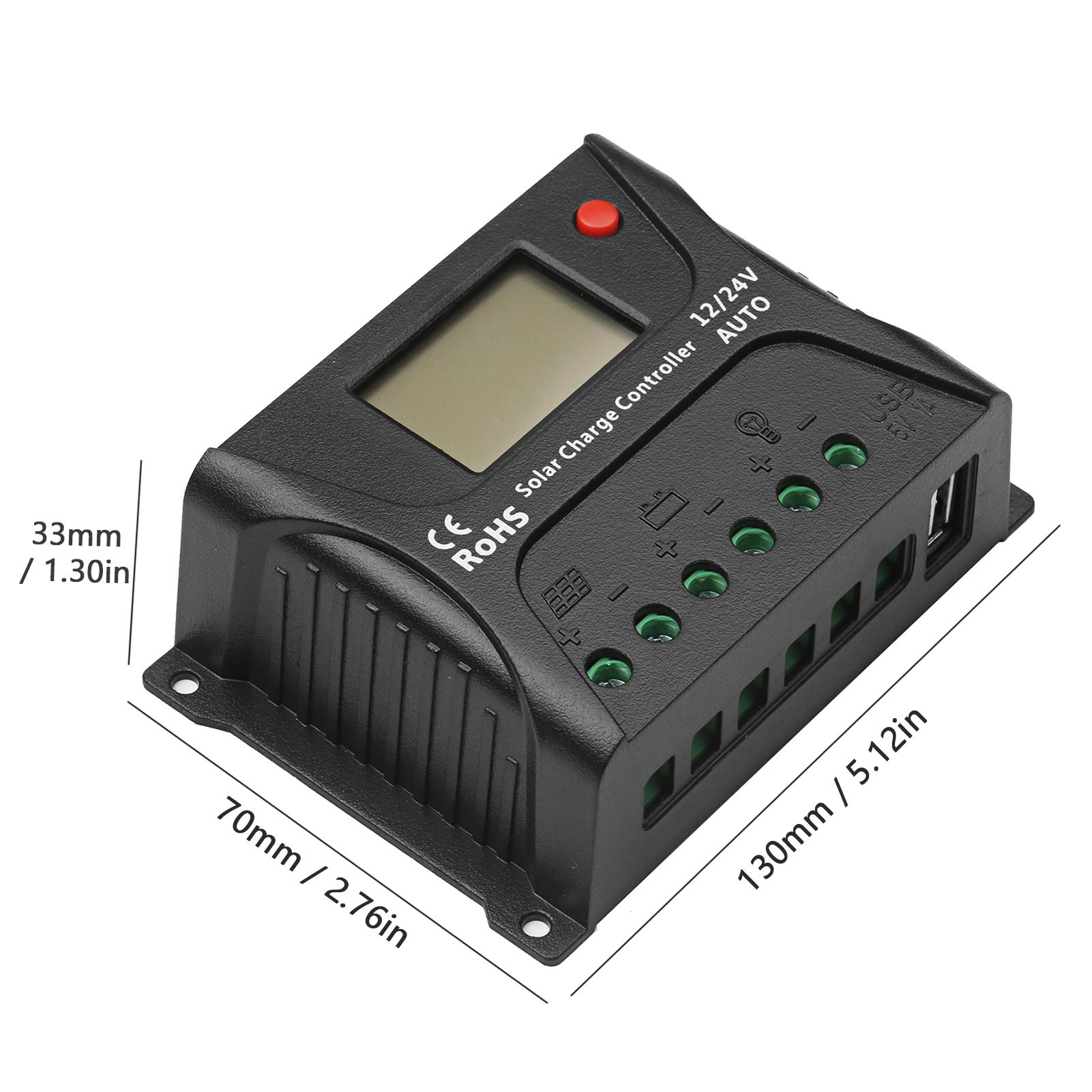

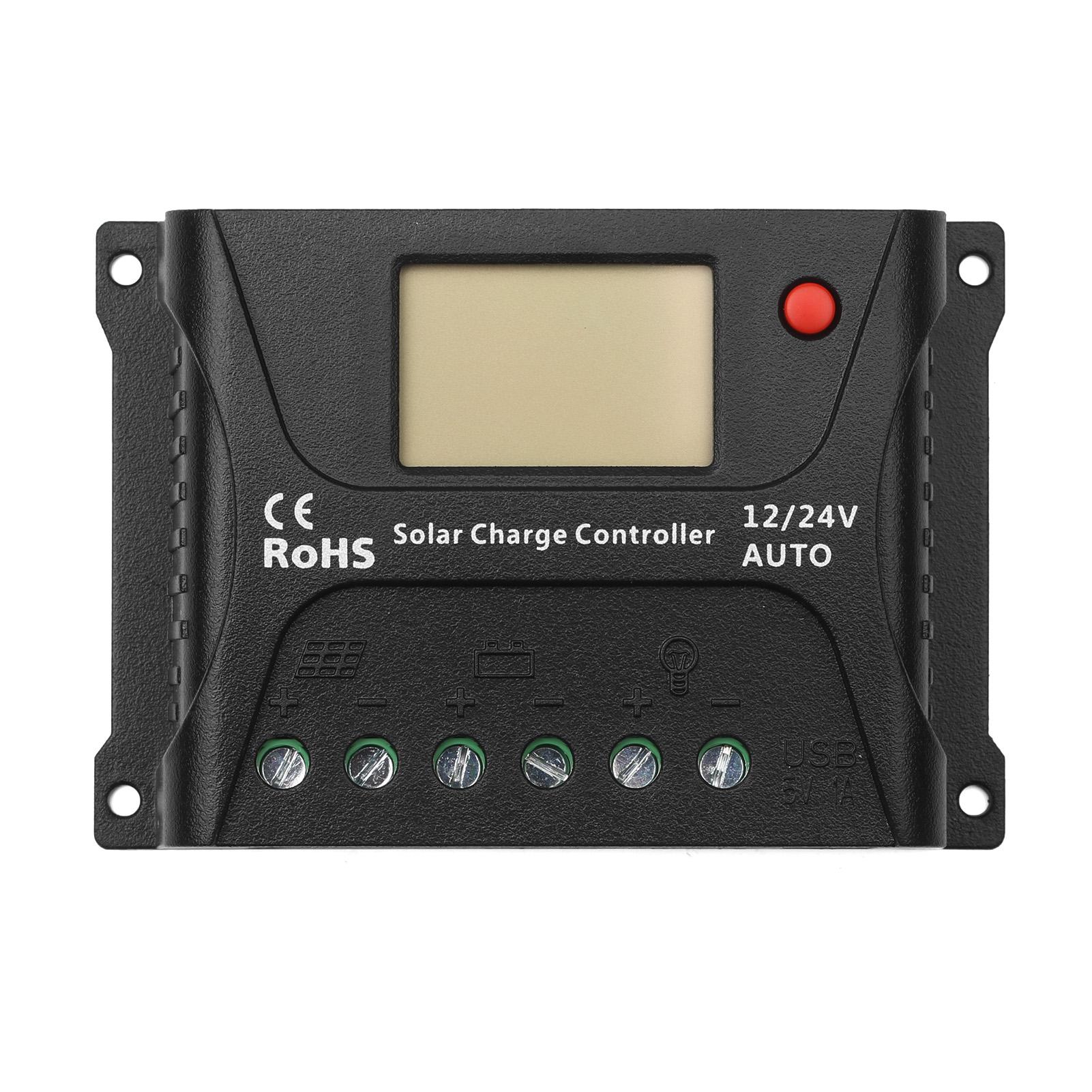

The PWM Solar Charge Controller support 12V/ 24V automatic identification for system voltage. It has 5 working modes and is suitable for both home and commercial use. Features: (for 10A/20A)Automatic identification for system voltage: 12V/ 24V.5 working modes (light control/ light control + time control/ manual mode/ debugging mode/ normal on) facilitate the product's application to different types of load, such as streets lights and monitoring devices.An upgraded 3-stage PWM charging algorithm is adopted. Application of an equalizing charge to the battery periodically or when over discharged, can effectively prevent the battery from non-equalization and sulfration, thus extending its service life.With temperation compensation employed, charging parameters can be automatically adjusted.PV input voltage range＜55V, which is suitable for various specifications of sloar panel, applicable to both home and commercial use.Multiple protections provide safe use, such as over-charge, over-discharge, over-load protection, as well as short circuit and reverse-connection protection.By virtue of an advanced load starting method, large-capacitance loads can be started smoothly.Provides a dot matrix graphic LCD screen and a human-machine interface with operating key. And the user-friendly design of browser and dynamic interfaces ensure convenient and intuitive operations.Boosting an industrial grade design, the product can function well in tough conditions. Note: Please read the manual carefully before using. Specifications:System Current: 10A/ 20A/ 30A/ 40A/ 50A/ 60A (Optional)Color: BlackMaterial: Aluminum AlloyDisplay: LCD DisplaySystem Voltage: 12V/ 24V AutoOperating Temperature: -25℃~+55℃IP Grade: IP30Item Size: 130 * 70 * 33mm / 5.12 * 2.76 * 1.30in (10A); 130 * 75 * 35mm / 5.12 * 2.95 * 1.38in (20A); 164 * 105 * 40mm / 6.46 * 4.13 * 1.57in (30A/40A); 189 * 122 * 52mm / 7.44 * 4.80 * 2.05in (50A/60A)Item Weight: 93g / 3.31oz (10A); 152g / 5.36oz (20A); 396g / 13.96oz (30A/40A); 660g / 23.28oz (50A/60A)Package Size: 12 * 8 * 4.3cm / 4.72 * 3.15 * 1.69in (10A); 14.5 * 8.5 * 4.3cm / 5.71 * 3.35 * 1.69in (20A); 18 * 11 * 5.3cm / 7.09 * 4.33 * 2.09in (30A/40A); 20.5 * 13.5 * 6cm / 8.07 * 5.31 * 2.36in (50A/60A)Package Weight: 128g / 4.52oz (10A); 194g / 6.84oz (20A); 466g / 16.42oz (30A/40A); 750g / 26.45oz (50A/60A) --10A/ 20A:No-load Loss: ＜10mA/12V; ＜12mA/24VSolar Energy Input Voltage: ＜55VVoltage at the Battery End: ＜35VBattery Type: Gel (GEL)Overvoltage Protection: 17.0V; x2/24VEqualizing Charging Voltage: 14.6V; x2/24VBoost Charging Voltage: 14.4V; x2/24VFloat Charging Voltage: 13.8V; x2/24VCharging Recovery Voltage: 13.2V; x2/24VOver-discharge Recovery Voltage: 12.6V; x2/24VOver-discharge Voltage: 11.1V; x2/24VEqualizing Charging Interval: 30 DaysEqualizing Charging Time: 1HBoost Charging Time: 2HTemperature Compensation: -3.0mv/℃/2VLight-control Voltage: Light-control on 5V; light-control off 6V; x2/24VLight-control Judgment Time: 1minProtection: Over-temperature, overload and short-circuit protection; short-circuit and reverse-connection protection for solar panel --30A/40A/50A/60A:Rated Power: 12V/450W, 24V/900W (30A); 12V/600W, 24V/1200W (40A); 12V/750W, 24V/1500W (50A); 12V/900W, 24V/1800W (60A)No-load Loss: ＜13mA/12V; ＜15mA/24VSolar Energy Input Voltage: ＜55VVoltage at the Battery End: ＜34VBattery Type: Flooded (FLD, default), Sealed (SLD), Gel (GEL), Lithium (LI)Overvoltage Protection: 16.0V; x2/24VEqualizing Charging Voltage: 14.8V (FLD), 14.6V (SLD); x2/24VBoost Charging Voltage: 14.6V (FLD), 14.4V (SLD), 14.2V (GEL), 14.4V (LI); x2/24VFloat Charging Voltage: 13.8V (FLD), 13.8V (SLD), 13.8V (GEL); x2/24VCharging Recovery Voltage: 13.2V; x2/24VOver-discharge Recovery Voltage: 12.5V (settable with the keys); x2/24VOver-discharge Voltage: 11.0V (settable with the keys); x2/24VEqualizing Charging Interval: 30 Days (FLD/ SLD)Equalizing Charging Time: 1H (FLD/ SLD)Boost Charging Time: 2H (FLD/ SLD/ GEL)Temperature Compensation: -3.0mv/℃/2V (FLD/ SLD/ GEL)Light-control Voltage: Light-control on 5V; light-control off 6V; x2/24VLight-control Judgment Time: 10minProtection: Supprot Multiple Protections Package List:1 * PWM Solar Charge Controller1 * User Manual (English)Giá sản phẩm trên Tiki đã bao gồm thuế theo luật hiện hành. Bên cạnh đó, tuỳ vào loại sản phẩm, hình thức và địa chỉ giao hàng mà có thể phát sinh thêm chi phí khác như phí vận chuyển, phụ phí hàng cồng kềnh, thuế nhập khẩu (đối với đơn hàng giao từ nước ngoài có giá trị trên 1 triệu đồng).....
