Bộ Điều Khiển Sạc Pin Năng Lượng Mặt Trời Pwm 6v 12v 10a

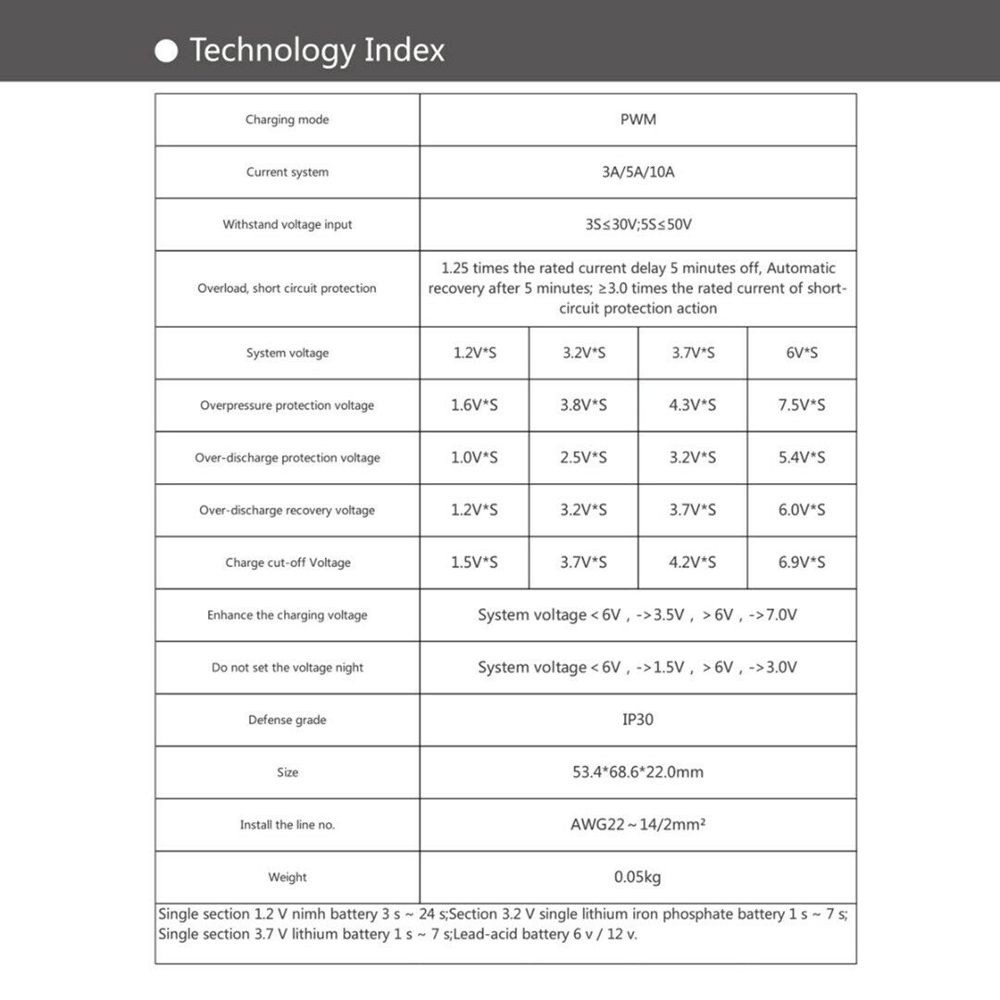

Size: As the Pictures shown Power Range: 60W(6V), 120W(12V) Quantity: 1 Pc Material: Plastic Color: As the Pictures shown Output Current: 10A Working Temperature: -40~55 System Voltage: 6V, 12V Disharge Loop Drop: 0.1V Overload, Short Circuit Protection: Yes Package I
cleoes.vn
@cleoes.vnĐánh giá
Theo Dõi
Nhận xét
Thương hiệu
No Brand
Size: As the Pictures shown Power Range: 60W(6V), 120W(12V) Quantity: 1 Pc Material: Plastic Color: As the Pictures shown Output Current: 10A Working Temperature: -40~55 System Voltage: 6V, 12V Disharge Loop Drop: 0.1V Overload, Short Circuit Protection: Yes Package Included:1* Auto Solar Charge Controller ,1*Manual Protection Degree: IP30 No-load loss: 5mA Charge Loop Drop: 0.2V Install and Method of Using: Firstly, determine the controller output mode , the device factory default setting is normally open mode .if you need to set for the pure light control mode or light control plus timing mode, you need to open the enclosure through set dip switch, changing the discharge mode When the key set "on" is 1, the key set "off" is 0, normally open, pure light control Connecting the battery first. if correctly connected, battery indicator will light Connecting the wire of the solar panel second. if the connection is correct, the indicator light of chargewill be on or flash 10 seconds later after laying outside under the sun. otherwise, please check the connection Making sure the solar energy panel is laid outdoors under the sunshine Connecting the load at the end. if inversely connected, the led lamp may be damaged Please pay attention to the anode and the cathode to avoid the inverse connection Note: Please allow minor error due to manual measurement. Due to the difference between different monitors, the picture may not reflect the actual color of the item.
