Bộ điều khiển tốc độ quạt DC 12V 24V 48V 5A 2 3 4 dây

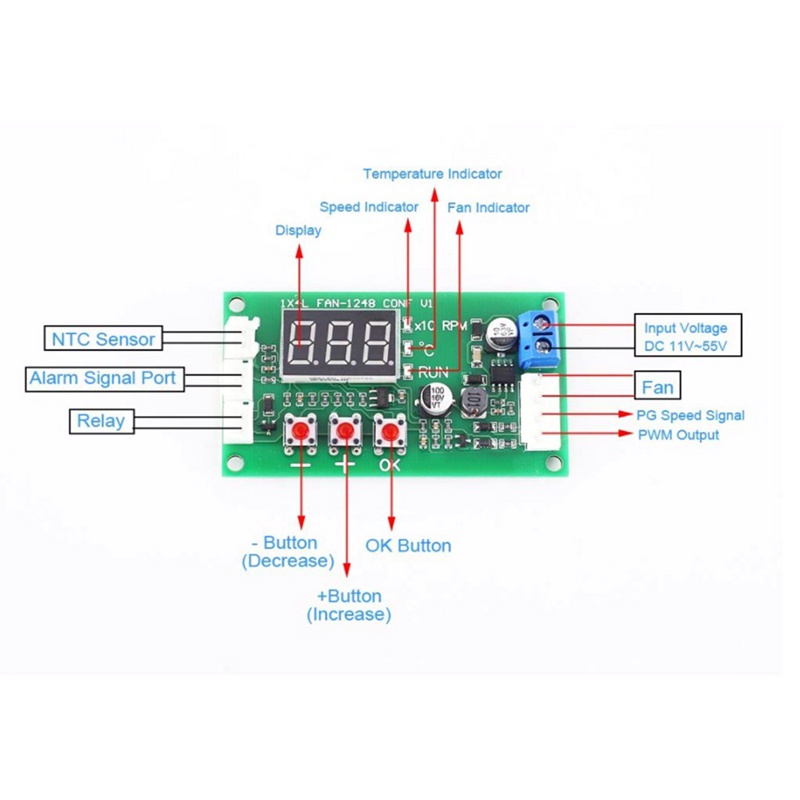

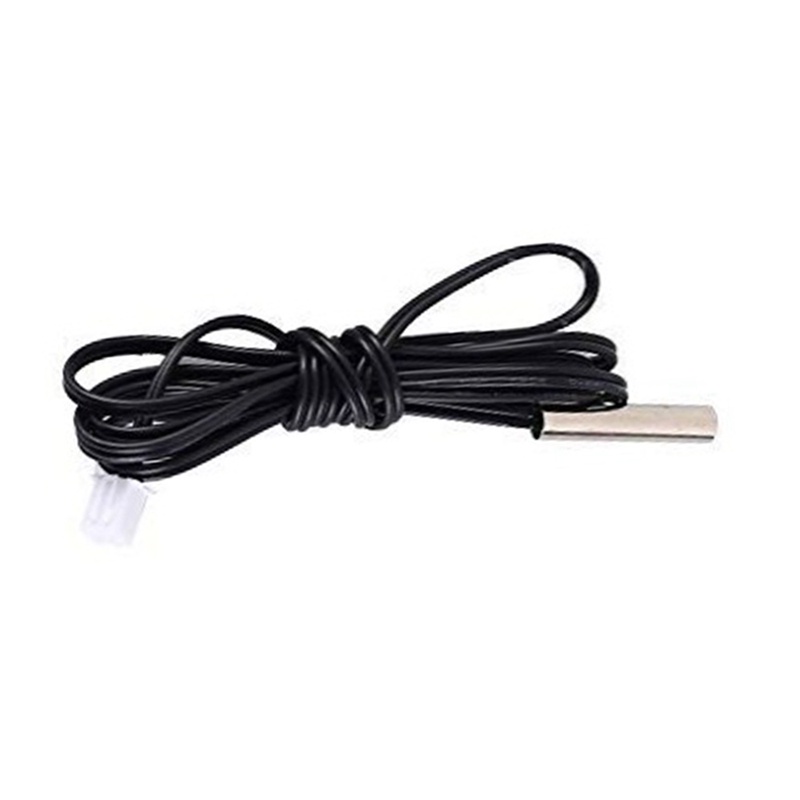

Four-wire PWM fan temperature control governor with control signal 10V, support common EBM four-wire fan. Support conventional high-voltage EC fan four-wire control (10V PWM signal);support low temperature shutdown fan (PWM off or extended relay to turn off fan power ). Wide voltage operation DC11-55V; Supports 2.5KHZ and 20KHZ frequency settings; Supports anti-timing fans. Power supply voltage: DC11-55V (circuit operating voltage) Working current: Less than 0.1A Fan current: Less than 5A (on-board connector withstand capability, if you need to control higher power, you only need to take the power cord separately) PWM range: 5-100 or 0 (% plus or minus 0.3%) PWM frequency: 20KHz or 2.5KHz (±2%) PWM signal amplitude: 10.5V (no load) Temperature measurement range: -9.9-99.9 °C Temperature measurement error: error within 0-50 °C is less than 1.2 °C, other range error is less than 2 °C Interface introduction: Power connector (blue screw terminal): The main power input interface supplies power to the control board and the fan. Fan interface (white VH3.96-4P socket): fan output interface, please refer to the picture for line sequence. Temperature probe interface: Connect NTC probe parameter 10K B=3950. Alarm signal port (WORK): Outputs a high level during normal operation and outputs a low level when the fan is abnormal. Relay interface (RELAY): An expansion interface that drives a 9V or 12V relay that can be used to control the fan power line. When the fan control is stopped, the relay is disconnected. Material:plastic colour:green Package Contents: 1 x ControllerOnly the above package content, other products are not included. Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
