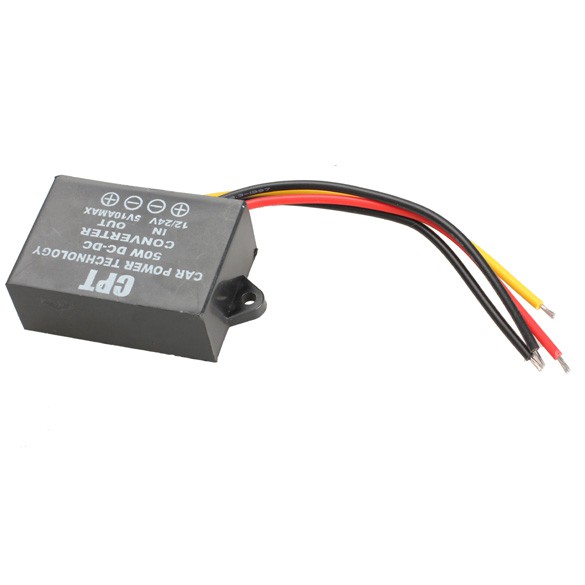

Bộ Chuyển Đổi Nguồn Dc-Dc 12v/24v Sang 5v 10a 50w
100% Brand new and high quality Input: 12/24V Output: 5V/10A MAX Module type: Non-isolated depressurization module (BUCK) Rectifying method: Synchronous rectifier Minimum differential pressure: 2V Transfer efficiency: up to 96% SS (Soft Start) time: Approx. 500mS Ou
fanicas.vn
@fanicas.vnĐánh giá
Theo Dõi
Nhận xét
100% Brand new and high quality Input: 12/24V Output: 5V/10A MAX Module type: Non-isolated depressurization module (BUCK) Rectifying method: Synchronous rectifier Minimum differential pressure: 2V Transfer efficiency: up to 96% SS (Soft Start) time: Approx. 500mS Output ripple: 50mV (MAX), 20M bandwidth Working temperature: industrial grade (-40℃ to +85℃) (if environmental temperature exceeds 40 Celsius degree, please decrease usage frequency or strengthen cooling) Raise temperature under full load: 50℃ Load regulation: ±1% Voltage regulation: ±2% Dynamic response speed: 5% 200uS Short-circuit protection: Sustainable, automatic recovery Input reverse connect protection: No, (please cascade diode at input if necessary) Material: Aluminum alloy, Resin glue Size(L*W*H): 66*56*21mm, 57*40*21mm Include: 1 x DC-DC Converter Step-Down Buck Welcome to fanicas, if you have any questions, feel free to contact us.
