Bộ Sạc Pin Lithium Bms 2s 8a 7.4v 18650 Li-Ion Sự Bảo Vệ

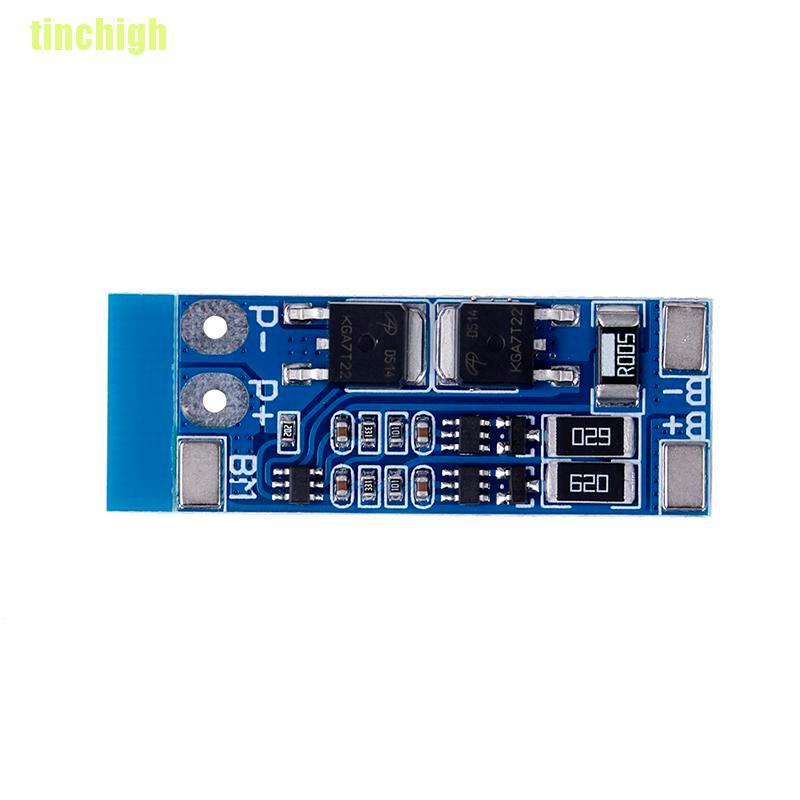

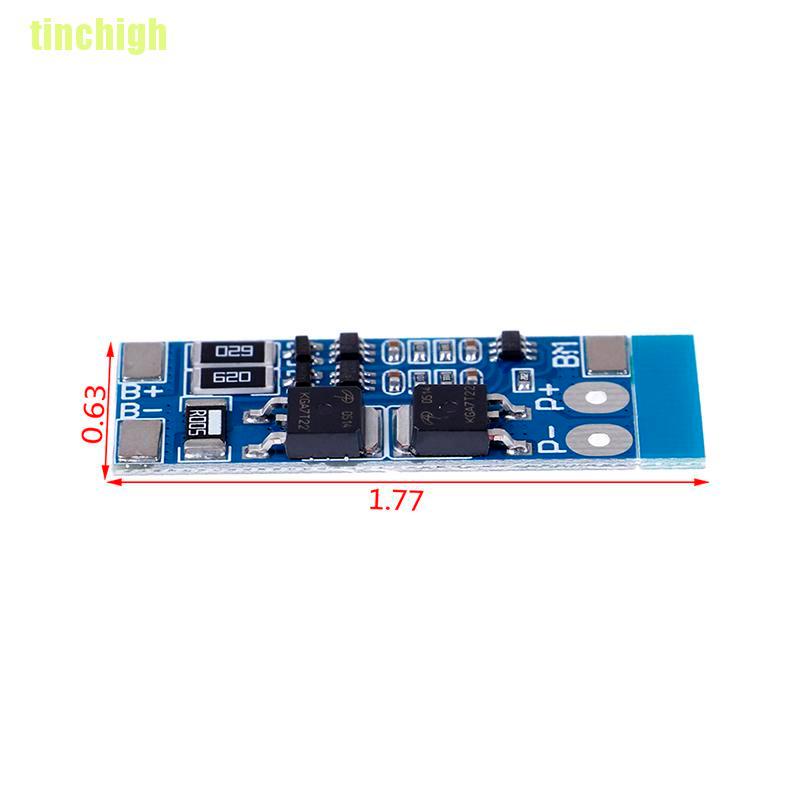

Welcome to tinchigh store, have a good shopping! Description: 2 series 7.4V lithium battery Model: HX-2S-JH10 Size: 40*17*3.5mm Over-discharge voltage range: 2.5-3.0v±0.05v Overcharge voltage range: 4.25-4.35v±0.05v Upper limit working current: 8A Upper limit instantaneous current: 10A Working temperature: -40--- 50 °C Storage conditions: -40-- 80 ° C Quiescent current: less than 10uA Effective life: more than 50,000 hours Internal resistance: less than 300mΩ Charging voltage: 8.4V-9V Short circuit protection: protection, disconnect load delay self-recovery Solder joint description: · B is connected to the battery positive pole; · B- is connected to the negative pole of the battery; · MB is connected to the connection point between battery 1 and battery 2; · P is connected to the positive terminal of the charge/discharge terminal (the charge terminal/discharge terminal is shared); · P- Connect the charge/discharge terminal negative (common to the charge/discharge terminal). Package include: 1Pcs charger protection board Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you! Welcome to tinchigh.vn ➷We mainly deal in daily necessities such as kitchen/gardening/beauty/electronic accessories ➷We will set special offers from time to time to give back to you! ➷Delivery time: We are from China, it usually takes 5 to 10 days, please wait patiently for your parcel ➷After-sales service: If you have any questions, please contact us as soon as possible, please do not give bad reviews, thank you for your cooperation, and wish you a happy shopping!
