Bộ Thu 2 Kênh 315Mhz Với 1 Bộ Phát Cho Bộ Mở Cửa Nhà Để Xe Ô Tô Điều Khiển Từ Xa Không Dây 12V

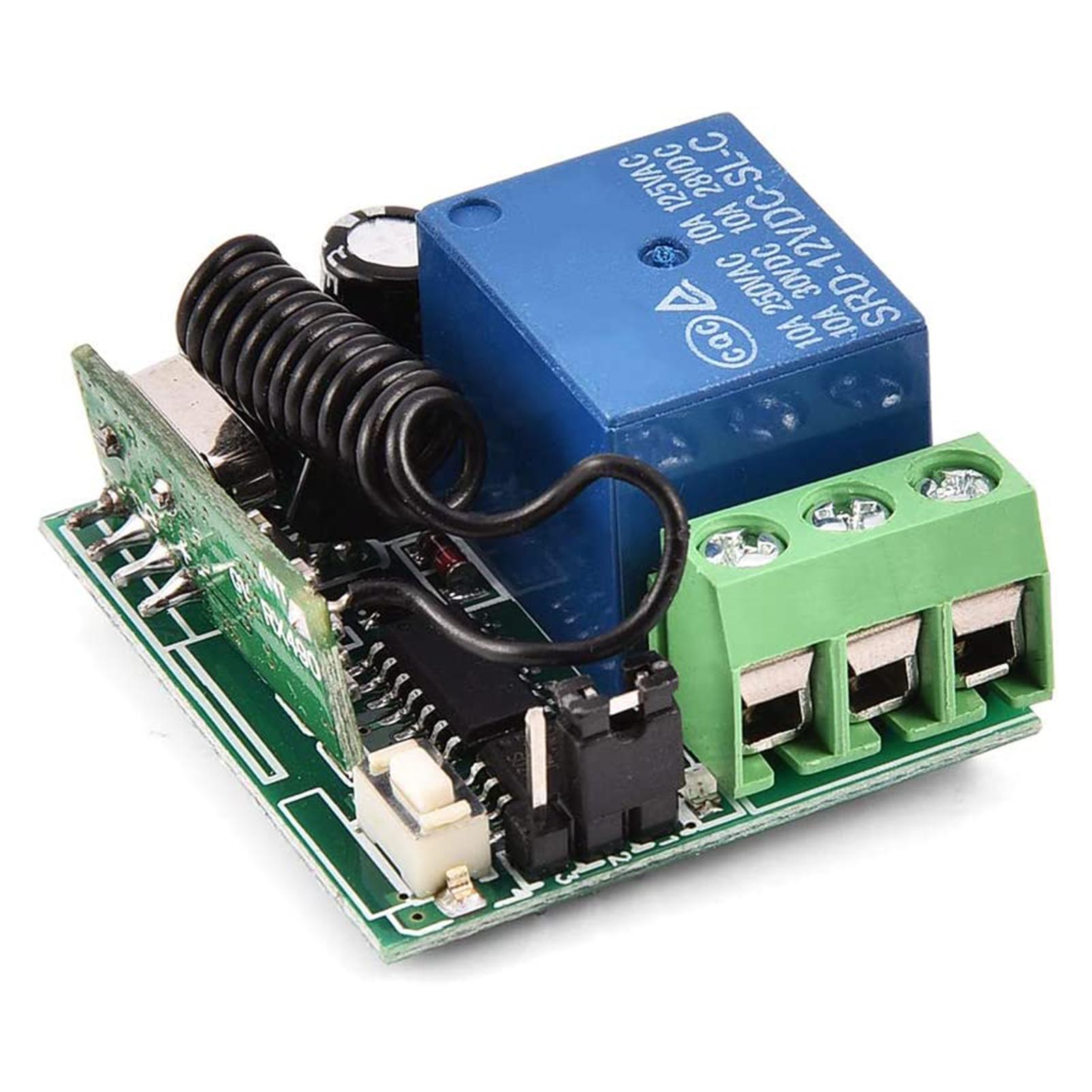

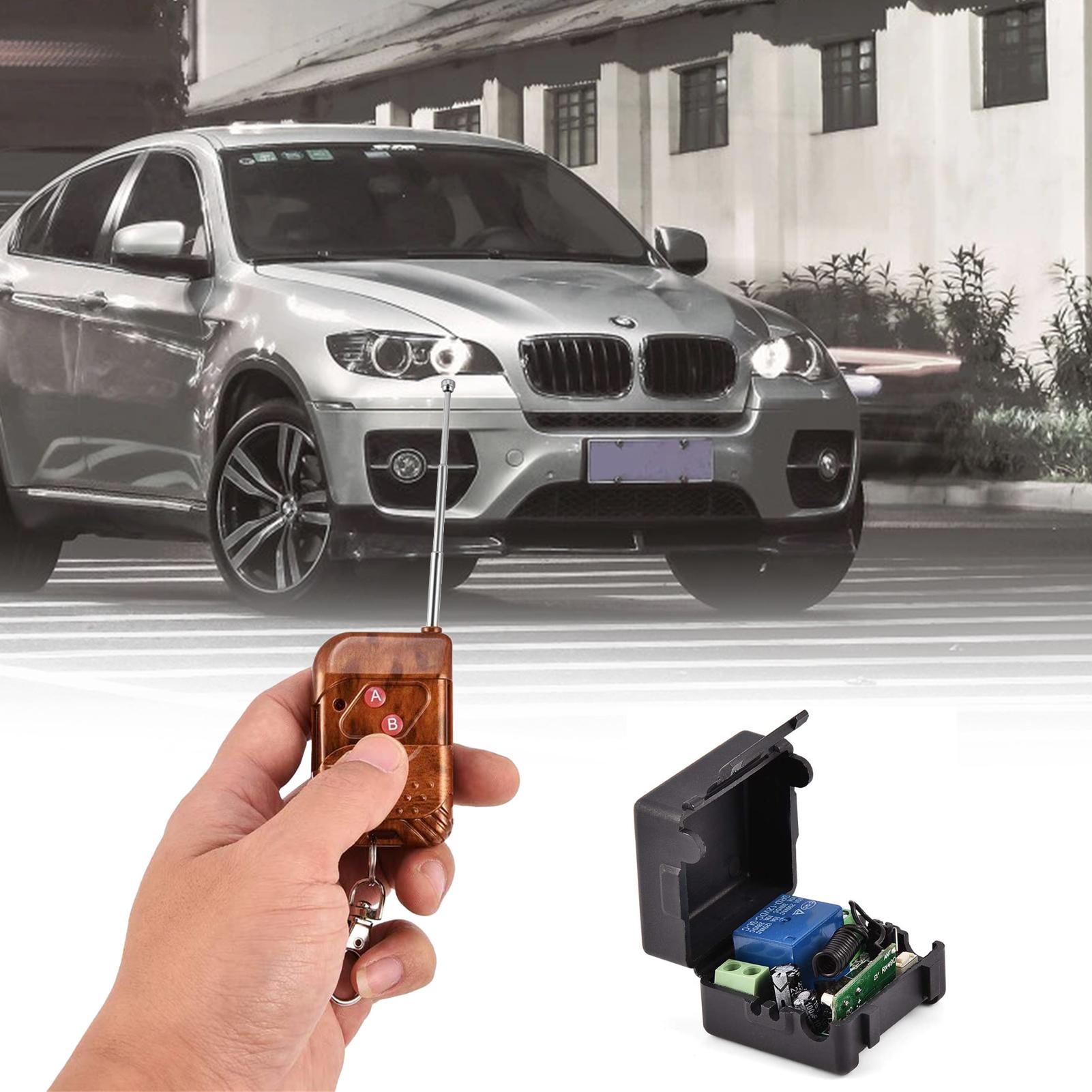

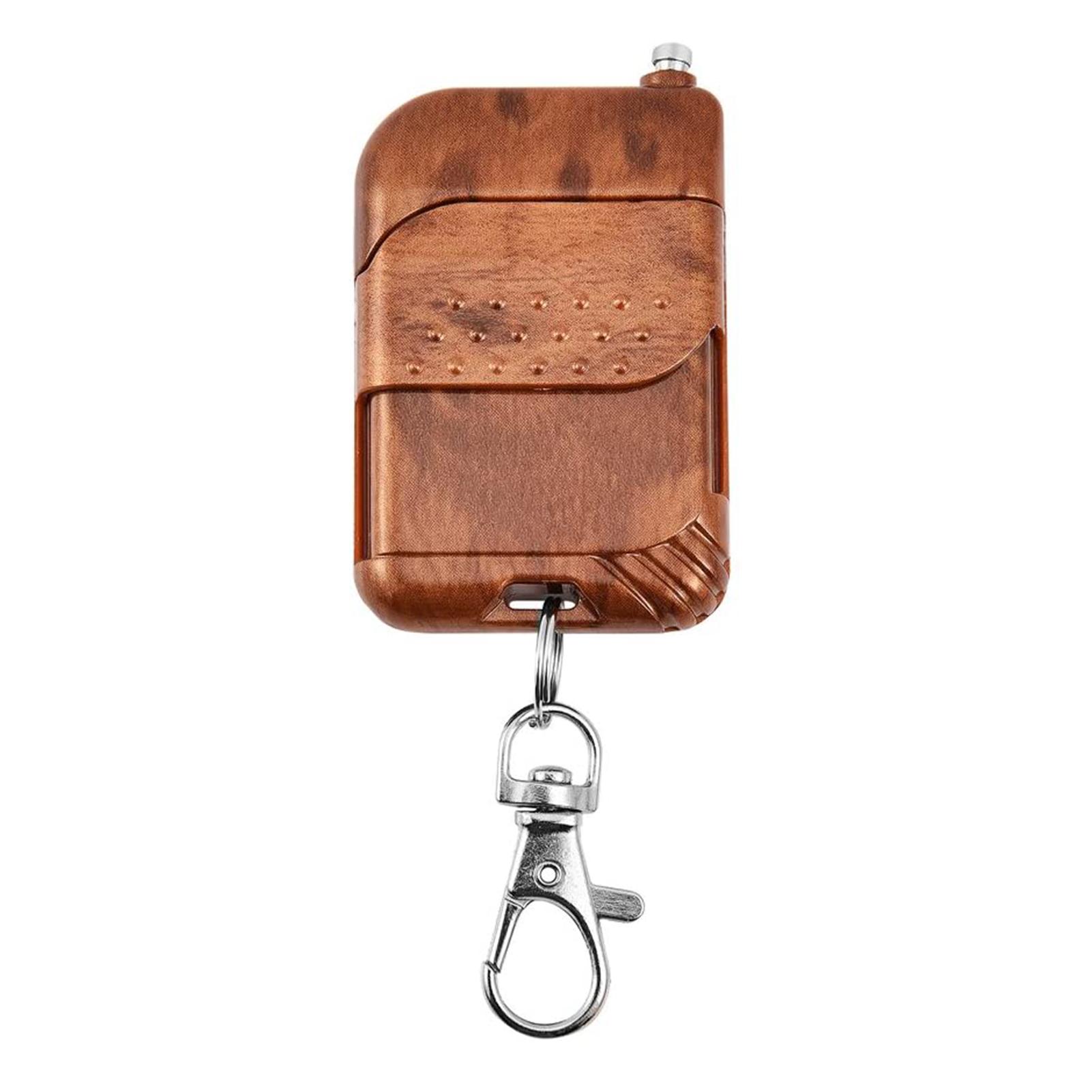

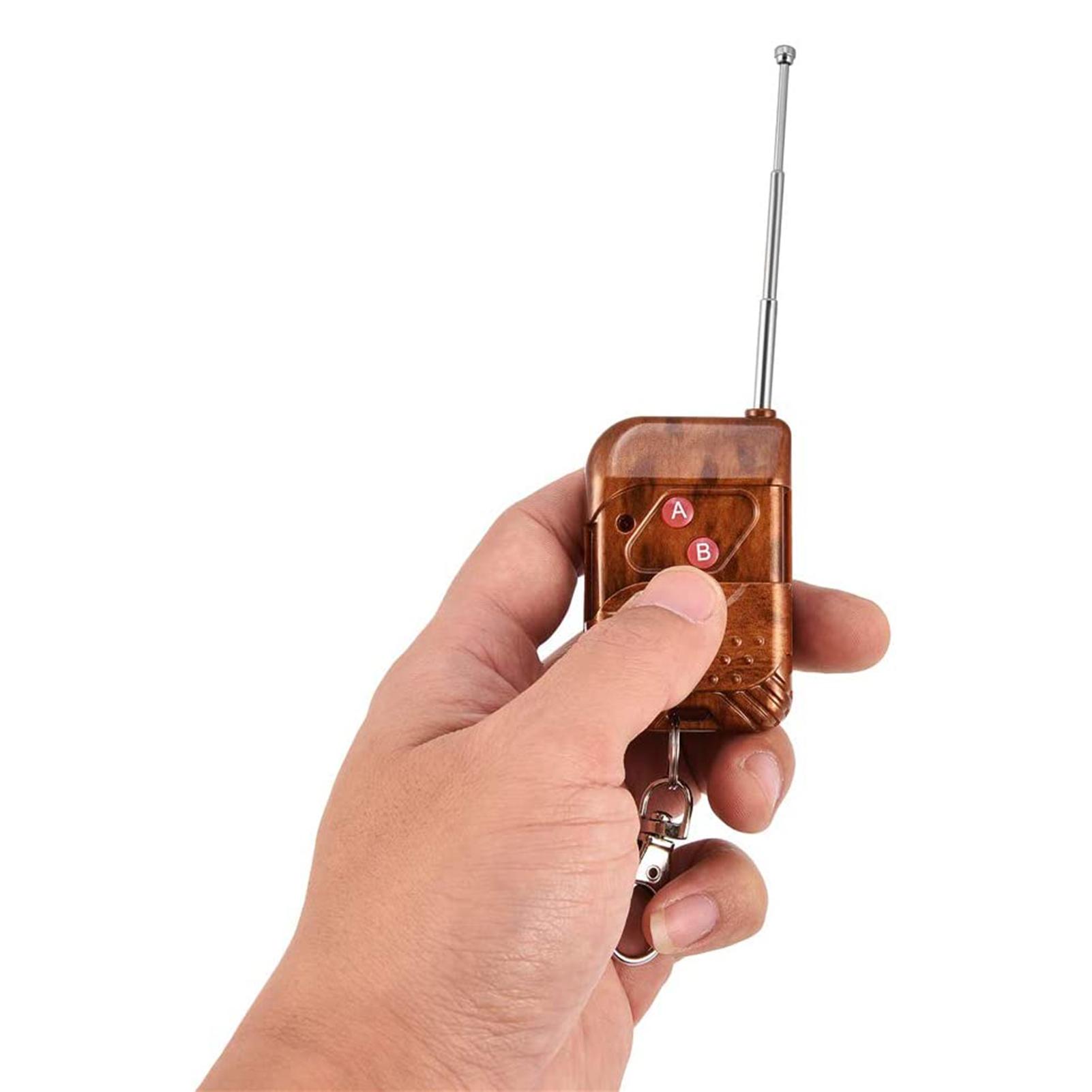

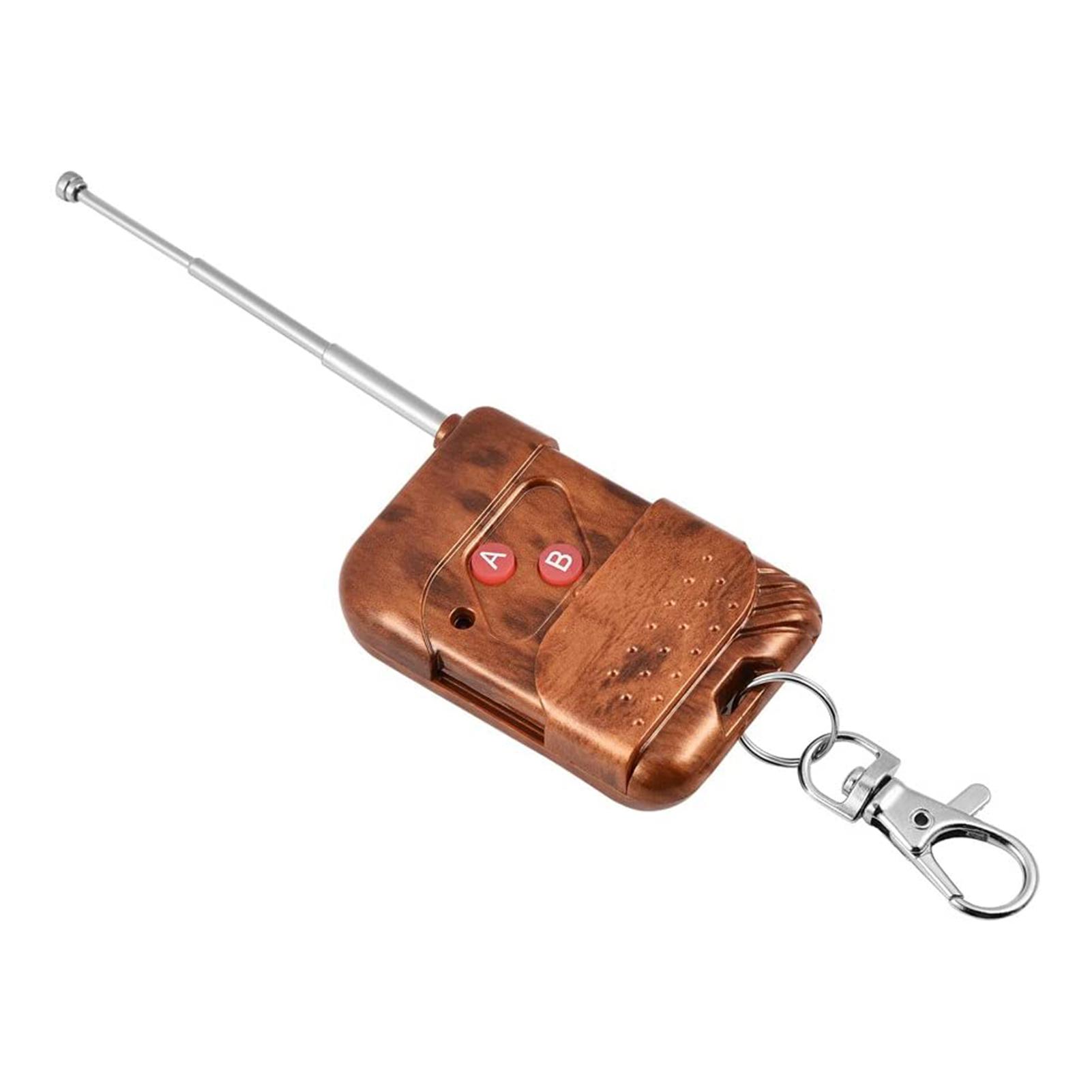

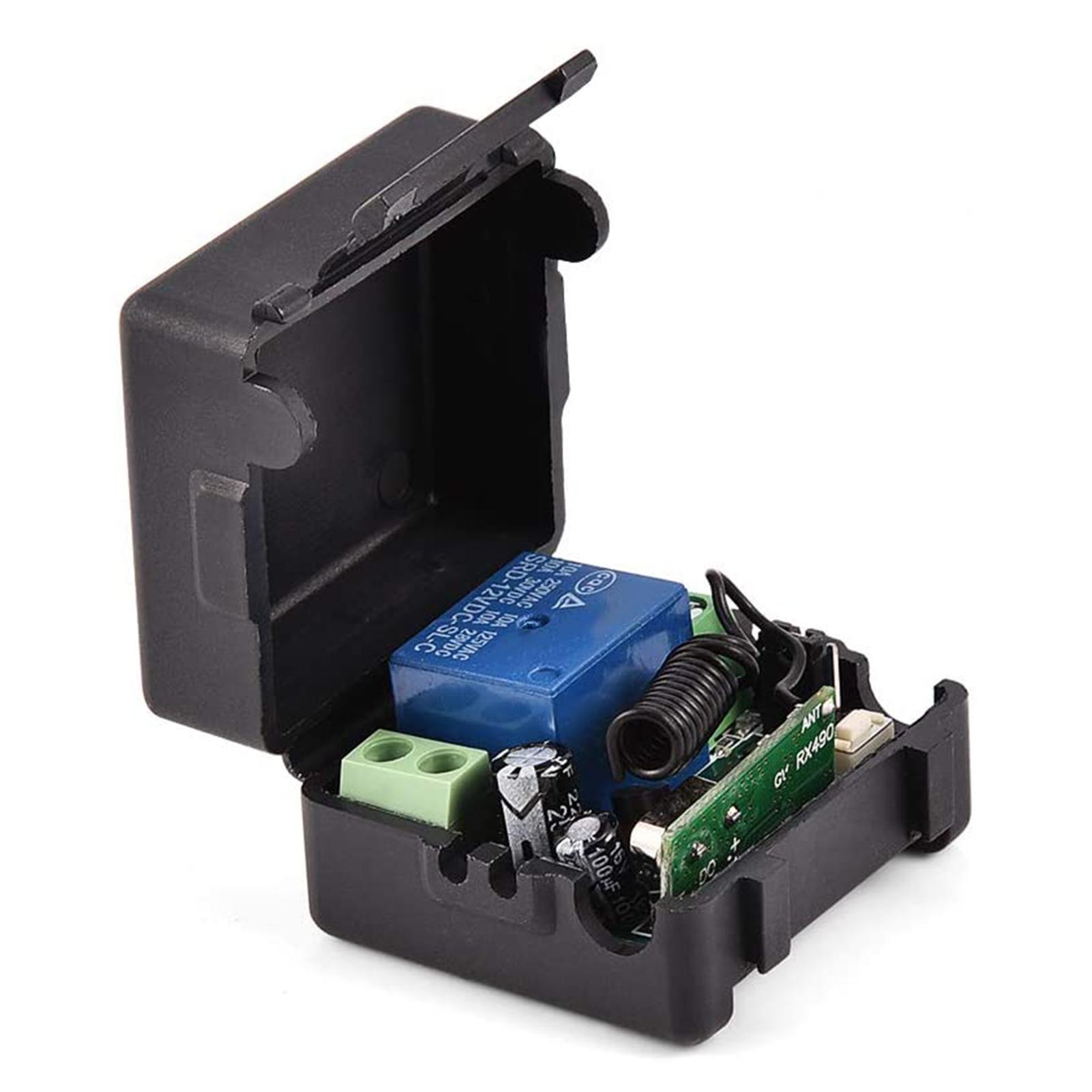

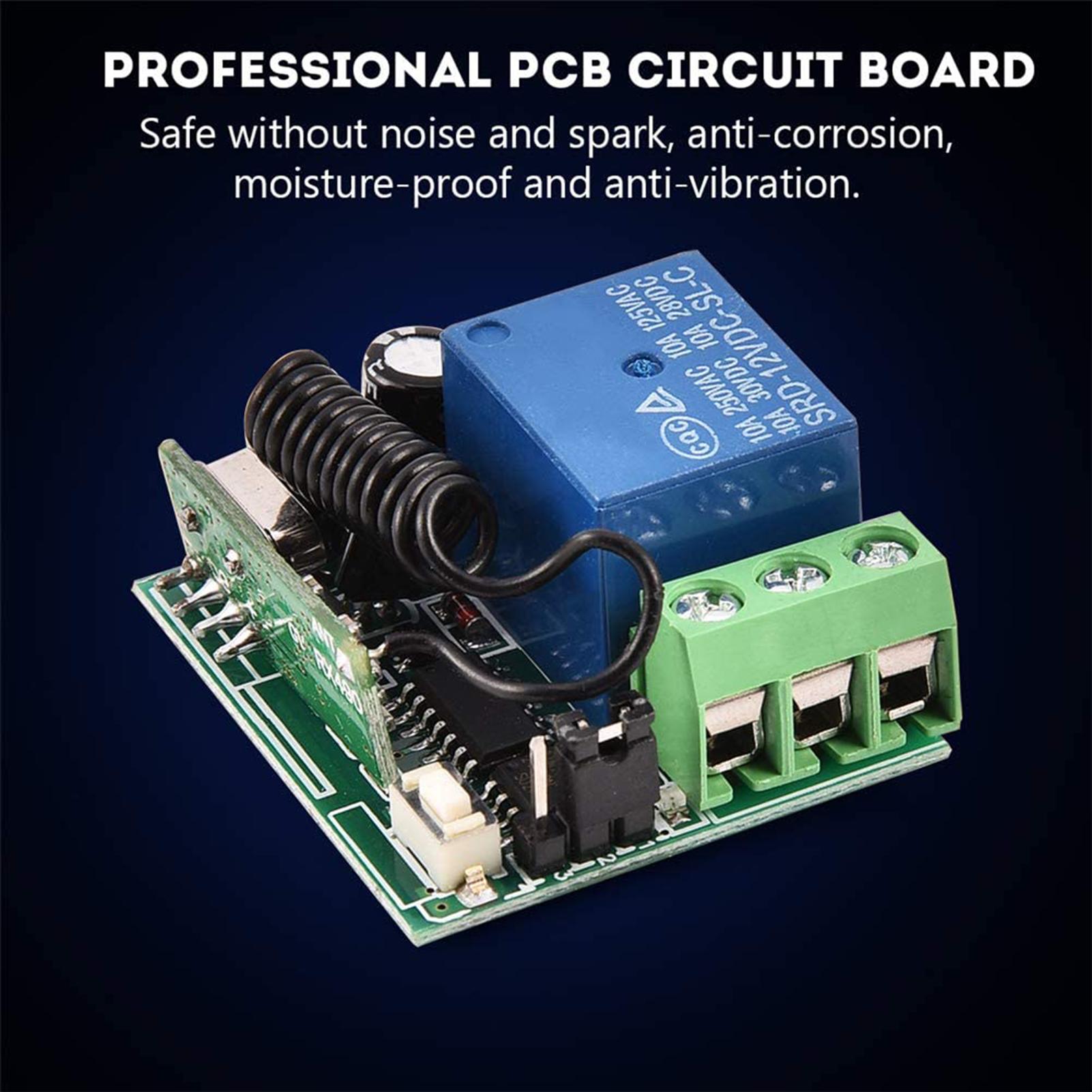

The remote control receiver board is suitable for electrical control circuits such as anti-theft alarm, remote control electric door and window, signal control, industrial control, lifting equipment. Remote control switch module relay contact independent output, very suitable for direct control of various types of load; products use fixed code wireless coding technology, no directional, switch does not interfere with each other. 12V remote control switch, the power supply is recommended to use more than 500mA DC regulated power supply. Working mode: self-locking, interlocking, jogging. One control/multiple control can be realized. Features:Remote control switch can be remotely controlled from a long distance, and has strong anti-interference ability. The remote control distance of the open space is 30 meters. In the case of interference or wall blockage, the control distance will be reduced. The specific situation is determined according to the scene.Wireless remote control module, working voltage is 12V DC, working frequency is 315mhz. It can directly drive DC/AC loads, and the relay can withstand a current of 10A. The remote control uses 12V 23A dry cells.Remote control buttons A and B control the two relays of the receiver. They work independently and do not interfere with each other. When the control buttons A and B are pressed, the indicator on the receiving board will light accordingly. It also has learning and deletion functions. The operation is very simple and has detailed instructions in the product description.12V Wireless remote control module is widely used in life, such as windows, entrances, garage doors, alarm systems, lifting equipment, etc.  Specifications:Material: PlasticWorking Voltage: 12VDCStandby Current: 8MAWorking Frequency: 315mhzEncoding Type: Fixed code / learning codeReceive Sensitivity: -95DBMOutput: 1 passive switch (jog/self-lock/interlock self-setting)Load Recommendation: 10A relay (remaining margin in use), it is recommended that resistive load <90w, inductive load <50w. Not suitable for frequent start and stop.Output Mode: Contact output (controllable AC and DC)Remote Control Cell: 1 x lithium cell, 23A 12V (not included)Package Weight: 68g / 2.4ouncesPackage Size: 47 * 32 * 12mm / 1.85 * 1.26 * 0.47in Add a remote learning method:Turn on the power indicator and flash it off. Press the (s1 white button) on the receiver board to release the button. At this time, the indicator light also flashes and turns off, then press the remote control button. The indicator flashes 4 times and goes out, learning is successful. The remote control can control the receiving board.Delete remote control method:Press the receiving board S1 (white button) and do not release it, the LED will light up, still do not release the S1 button. When the LED is off, the deletion is complete. Then release the button. Packing List:1 * Receiving Module1 * Remote ControlGiá sản phẩm trên Tiki đã bao gồm thuế theo luật hiện hành. Bên cạnh đó, tuỳ vào loại sản phẩm, hình thức và địa chỉ giao hàng mà có thể phát sinh thêm chi phí khác như phí vận chuyển, phụ phí hàng cồng kềnh, thuế nhập khẩu (đối với đơn hàng giao từ nước ngoài có giá trị trên 1 triệu đồng).....
