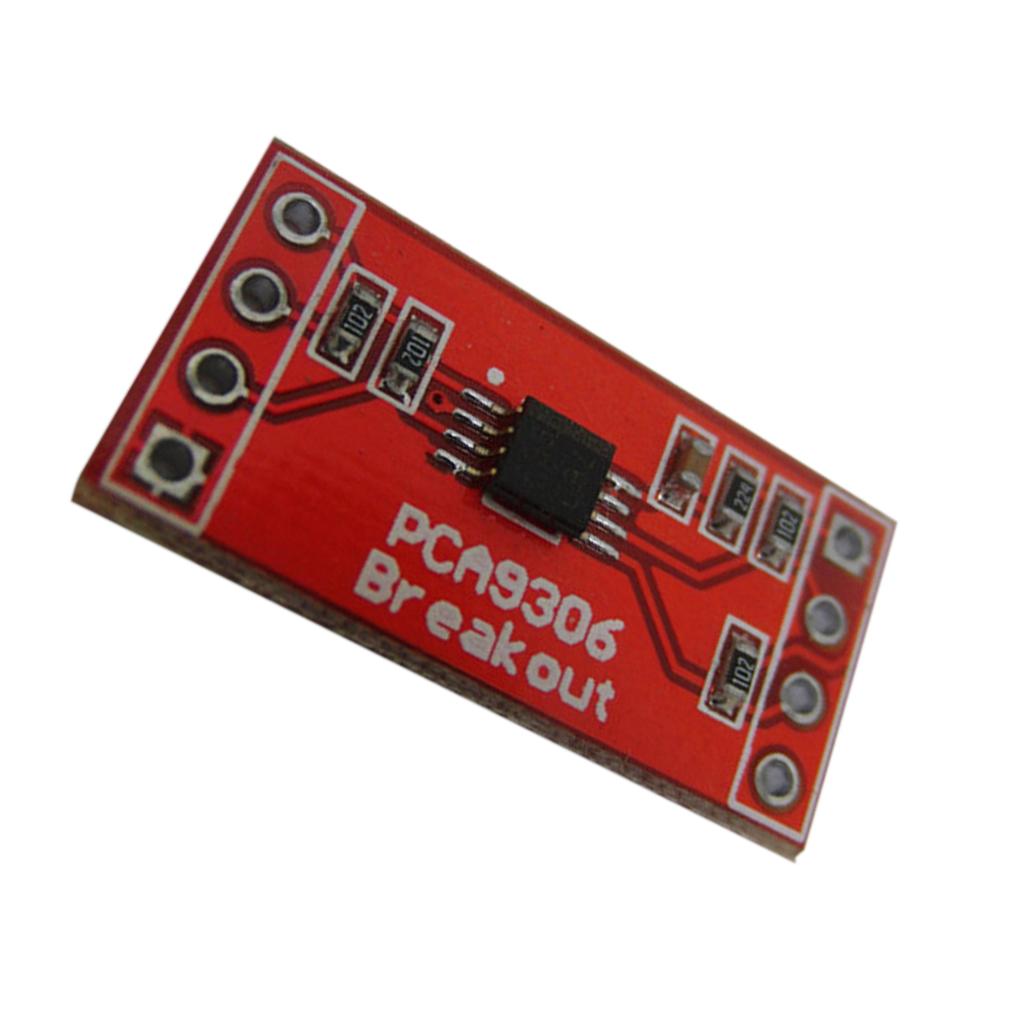

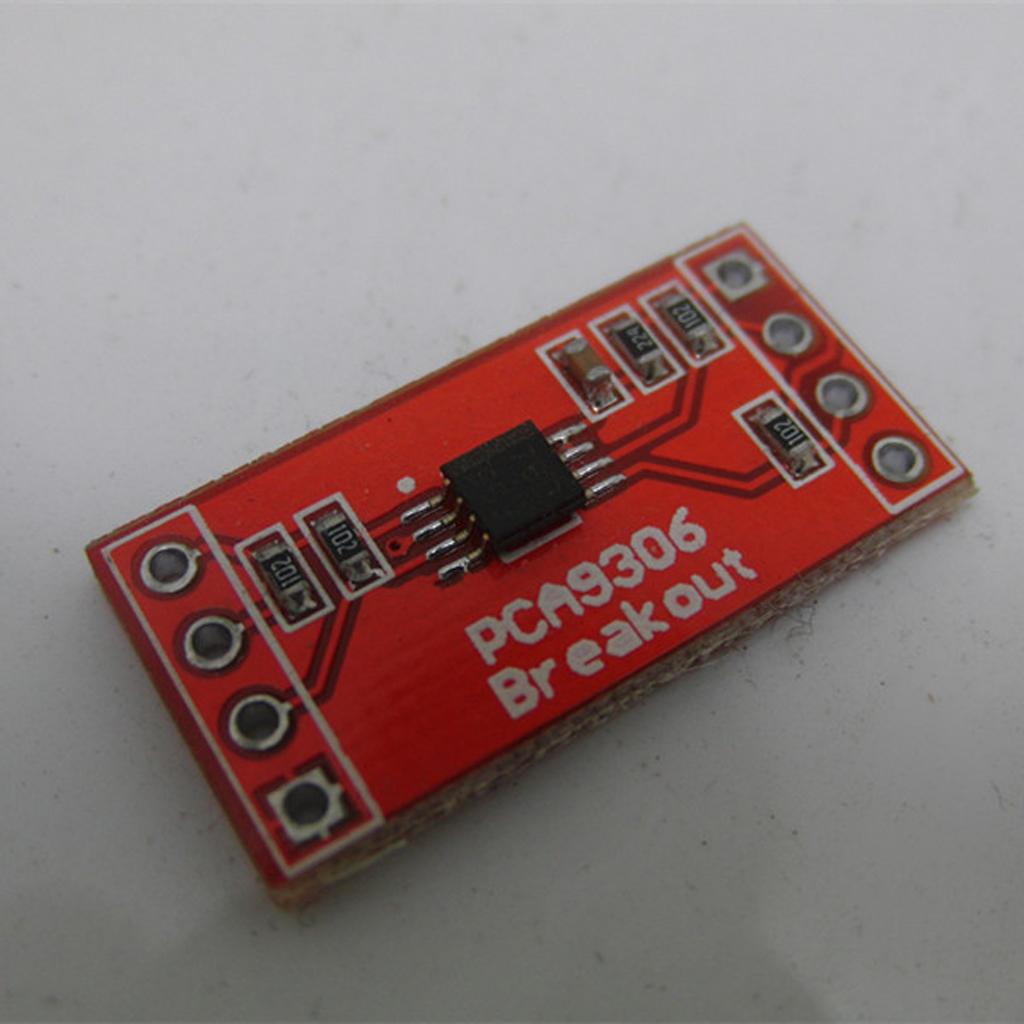

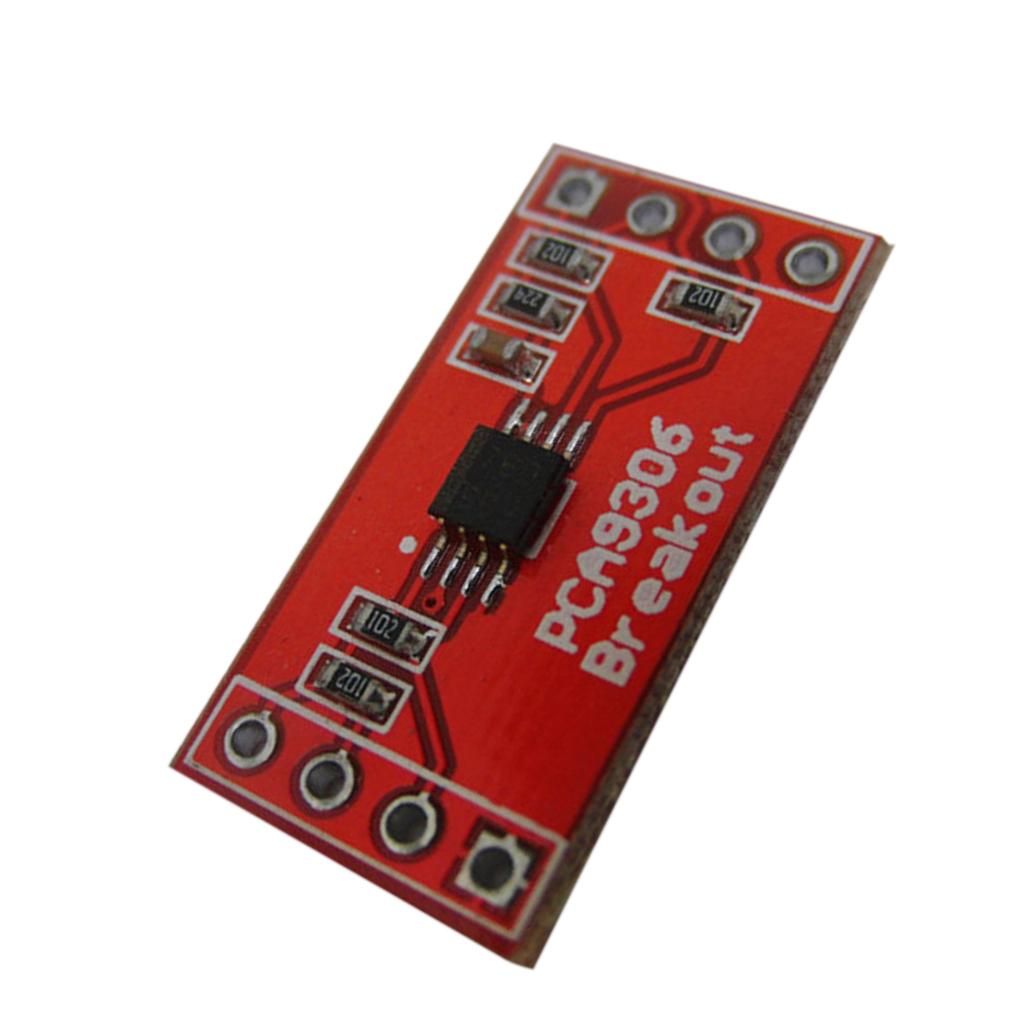

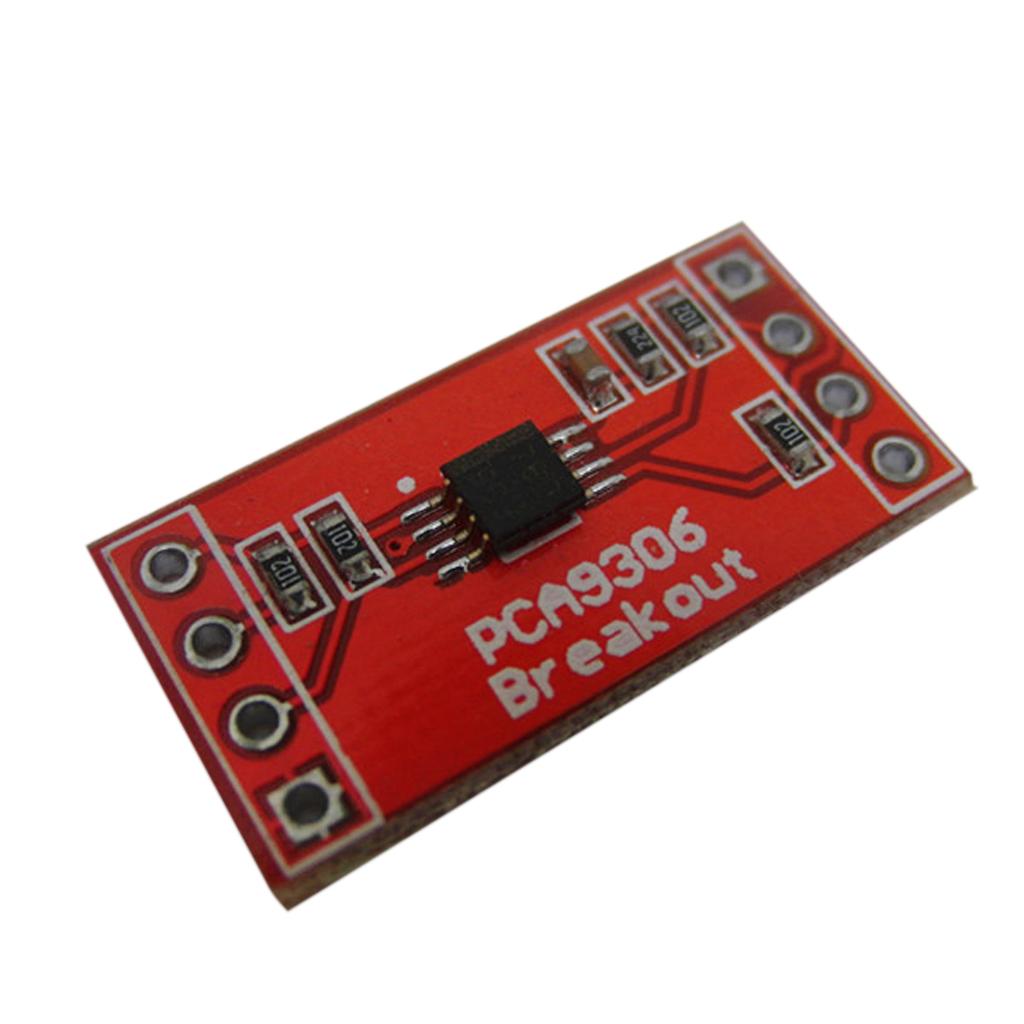

Breakout Board PCA9306 Dual Bidirectional Voltage Level Translator Module
Breakout Board PCA9306 Dual Bidirectional Voltage Level Translator Module
Breakout Board PCA9306 Dual Bidirectional Voltage Level Translator Module
Breakout Board PCA9306 Dual Bidirectional Voltage Level Translator Module
1 / 1

Breakout Board PCA9306 Dual Bidirectional Voltage Level Translator Module

0.0
0 đánh giá

Specification: 2-bit bidirectional translator for SDA and SCL lines in mixed-mode I2C-bus applications Standard-mode, Fast-mode, and Fast-mode Plus I2C-bus and SMBus compatible ...

89.000
Chia sẻ:
Magideal

Magideal

@magideal
4.2/5

Đánh giá

2.270

Theo Dõi

2.949

Nhận xét

Thương Hiệu
oem

Thương hiệu

OEM

Xuất xứ thương hiệu

China

Xuất xứ (Made in)

China

Sản phẩm có được bảo hành không?

Không

Specification: 2-bit bidirectional translator for SDA and SCL lines in mixed-mode I2C-bus applications Standard-mode, Fast-mode, and Fast-mode Plus I2C-bus and SMBus compatible Less than 1.5 ns maximum propagation delay to accommodate Standard-mode and Fast-mode I2C-bus devices and multiple masters Allows voltage level translation between: 1.0 V Vref(1) and 1.8 V, 2.5 V, 3.3 V or 5 V Vbias 1.2 V Vref(1)and 1.8 V, 2.5 V, 3.3 V or 5 V Vbias 1.8 V Vref(1)and 3.3 V or 5 V Vbias 2.5 V Vref(1) and 5 V Vbias 3.3 V Vref(1) and 5 V Vbias Provides bidirectional voltage translation with no direction pin Low 3.5 Ω ON-state connection between input and output ports provides less signal distortion Size: Approx. 22x 11x 2mm/ 0.87x 0.43x 0.08inch Package Includes: 1 Piece PCA9306 Level Translator Breakout Note: Due to the light and screen setting difference, the item's color may be slightly different from the pictures. Please allow slight dimension difference due to different manual measurement. Giá sản phẩm trên Tiki đã bao gồm thuế theo luật hiện hành. Bên cạnh đó, tuỳ vào loại sản phẩm, hình thức và địa chỉ giao hàng mà có thể phát sinh thêm chi phí khác như phí vận chuyển, phụ phí hàng cồng kềnh, thuế nhập khẩu (đối với đơn hàng giao từ nước ngoài có giá trị trên 1 triệu đồng).....
