Carbon Dioxide Sensor Module Industrial High Accuracy CO2 Detection Transmitters Infrared Carbon Dioxide Module
This product adopts infrared light source and dual channel thermopile detector to process the measurement and reference signals, and to compensate the temperature. Even under the harsh temperature and...

Cc Choice
@cc-choiceĐánh giá
Theo Dõi
Nhận xét
Thương hiệu
OEM
Xuất xứ thương hiệu
China
Xuất xứ (Made in)
china
Trọng lượng sản phẩm
1
Sản phẩm có được bảo hành không?
Không
Kích thước (Dài x Rộng x Cao)
Khác

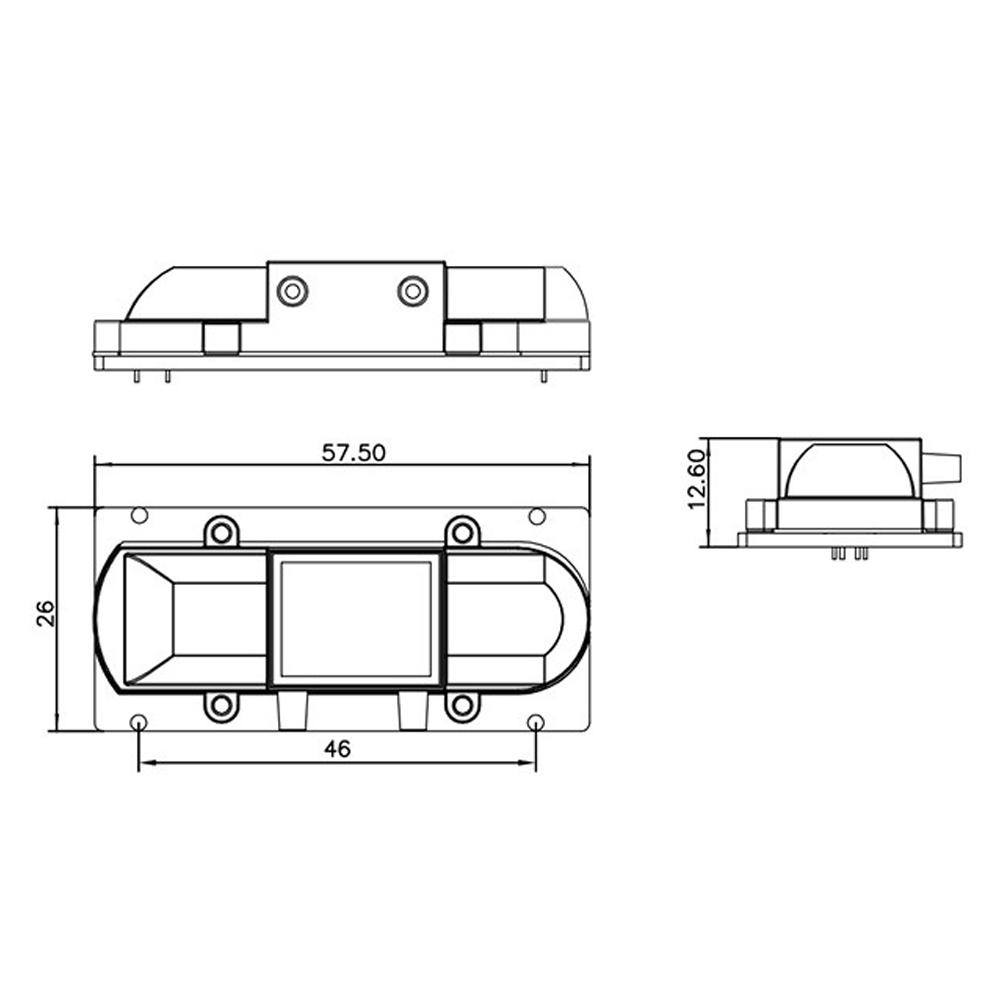

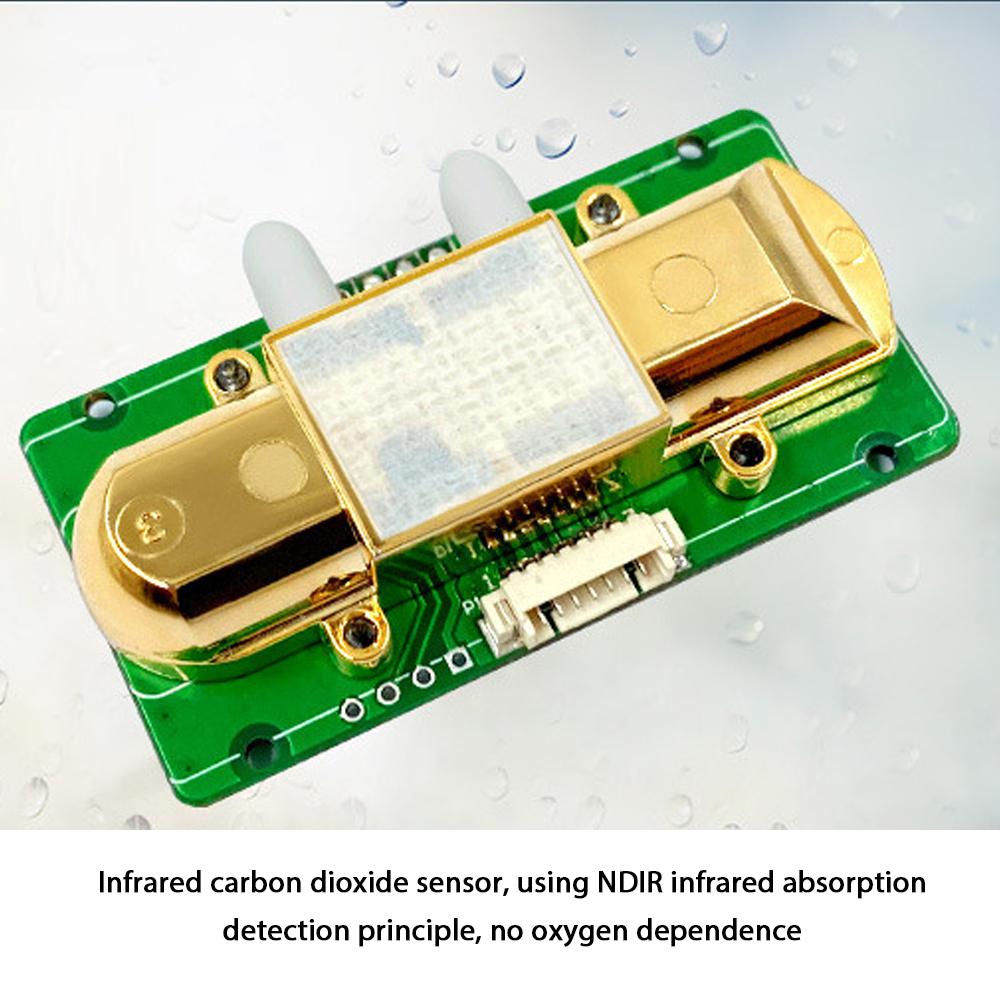

This product adopts infrared light source and dual channel thermopile detector to process the measurement and reference signals, and to compensate the temperature. Even under the harsh temperature and environmental conditions, it can also obtain stable and reliable measurement results. It has nice selectivity, high sensitivity, no oxygen dependence and long life. Features:Infrared carbon dioxide sensor, using NDIR infrared absorption detection principle, no oxygen dependence.High sensitivity, quick response and high resolution.Support a variety of output forms, outstanding linear output.With temperature compensation, high stability.Long service life and low power consumption.Anti water vapors interference, more stable.24 hours automatic calibration. Specifications:Material: plasticsMeasurement range: 0-5000ppm (default)Measurement resolution: 1ppmMeasurement accuracy: 50ppm or 5% F.S (25 ℃)Response time: 30s (25 ℃)Preheating time: 1min (25 ℃)Accuracy: 5min (25 ℃)Working voltage: 5V Direct CurrentAverage power consumption: 60mAWorking humidity: 0~95% RH (non condensation)Working temperature: - 10~60 ℃; factory default temperature compensation ranges: 0~50 ℃Item size: 26 * 58mm / 1.0 * 2.3inItem weight: 100g / 3.5ouncePackage size: 200 * 100 * 50mm / 7.9 * 3.9 * 2.0inPackage weight: 150g / 5.3ounce Package List:1 * Carbon Dioxide Sensor ModuleGiá sản phẩm trên Tiki đã bao gồm thuế theo luật hiện hành. Bên cạnh đó, tuỳ vào loại sản phẩm, hình thức và địa chỉ giao hàng mà có thể phát sinh thêm chi phí khác như phí vận chuyển, phụ phí hàng cồng kềnh, thuế nhập khẩu (đối với đơn hàng giao từ nước ngoài có giá trị trên 1 triệu đồng).....
