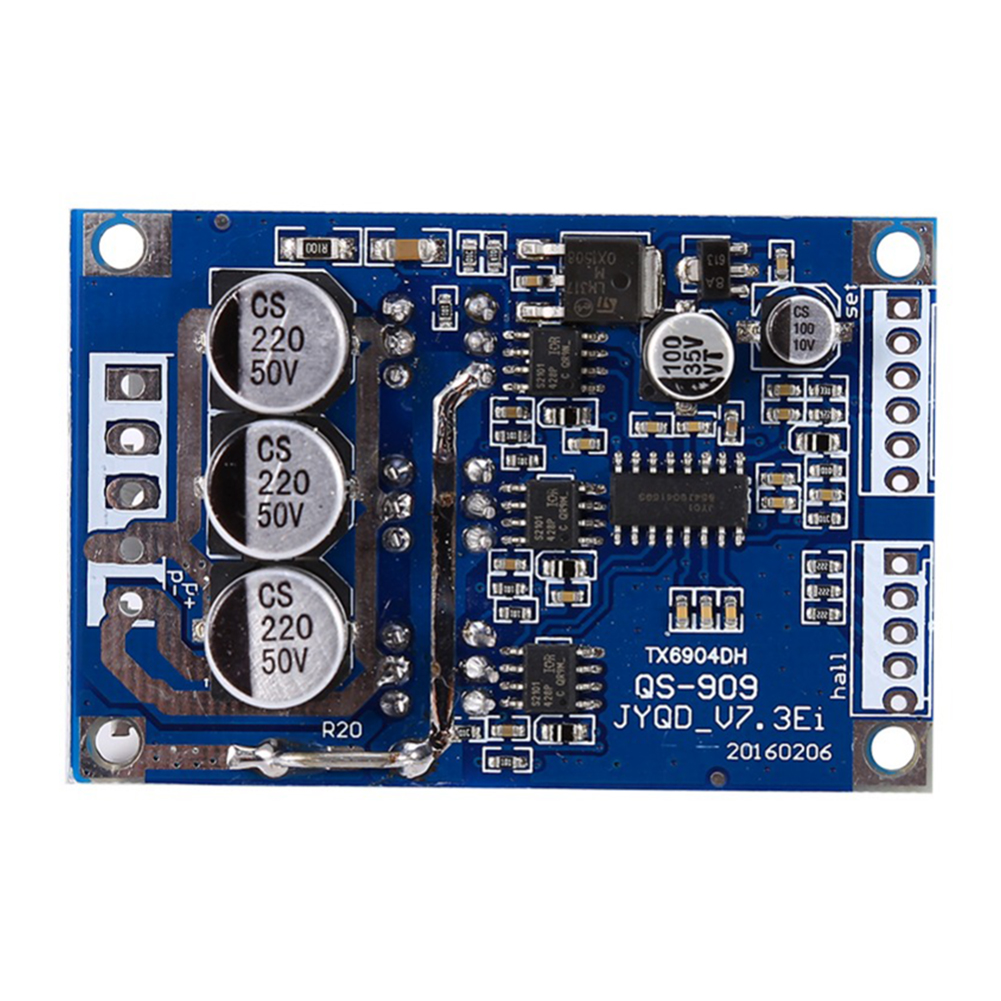

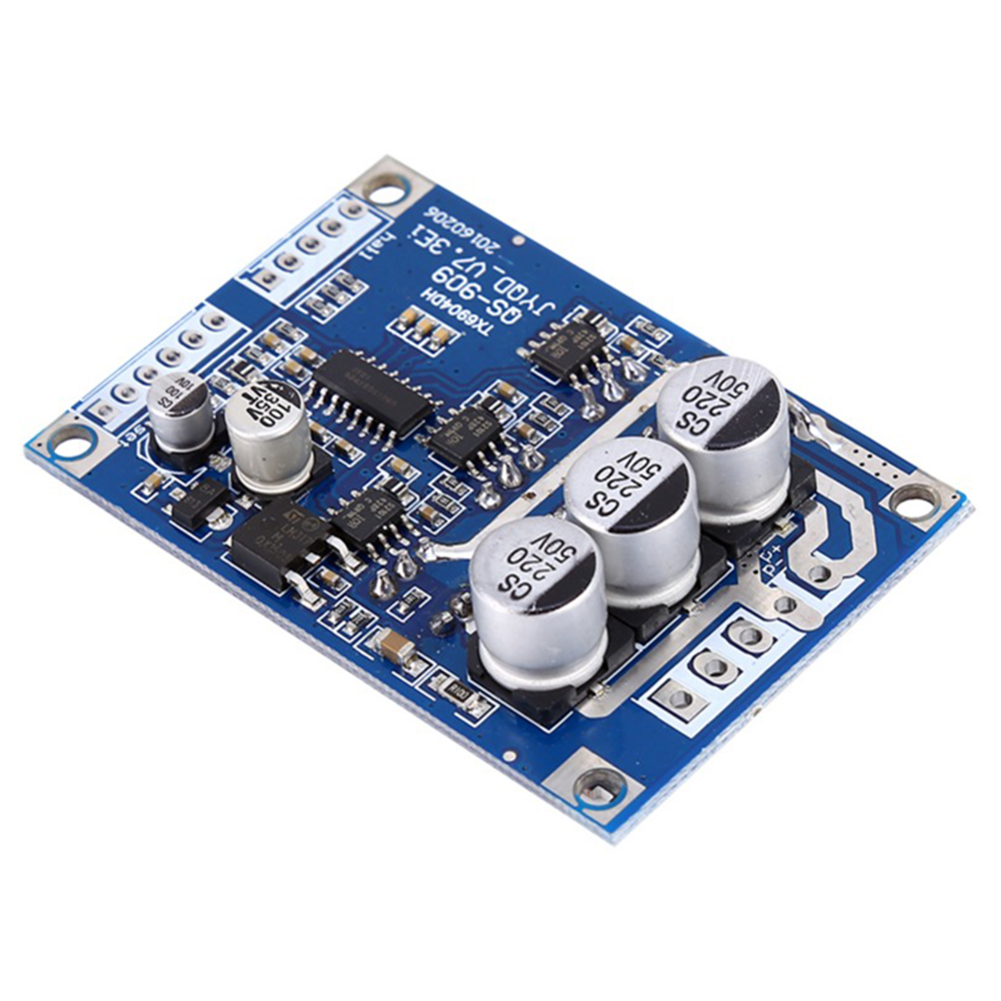

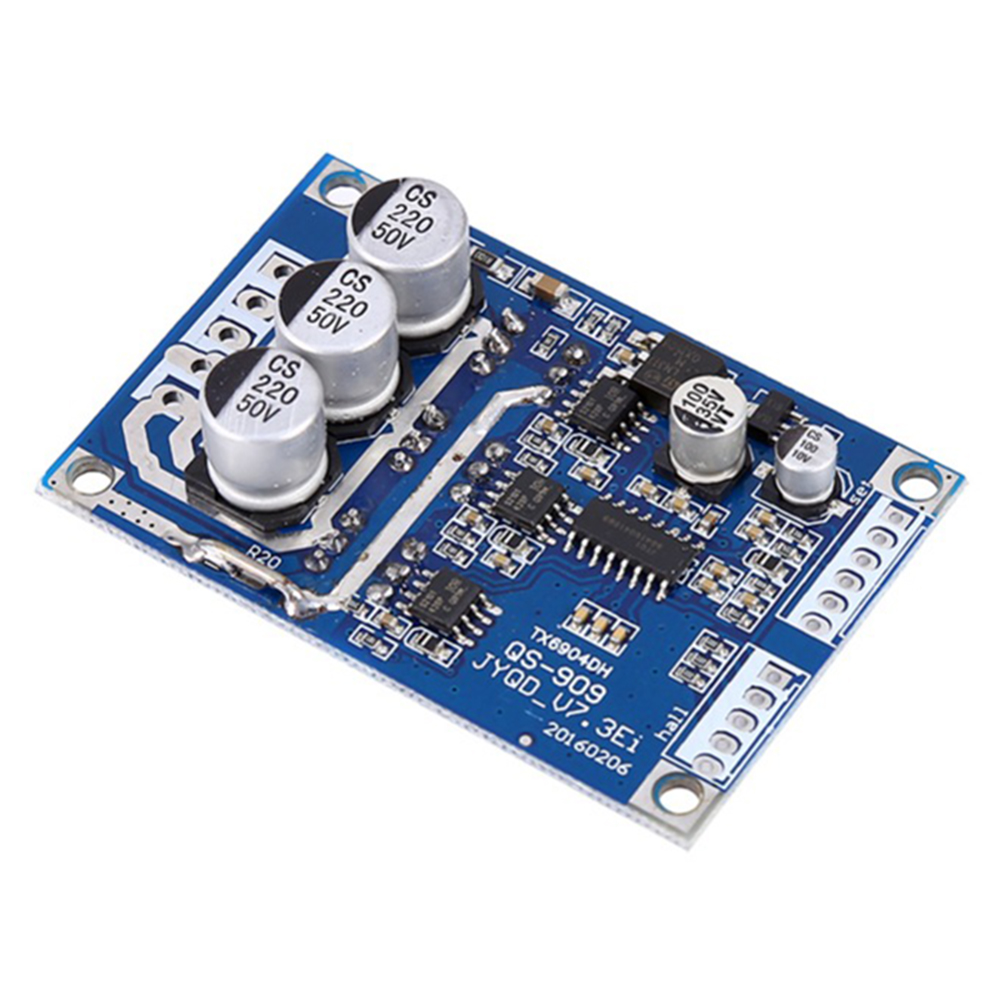

DC 12V-36V 15A 500W Brushless Motor Controller Hall BLDC Driver Board Blue

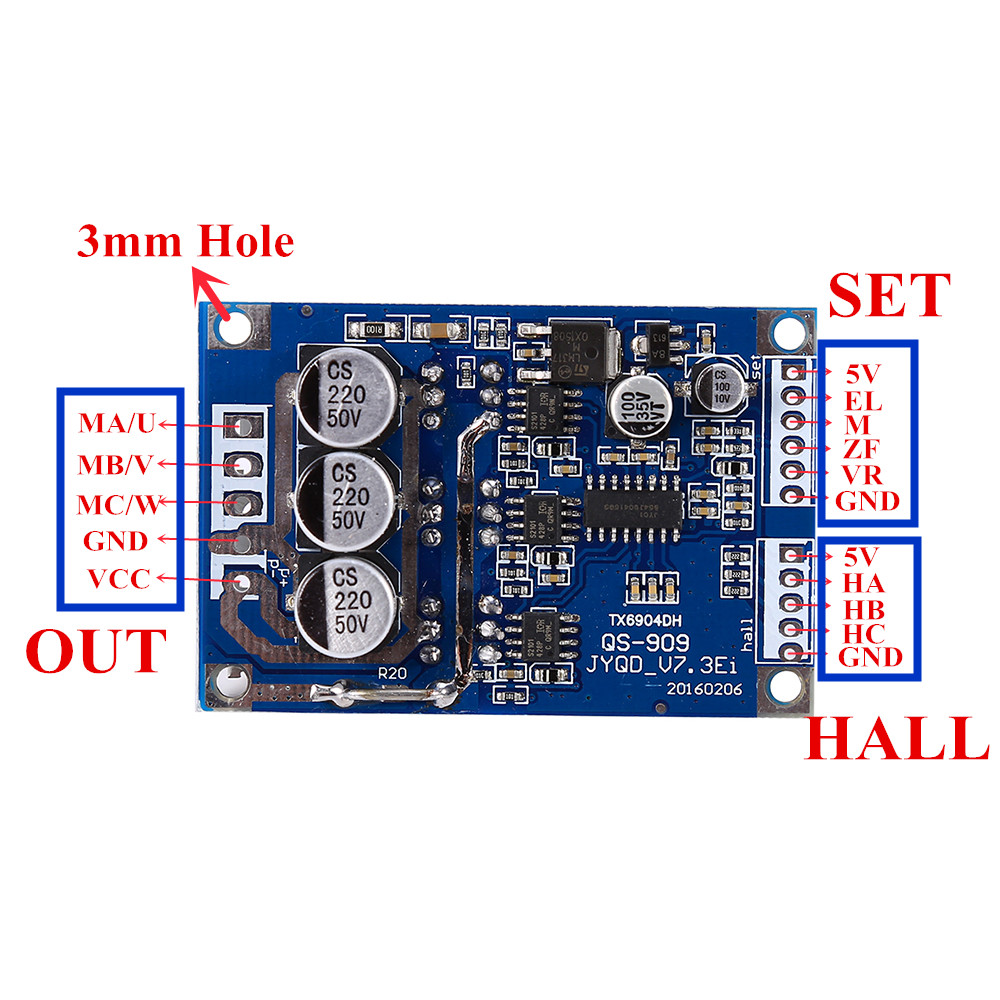

Description: Item type: tool Operating voltage: DC 12V-36V Operating Current: 15A or less Driver Power: 500W or less Speed Voltage: 0.1V-5V Operating Temperature:-40-85C Humidity: 90%RH Stall protection:Yes Enable Control: Yes Over-current protection: Yes Steering control: Yes Speed control signal: Yes Size: 63*42*17mm(L*W*H); Probe size 3mm,length: fixing hole center distance 57mm; width:fixed hole center distance 36.5mm Power terminal Out: VCC(positive power supply) GND(negative one) MC(motor phases W) MB(motor phases V) MA(motor phase U) Set for the control side: [GND] control terminal ground [VR] the governor end 0-5V(corresponding to 10% of motor speed -100%) [ZF] reversing control(connected to 5V or ground can charge the motor rotation direction) [M] tachometer pulse output(depending on the number of motor poles corresponding to the number of pulse per revolution of the output number) EL] enable control terminal(connected to 5V ot ground running then 5V, grounding the motor stops) [5V] 5V control terminal HALL for the hall terminals: [5V] Hall power positive [Ha]Hall signal [Hb]Hall signal [Hc] Hall Signal [GND]Hall negative Wiring: Control terminal for SET: 1. Available potentiometer system speed can also be connected to the MCU control, when the potentiometer control wiring, the potentiometer middle pin is connected to VR speed port, potentiometer connected to both ends of 5V and GND terminal voltage more high speed faster. 2. You can switch control can also be connected to the MCU control, to GND in one direction, then in one direction 5V. 3. Pulse speed signal: high and low output . IC can not understand the information with the customer request. Package includes: 1 * Brushless Motor Controler Giá sản phẩm trên Tiki đã bao gồm thuế theo luật hiện hành. Bên cạnh đó, tuỳ vào loại sản phẩm, hình thức và địa chỉ giao hàng mà có thể phát sinh thêm chi phí khác như phí vận chuyển, phụ phí hàng cồng kềnh, thuế nhập khẩu (đối với đơn hàng giao từ nước ngoài có giá trị trên 1 triệu đồng).....
