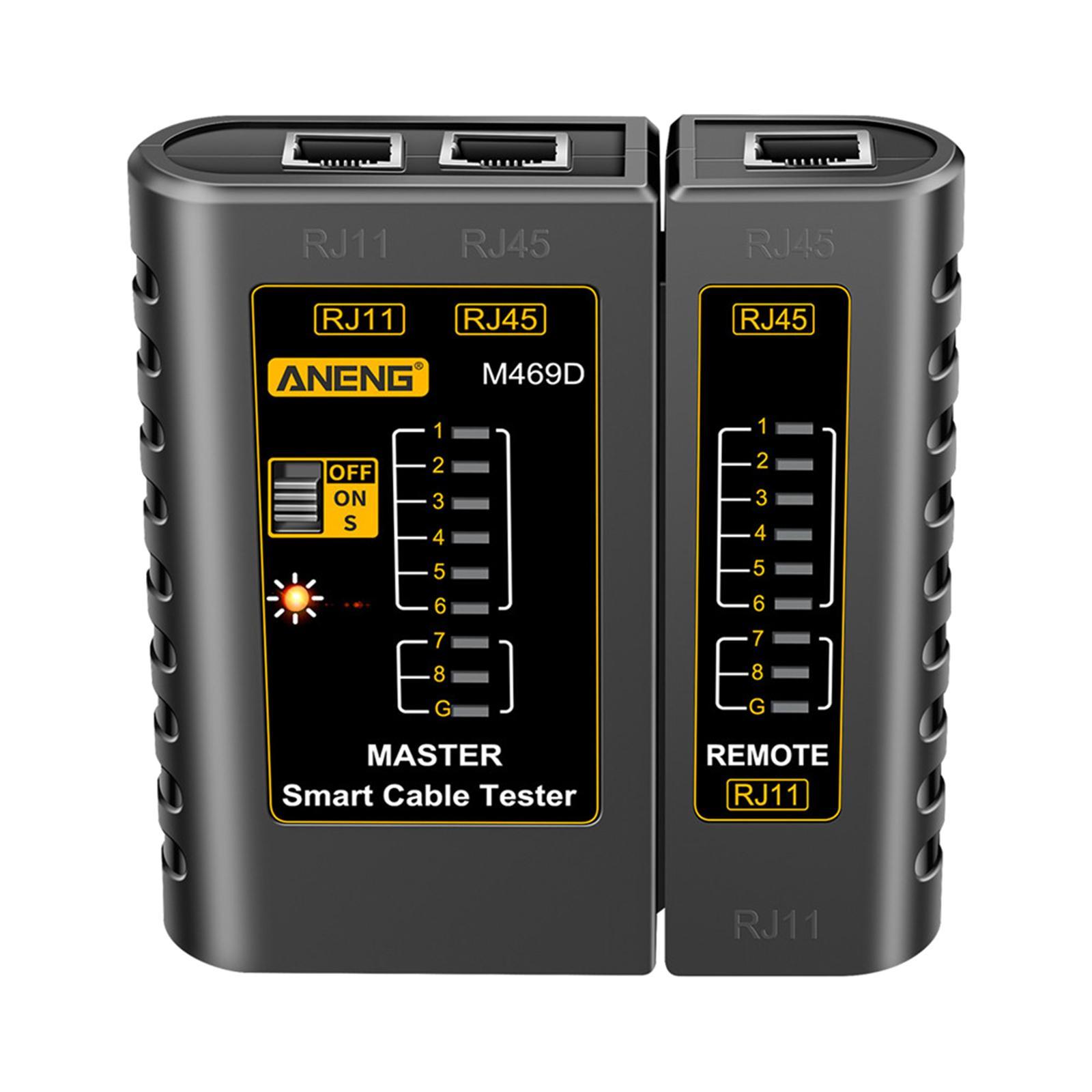

Ethernet Cable Tester Network Testing Tool for Network

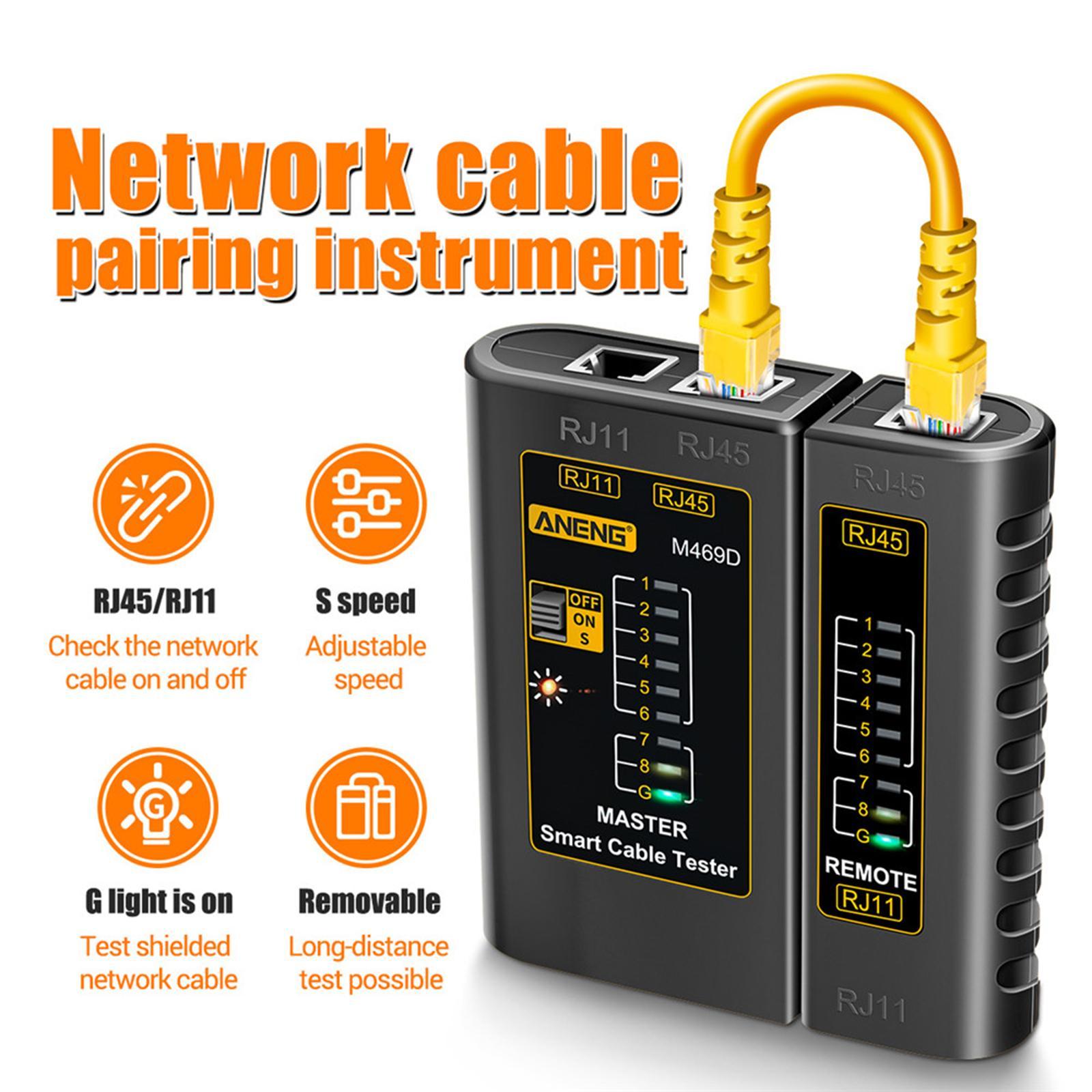

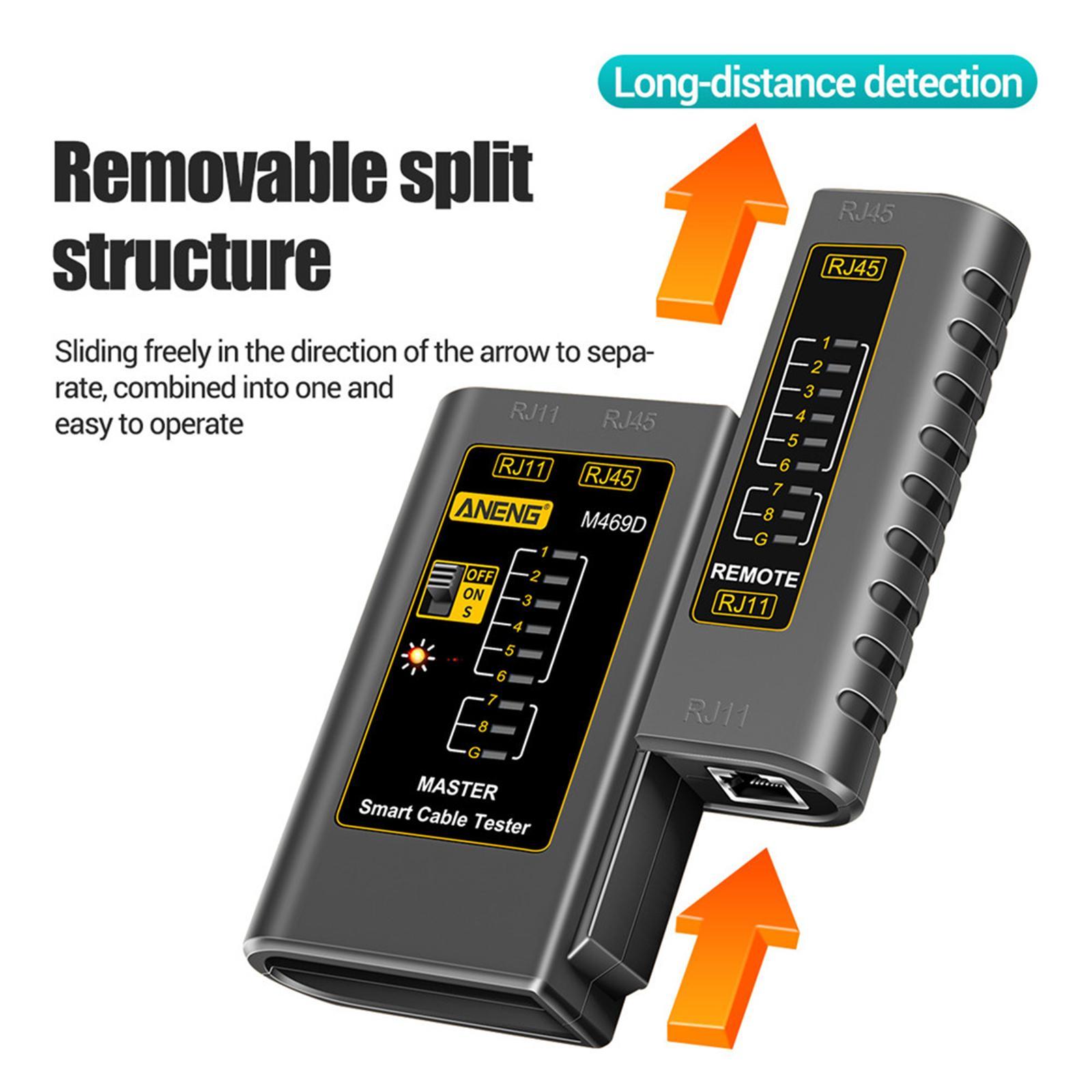

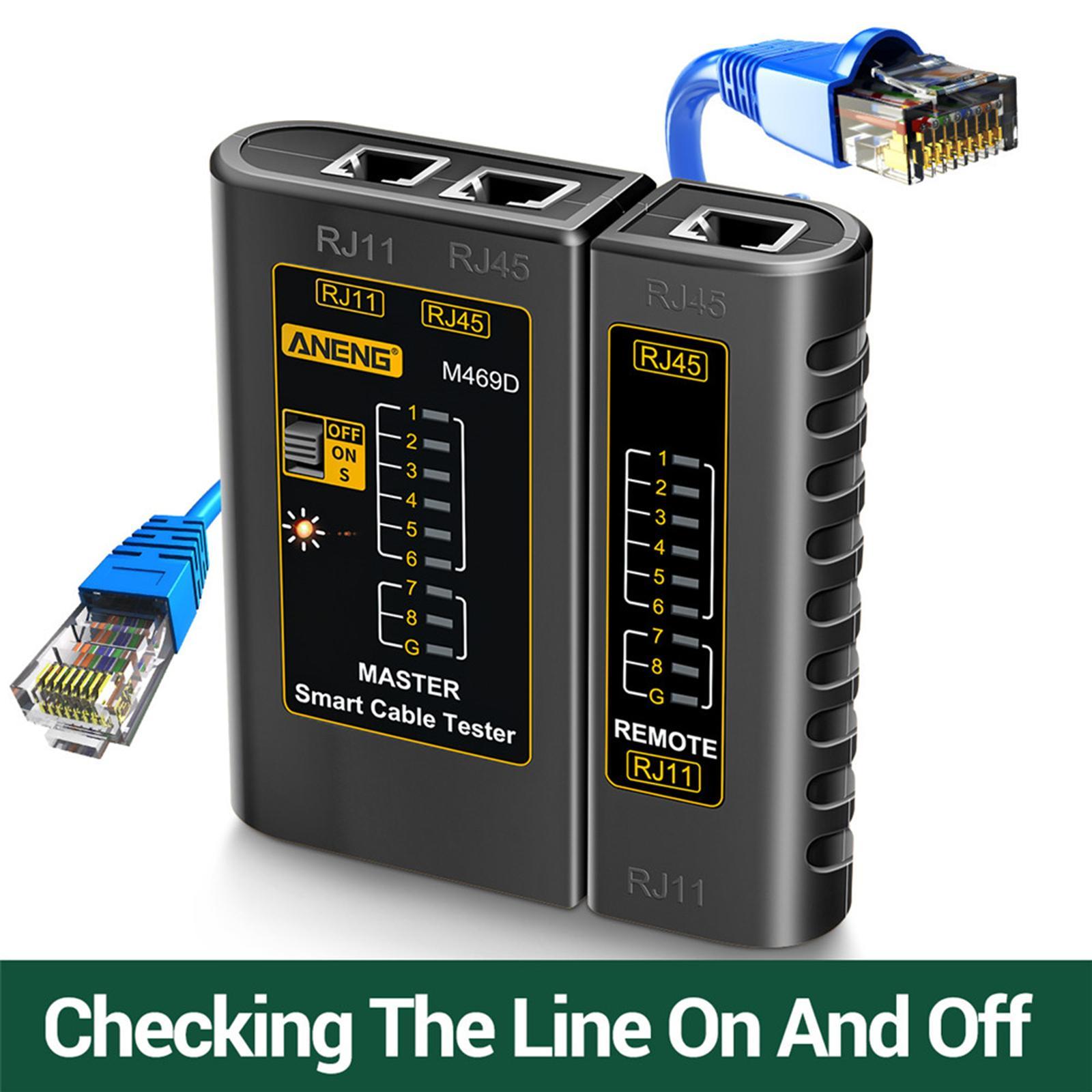

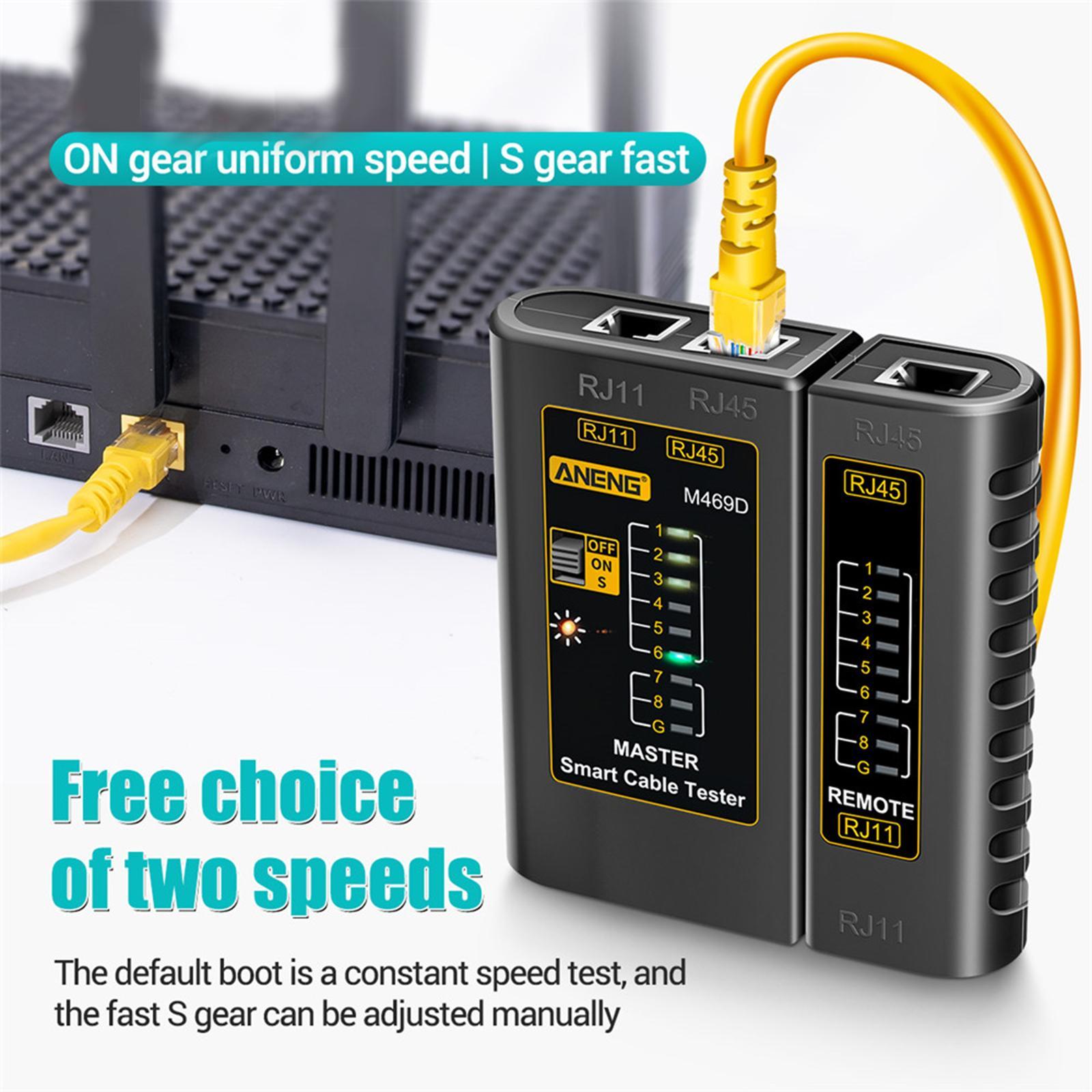

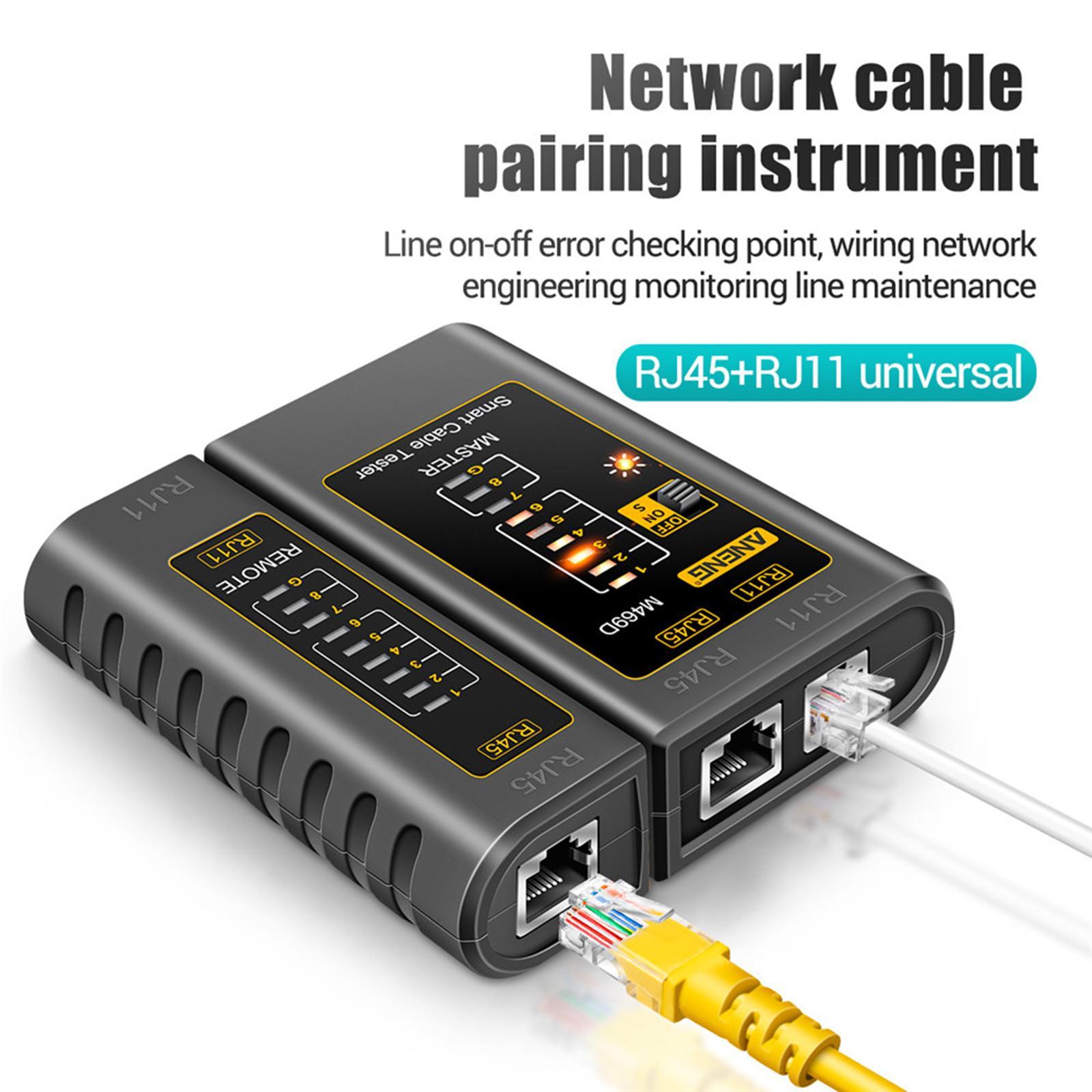

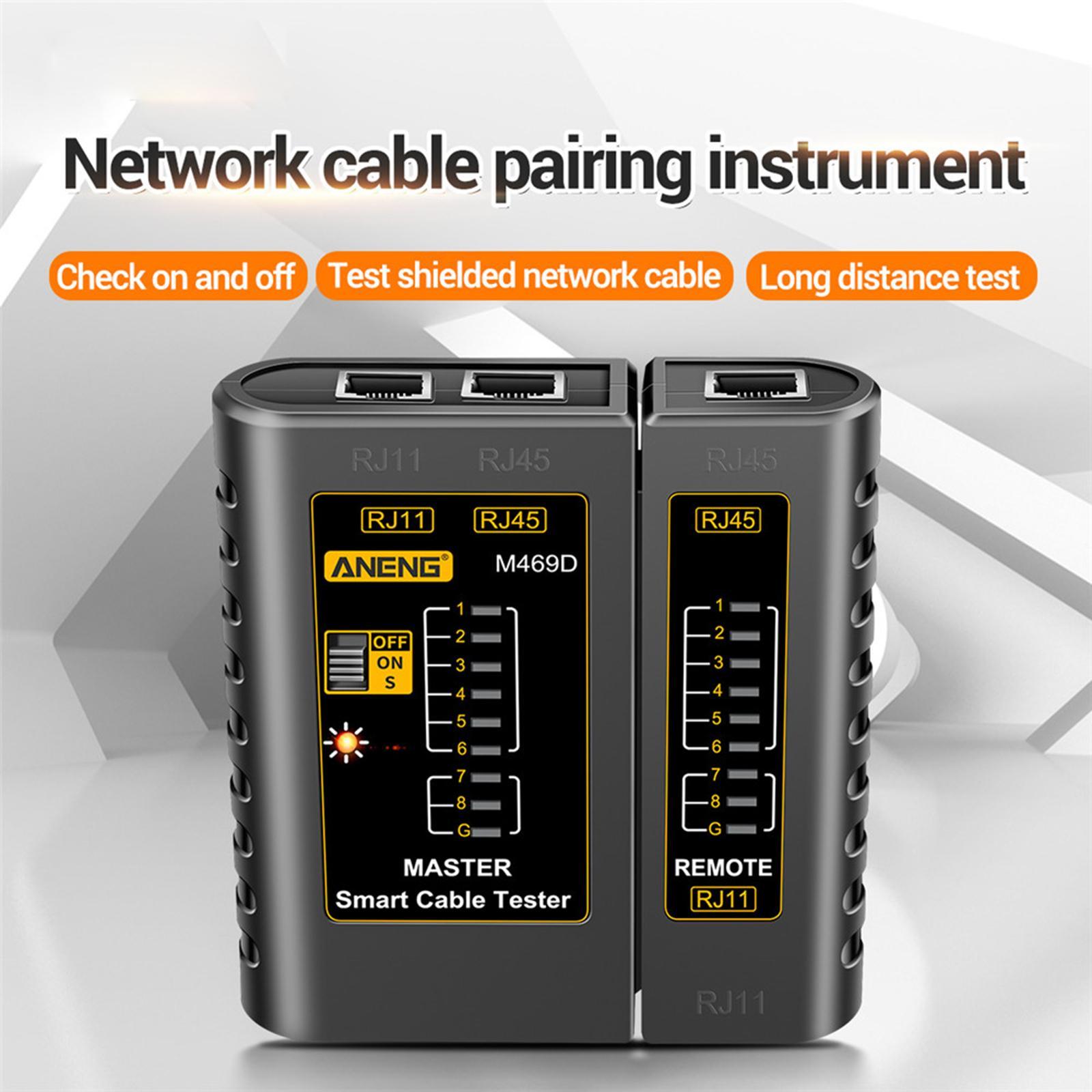

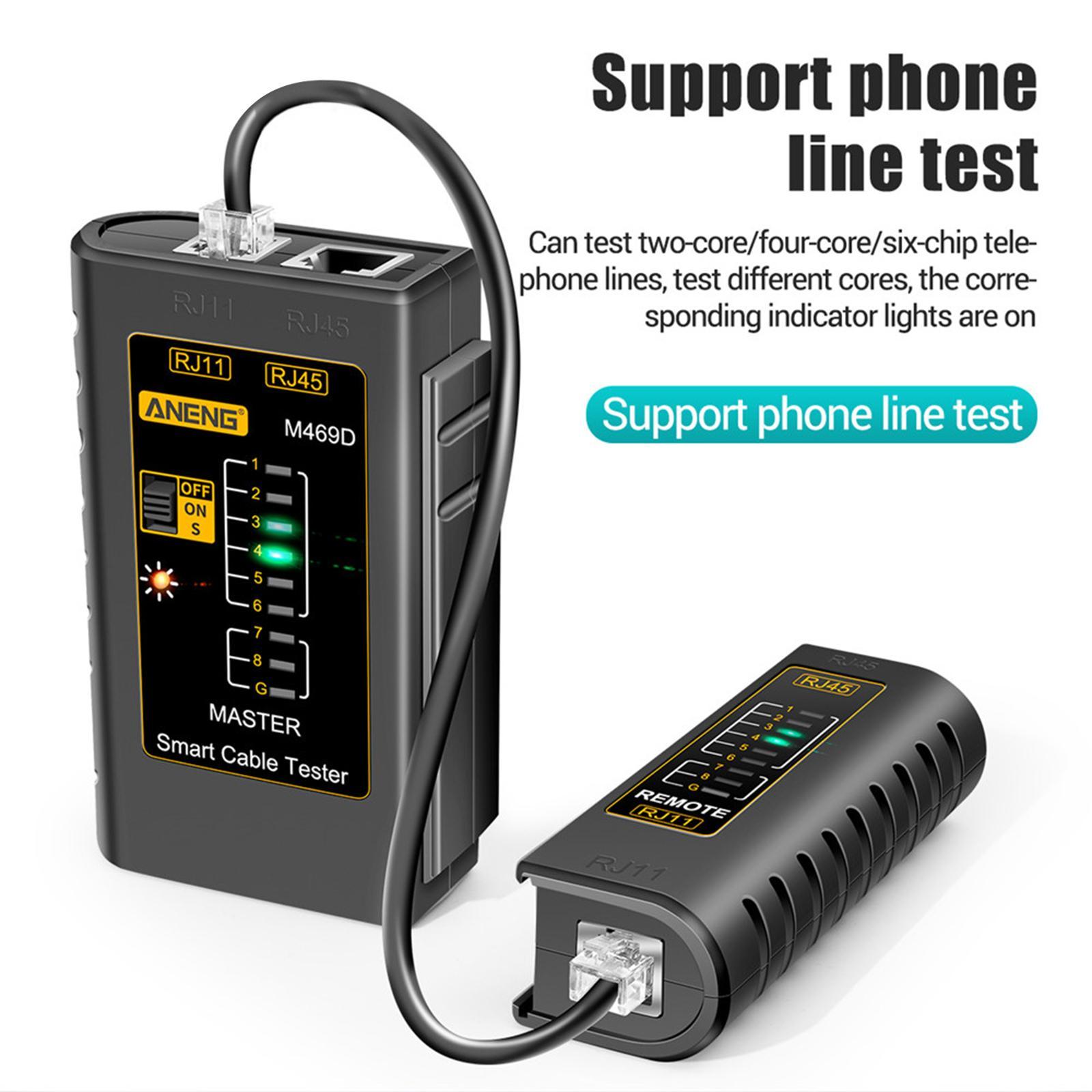

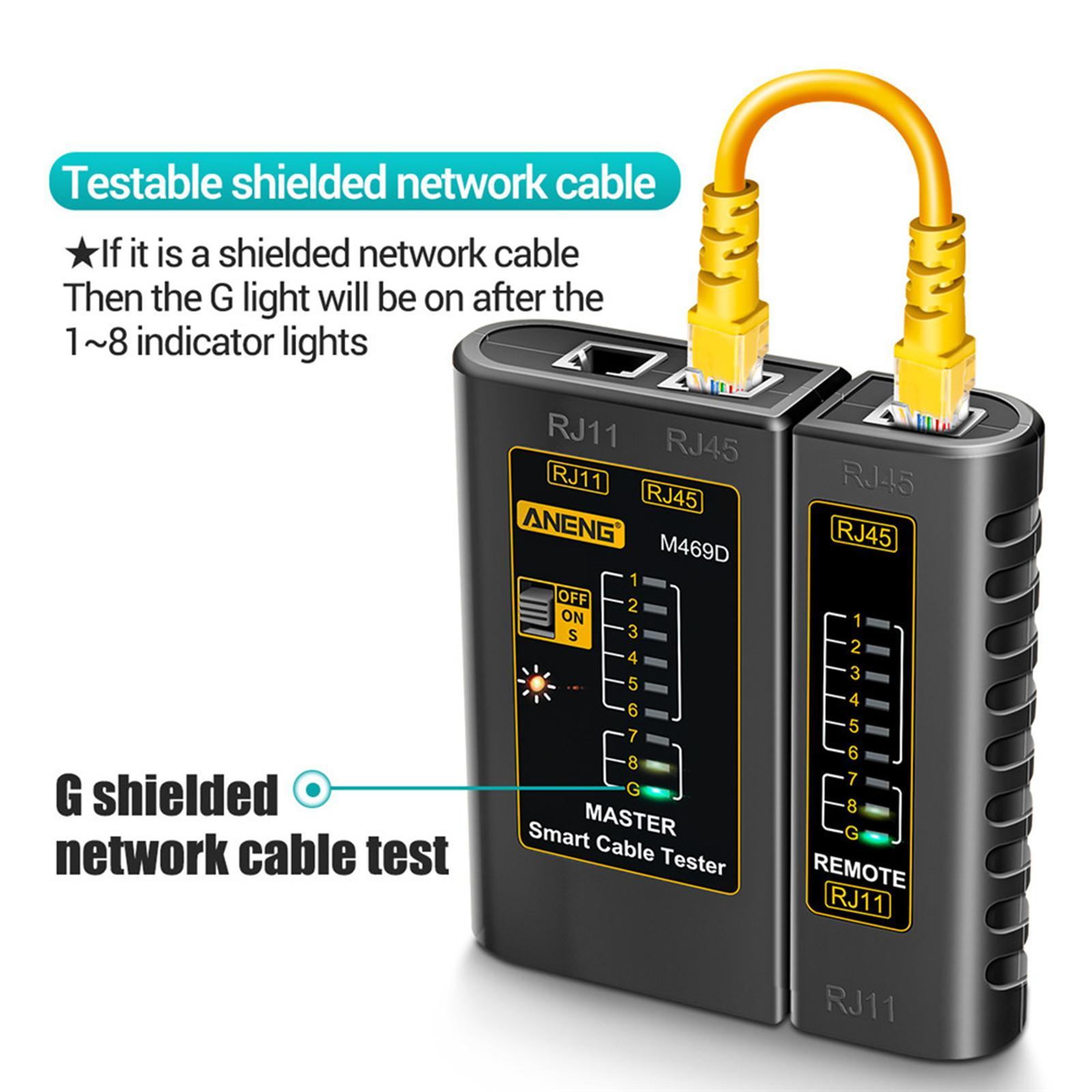

Description: Designed for test the wire circuit state of network cable, telephone cable, such as open, short, crossing, etc. Ethernet cables and /RJ11 cables. With this network cable tester, you can judge wrong connection, short circuit and open circuit.This model adopt automatic scan model, which can rapidly get a test result. Network Cable Tester tests double-twisted cables 1, 2, 3, 4, 5, 6, 7, 8 and Ground.Compact and light weight network cable tester, useful for home and outside tester has a detachable section making it perfect for testing cable runs in different locations.Following are abnormal connections: If one cable, for example cable NO.3 is open circuited, the two NO.3 lights of the main tseter and remote tester will not turn on. If several cables are not connected, several lights will not turn on respectively. If less than two cables are conntected, none of the lights is on. If two ends of a cable is disordered, for example NO. 2 and NO. 4, then displays on: Main tester: 1-2-3-4-5-6-7-8-G // Remote tester: 1-4-3-2-5-6-7-8-GIf two cables are short circuited, neither of the corresponding lights is on of the remote tester while main tester remains unchanged. If three cables, including three, are short circuited, none of the corresponding liaghts is on. If test patch panels or wall plate outlels, two cables which can match each other () will be connected to the tester. If test cables of the same axes, BNC turns on when the cable works. Specification: Color: Black,Yellow (Optional)Type: Network cable testerModel: M469DMaterial: ABSBattery Type: 9V 6F22Main tester: 1-2-3-4-5-6-7-8-GRemote tester: 1-2-3-4-5-6-7-8-G / 1-2-3-4-5-6 RJ11 Size Chart: 103x97mm/4.06x3.82inch Package Includes: 1*Cable Lan Tester Giá sản phẩm trên Tiki đã bao gồm thuế theo luật hiện hành. Bên cạnh đó, tuỳ vào loại sản phẩm, hình thức và địa chỉ giao hàng mà có thể phát sinh thêm chi phí khác như phí vận chuyển, phụ phí hàng cồng kềnh, thuế nhập khẩu (đối với đơn hàng giao từ nước ngoài có giá trị trên 1 triệu đồng).....
