Holybro Kakute F7 mini V3

5.0
1 đánh giá

Kakute F7 mini V3 Specifications: MCU: STM32F722RET6 32-bit processor,216MHz, 256Kbytes RAM, 512Kbytes Flash IMU: MPU6000 (SPI) Barometer: BMP280 USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART) 5hardware UARTS (UART1,2,3,4,6) Suppor

929.000
Share:
4.9/5

Đánh giá

1.221

Theo Dõi

1.012

Nhận xét

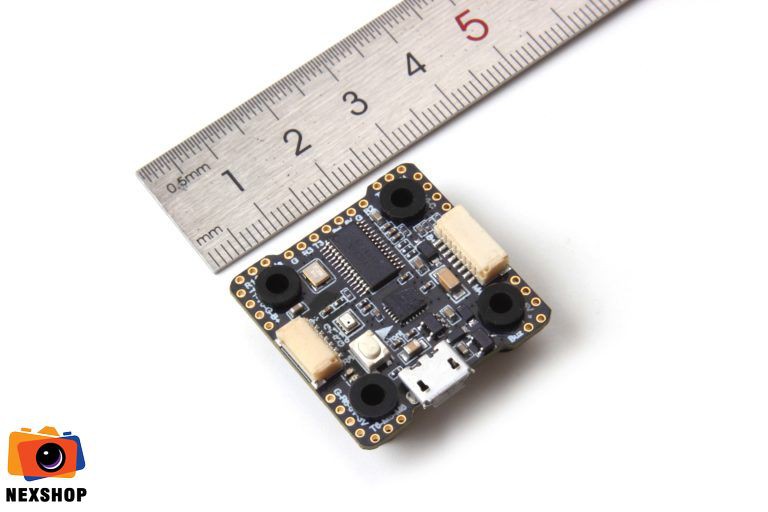

Kakute F7 mini V3 Specifications: MCU: STM32F722RET6 32-bit processor,216MHz, 256Kbytes RAM, 512Kbytes Flash IMU: MPU6000 (SPI) Barometer: BMP280 USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART) 5hardware UARTS (UART1,2,3,4,6) Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only. PPM and PWM receivers are not supported. Onbord 16Mbytes for Blackbox logging 5V Power Out: 1.0A max 3.3V Power Out: 0.2A max Dimensions: 30x30mm Mounting Holes: Standard 20mm square to center of holes Weight: 4g Pinout Diagram:
