Mô Đun Đếm Khoảng Cách Hiển Thị Màn Hình Lcd

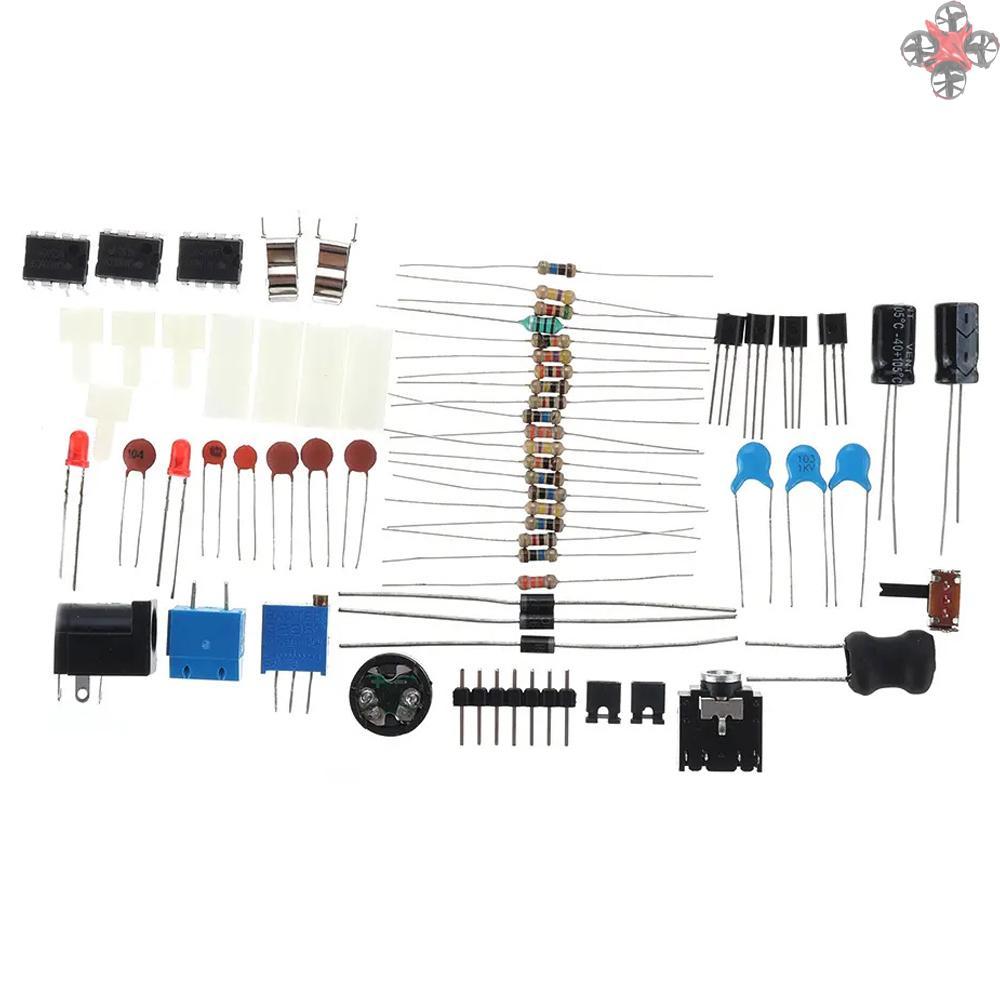

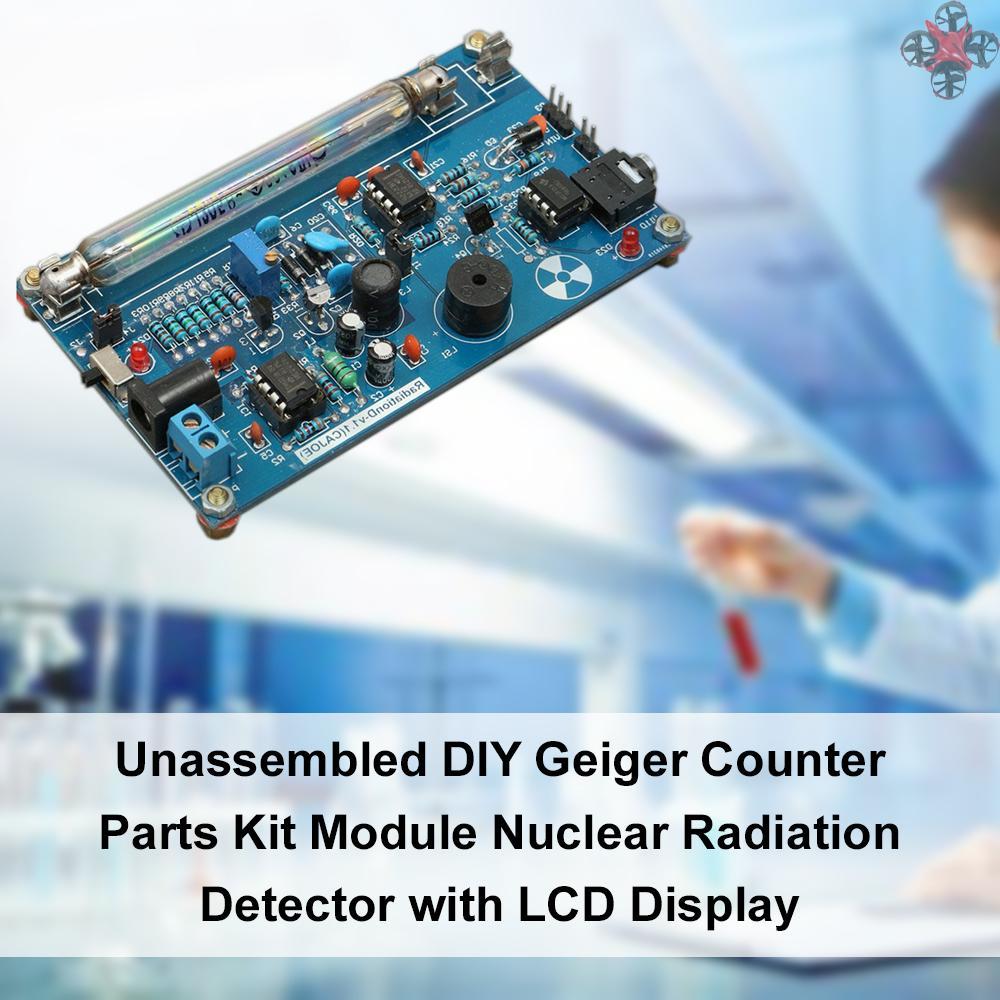

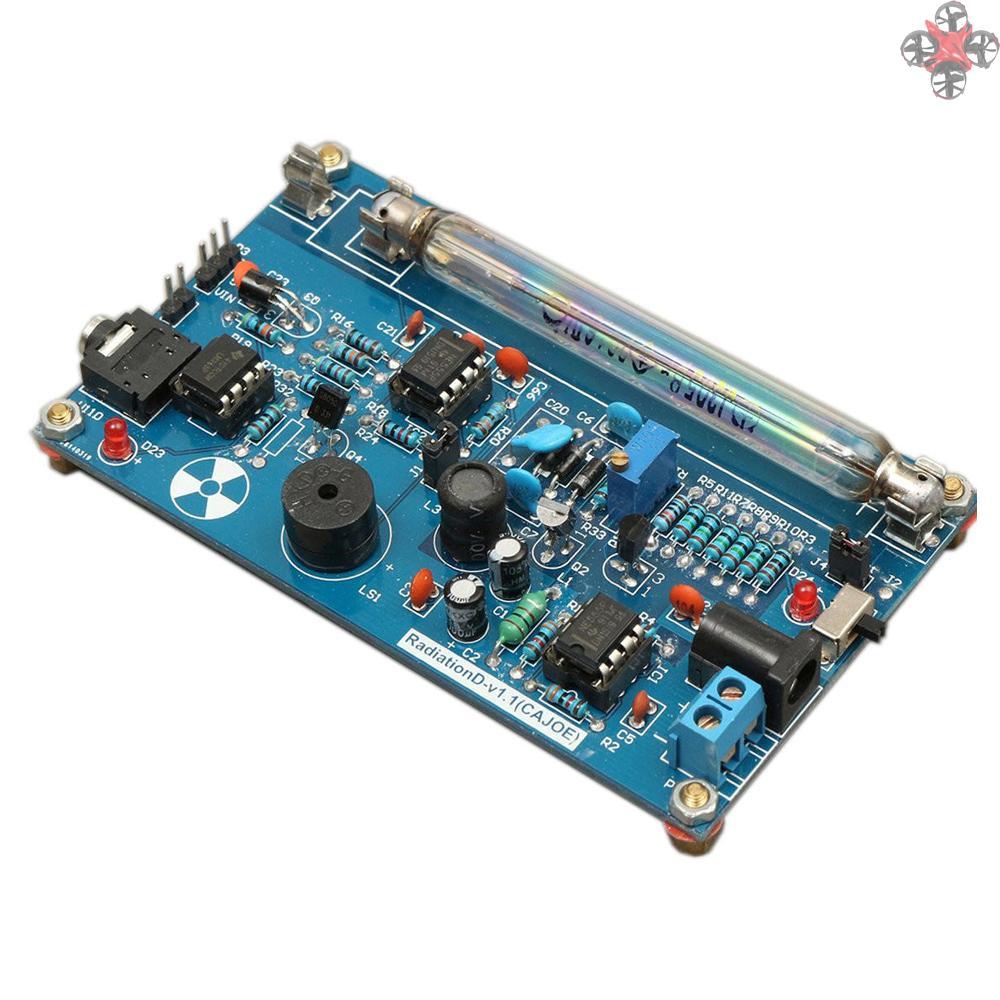

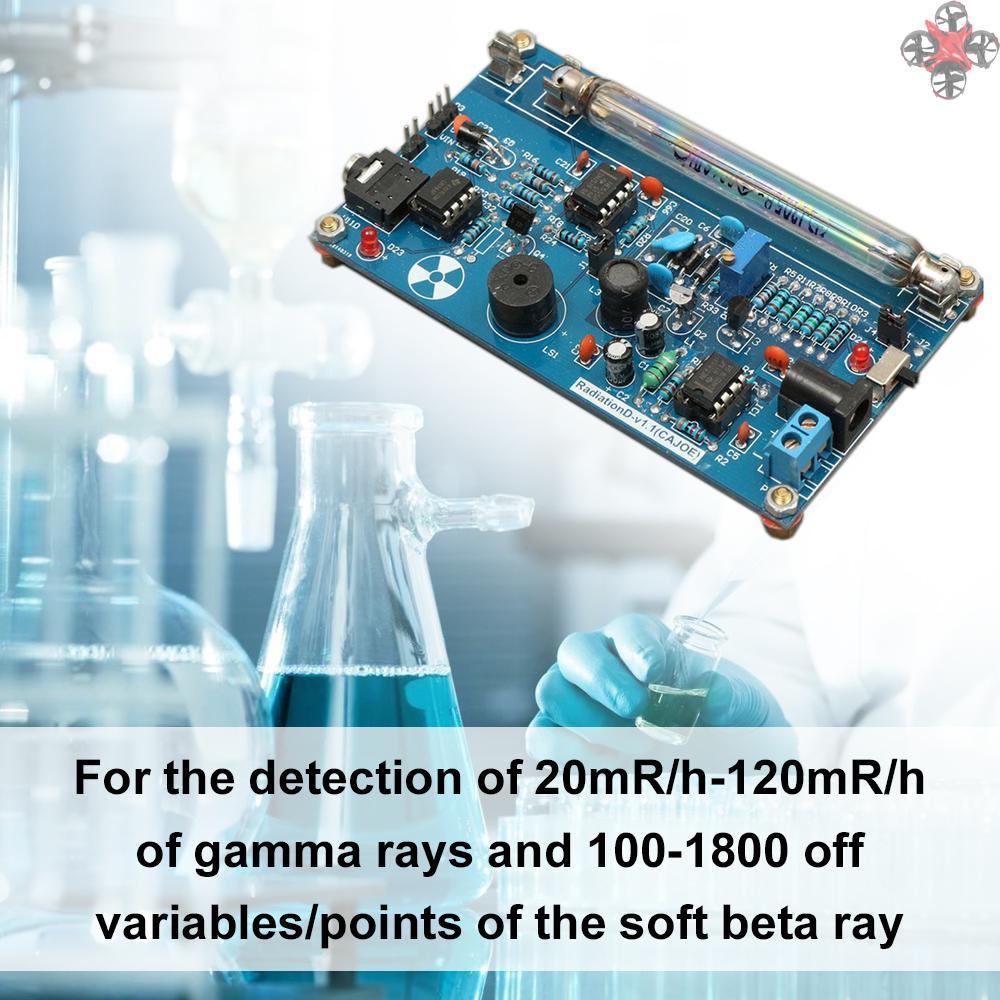

This is a set of fine quality nuclear radiation detect module unassembled parts set, plug it and you can directly measured nuclear radiation. For the detection of 20mR/h-120mR/h of gamma rays and 100-1800 off variables/points of the soft beta ray. You can have a try. Features: 5V power supply, or 3 * 1.5V battery; 4 * 1.2V battery, current: 30mA - 120mA. For the detection of 20mR/h-120mR/h of gamma rays and 100-1800 off variables/points of the soft beta ray. Equipped with sound and light alarm. Interrupt the output interface, through this interface can be connected to the microcontroller and then displayed on the LCD display. Supports most of the Geiger tube: M4011, STS-5, SBM20, J305, etc. (the 330-600V operating voltage of the Geiger tube can be supported). Support the computer (PC) data acquisition, Matlab analysis and processing. Detection of nuclear radiation work (copy the following link to the browser to watch): Customers using our Geiger counter to record the video: Compatible with: (recommended UNOR3, or any other arbitrary with 5V and external interrupt INT) Internet can be downloaded: SPI example for Radiation Logger Logger Radiation can be used as the host computer software to build radiation monitoring station. Specifications: Model: GC-1602-NANO Material: electronic component Geiger tube parameters: Technical parameters diameter: Φ10±0.5mm Total length: 90±2mm Recommended operating voltage: 380V Minimum plateau length: 80V Maximum plateau slope: 10%/80V Extreme operating voltage: 550V The maximum count rate: 25 times / min Life: > 1 * 10^9 pulse Medium temperature: -40 to 55 ℃ Item size: 108 * 63 * 20mm / 4.25 * 2.48 * 0.79in Item weight: 100g / 3.53ounce Package size: 120 * 80 * 40mm / 4.72 * 3.15 * 1.57in Package weight: 150g / 5.29ounce Packing List: 1 * Unassembled Radiation Detector Module Set Giá sản phẩm trên Tiki đã bao gồm thuế theo luật hiện hành. Bên cạnh đó, tuỳ vào loại sản phẩm, hình thức và địa chỉ giao hàng mà có thể phát sinh thêm chi phí khác như phí vận chuyển, phụ phí hàng cồng kềnh, thuế nhập khẩu (đối với đơn hàng giao từ nước ngoài có giá trị trên 1 triệu đồng).....
