Mô-Đun điều chỉnh điện áp USB 5V - 3.3V 9V 12V 18V 24V

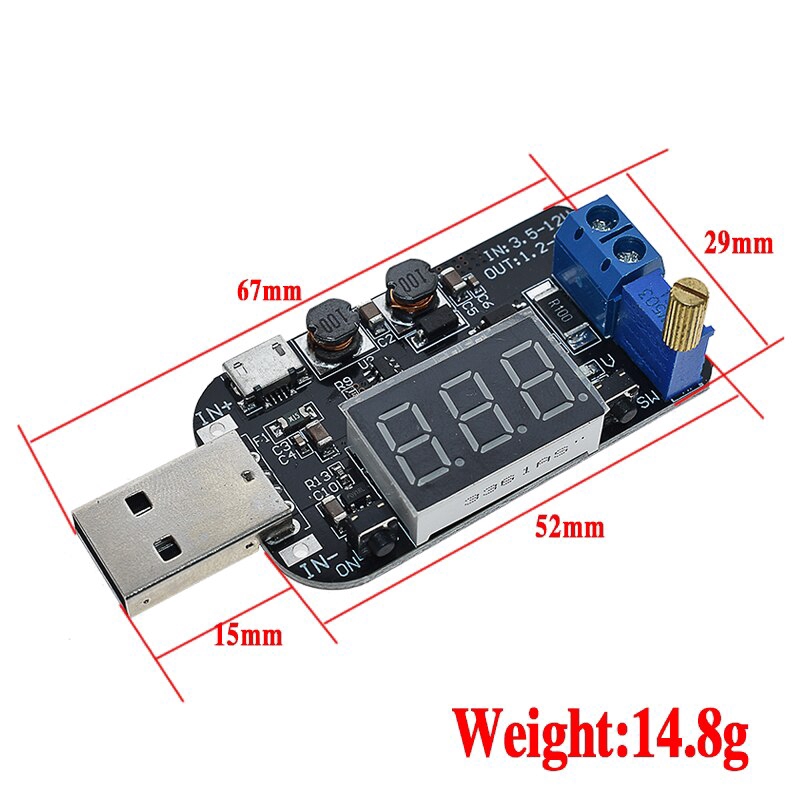

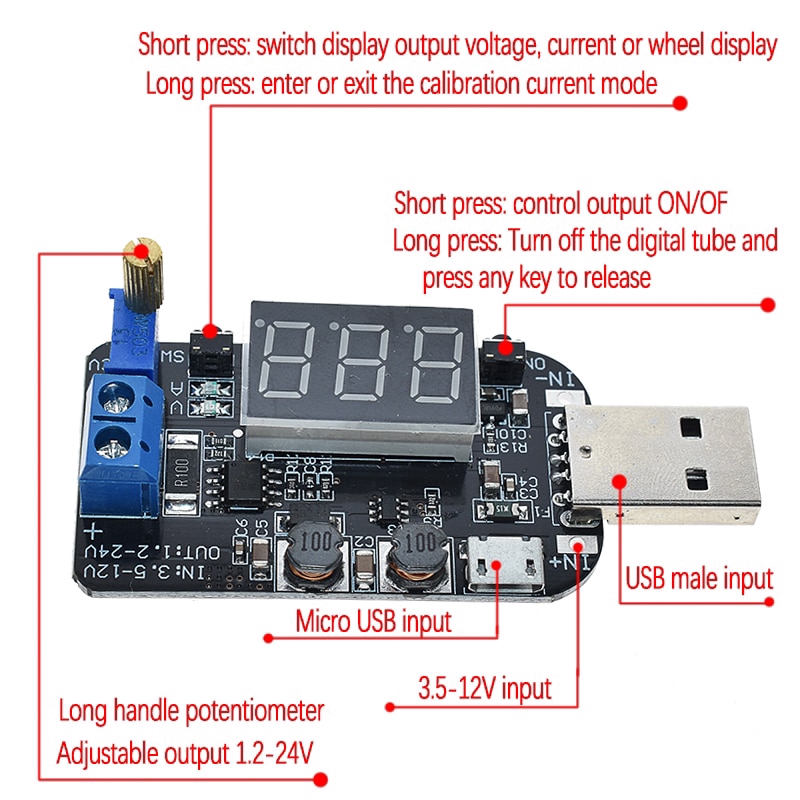

5V to 3.3V 9V 12V 18V 24V Adjustable Buck-Boost Power Supply Module 1.Description: ZK-DPL is a DC adjustable step up/down power supply module with LED digital tube display.Display output voltage and output current.Adjustable output voltage.Set output voltage to meet the require.Simple and efficient, practical. 2.Features: 1>.3-Bit digital tube display 2>.Three input power modes 3>.High resolution 4>.Multiple parameters can be displayed in turn 5>.Low power supply 6>.Support power saving mode 7>.Support enable output mode 3.Parameters: 1>.Product Name:ZK-DPL DC-DC 3W Buck Boost Voltage Converter 2>.Product Number:ZK-DPL 3>.Input Voltage for Pads:DC 3.5V-12.0V 4>.Input Voltage for USB:DC 5.0V 5>.Output Voltage:DC 1.2V-24.0V 6>.Output Power:3W(Max) 7>.Conversion efficiency:95% 8>.Working Temperature range:-20°~85° 9>.Working Humidity Range:0%-95%RH 10>.Size:68*30*22mm 4.Button/Potentiometer/LED introduction: 1>.Long press means need keep press for more than 3second. 2>.Button ON:Short press to turn ON or OFF output voltage.Long press is used to turn ON or OFF screen meanwhile voltage keep output. 3>.Button SW:Short press to switch display output voltage,output current or display these parameters in turn.Long press is used to enter or exit calibration mode. 4>.CV Potentiometer:Adjust output voltage.Increase the output voltage when rotating clockwise.Please rotate the CV potentiometer 10 turns in counterclockwise if the output voltage cannot be adjusted. 6>.V LED:Red indicator.It will turn ON when display output voltage. 7>.A LED:Blue indicator.It will turn ON when display output current. 8>.Input terminal:There are three input methods: 8.1>.Method 1:Standard Type A USB Male .It just can input DC 5V. 8.2>.Method 2:Micro USB Female.It just can input DC 5V. 8.3>.Method 3:IN+ and IN- pads.It can input DC 3.5V-12.0V. 8.4>.It can only choose one input method. 9>.Output terminal:KF-301-2P 5.08mm blue terminal. It can output DC 1.2V-24.0V. 5.Accuracy Calibration: 1>.ZK-DPL can calibrate output voltage and output current accuracy. 2>.Calibrate output voltage accuracy:Long press button SW when display output voltage into calibrate output voltage.Then the screen will flashing.Short press button ON to decrease value.Short press button SW to increase value.Long press button SW again to save and exit setup mode.Press multiple times to change value. 3>.Calibrate output current accuracy:Long press button SW when display output current into calibrate output current.Then the screen will flashing.Short press button ON to decrease value.Short press button SW to increase value.Long press button SW again to save and exit setup mode.Press multiple times to change value.The higher the current, the more accurate the calibration value.It can not display if output current is less than 10~30mA. Use steps and precautions, please see the picture details #USB #Micro USB #5V #3.3V #9V #12V #18V #24V #Adjustable #Buck-Boost #Power #Voltage #Regulator #Module #LED #Display
