Mô Đun Cảm Biến Siêu Âm Chống Nước Jsn-Sr04T

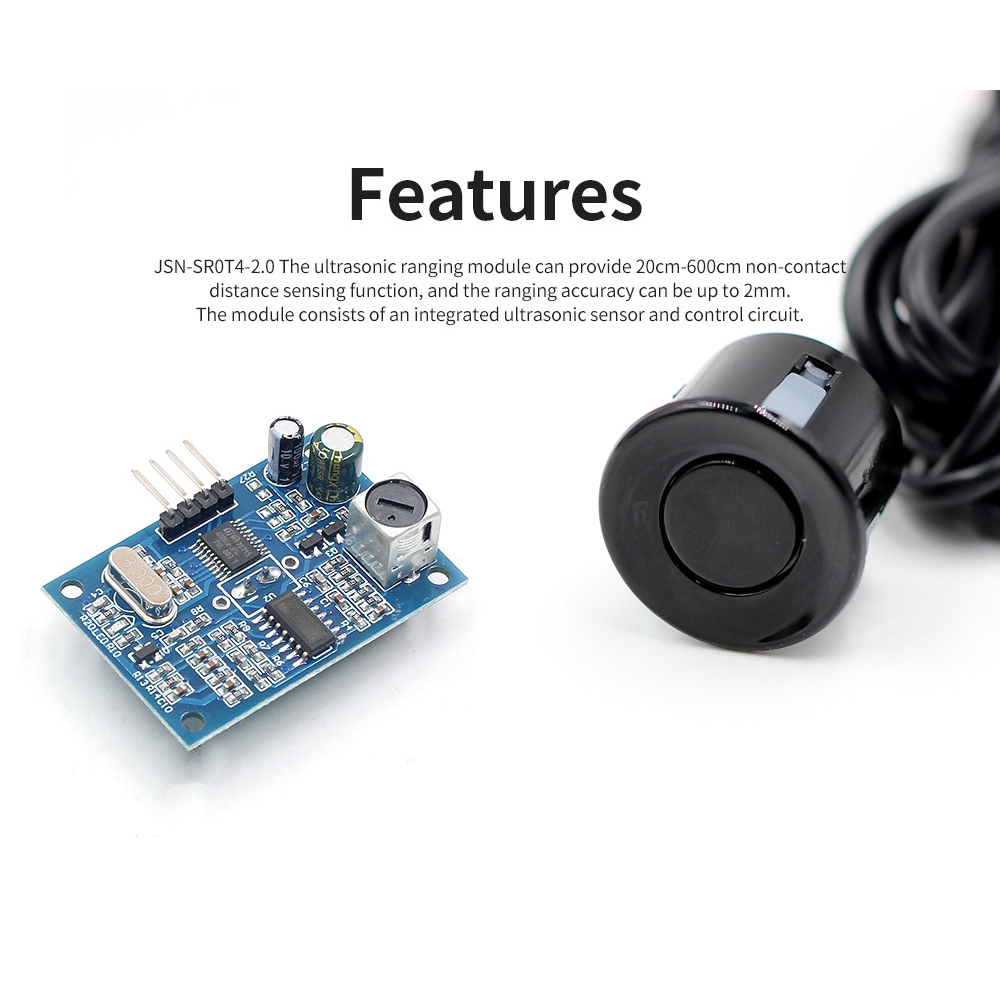

Waterproof Ultrasonic Module JSN-SR04T Water Proof Integrated Distance Measuring Transducer Sensor for Arduino 1, the module performance and stability, measure the distance accurately. Can and abroadSRF05, SRF02Such as ultrasonic ranging module comparable.Module high-precision, blind (25cm), stable range is the success of this product to the market a strong basis. OElectrical performance: Lead length 2.5M OProduct Features: 1, Small size, easy to use; 2, Low voltage, low power consumption; 3, High measurement accuracy; 4, Strong anti-interference; 5, Integrated closed water with a line probe for wet, harsh measurement occasions. OApplications: 1, the horizontal range; 2, obstacle avoidance, automatic control; 3, Objects close, there is perceived 4, traffic control; 5, security, industrial control; 6, Artificial intelligence, teaching and research The basic working principle: (1)Using IOTRIGTrigger ranging, to at least 10us high-level signal; (2)The module automatically sends8A 40khz square wave, automatically detect whether there is signal return; (3) There is a signal return via IOECHOOutput oneAHigh, high duration is the time from the launch of the ultrasound to the return.Test distance = (high time * sound speed (340M / S)) / 2; The use of this module is simple, a control mouth made a 10US above the high level, you can wait for the reception of high-level output. An output can be opened timer time, when the mouth becomes low when you can read The value of the timer, this time for the distance of time, can calculate the distance. Such a continuous cycle measurement, which can be measured to achieve the value of your move. Before purchase: 1.All the goods are ready stock, we will arrange the shipment at once if we receive the order. 2.Please read the item description, if you have any question, do not hesitate to contact us. 3.No warranty,if you receive a defect item,please contact us at once with item picture. 4.Use the vouchers for more saving. Shipment： 1.1-2 days to ship(except for the pro-order item) and 10-15 days shipment. 2.If you have not received the item after 15 days shipment,Please contact us. After purchase: 1.If you are satisfied，please give us 5 stars praise. 2.Please contact us before you are going to give us bad review. We are helpful and will solve the problems. if you receive a defect item,please contact us at once with item picture or video #Waterproof #Ultrasonic Module #JSN-SR04T #Water Proof #Integrated #Distance Measuring #Transducer Sensor #Arduino
