Mô Đun Truyền Tín Hiệu Bluetooth 5.0 Cc2541

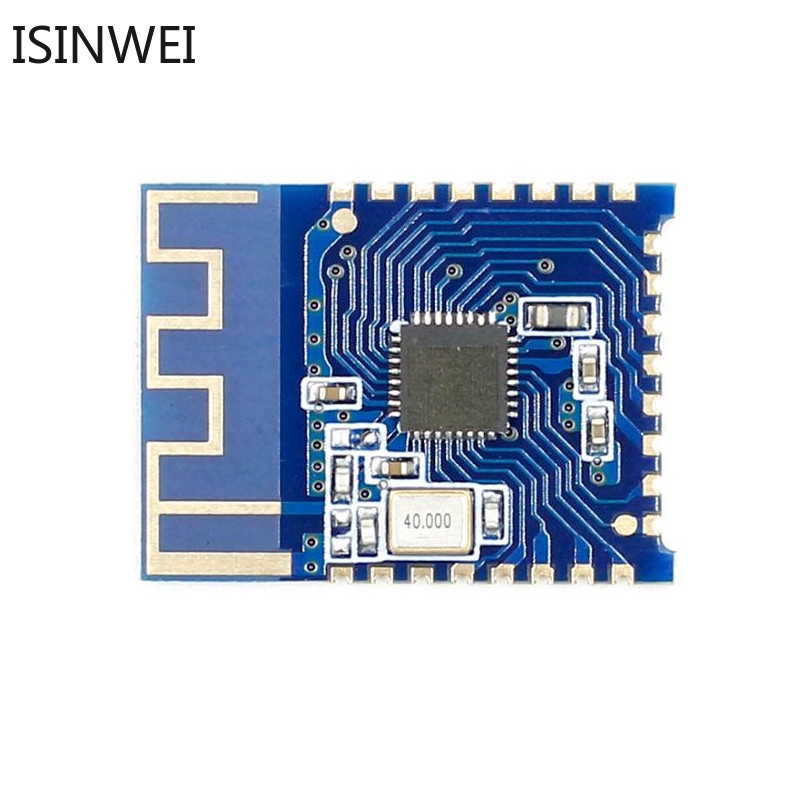

JDY-23 Bluetooth 5.0 module BLE5.0 Bluetooth transparent transmission digital transmission CC2541 JDY-23 product parameters Model: JDY-23 Working frequency: 2.4G Transmitting power: 4db (maximum) Communication interface: UART Working voltage: 1.8V – 3.6V Workin
isinwei.vn
@isinwei.vnĐánh giá
Theo Dõi
Nhận xét
Thương hiệu
No Brand
JDY-23 Bluetooth 5.0 module BLE5.0 Bluetooth transparent transmission digital transmission CC2541 JDY-23 product parameters Model: JDY-23 Working frequency: 2.4G Transmitting power: 4db (maximum) Communication interface: UART Working voltage: 1.8V – 3.6V Working temperature: -40 ℃-80 ℃ Antenna: Built-in PCB antenna Receiving sensitivity: -97dbm Transmission distance: 60 meters Master-slave support: slave Module size: 19.6 * 14.94 * 1.8 mm (length, width and height) Bluetooth version: BLE 5.0 (compatible with BLE4.0, BLE4.2) Wake state current: 800uA (with broadcast) Light sleep current: <50uA (with broadcast) Deep sleep current: 9uA (no broadcast) Instruction parameter saving: Parameter configuration power-saving data is saved SMT welding temperature: <260 ℃ rf-TX / RX peak current: 5mA We deal in wholesale and retail Feel free to contact us #JDY-23 #Bluetooth5.0 #module #BLE5.0 #CC2541 #Bluetooth
