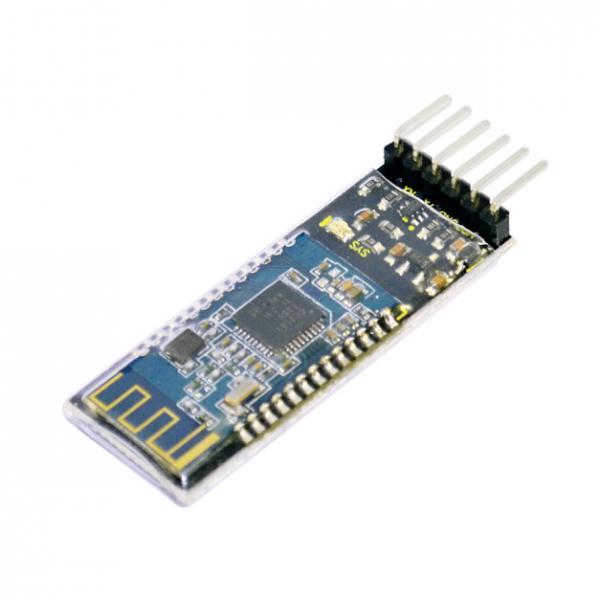

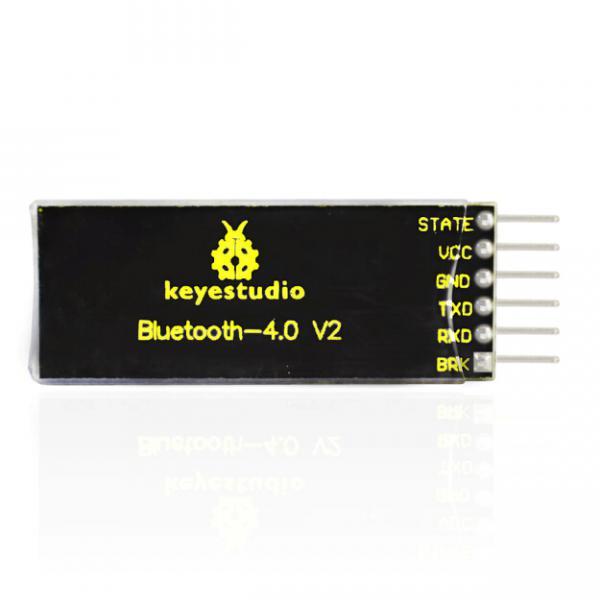

Mini 10 Bluetooth V4.0 Wireless Board Module for DIY
Description: keyestudio HM-10 -4.0 V2 adopts TI CC2541 chip, configuration space of 256Kb It supports AT command. Users can modify working mode (master/slave), baud rate, device na...

Rumple Tech
@rumple-techĐánh giá
Theo Dõi
Nhận xét
Sản phẩm có được bảo hành không?
Không
Xuất xứ
China
Xuất xứ thương hiệu
China
Thương hiệu
OEM
Description: keyestudio HM-10 -4.0 V2 adopts TI CC2541 chip, configuration space of 256Kb It supports AT command. Users can modify working mode (master/slave), baud rate, device name, paring password etc. protocol: Specification V4.0 BLE No byte limit in serial port Transceiving In open environment, realize 100m ultra-distance communication with iphone4s Specification: USB protocol: USB V2.0 Working frequency: 2.4GHz ISM band Modulation method: GFSK(Gaussian Frequency Shift Keying) Transmission power: -23dbm, -6dbm, 0dbm, 6dbm, can be modified by AT command Sensitivity: ≤-84dBm at 0.1% BER Transmission rate: Asynchronous: 6K bytes/Synchronous: 6k Bytes Security feature: Authentication and encryption Supporting service: Central & Peripheral UUID FFE0, FFE1 Power consumption: Auto sleep mode, stand by current 400uA~800uA, 8.5mA during transmission. Power supply: 5V DC Working temperature: –5 ~ +65 Centigrade Size: 4.7 cm x 1.7 cm x 0.8 cm Package Includes: 1 x board Giá sản phẩm trên Tiki đã bao gồm thuế theo luật hiện hành. Bên cạnh đó, tuỳ vào loại sản phẩm, hình thức và địa chỉ giao hàng mà có thể phát sinh thêm chi phí khác như phí vận chuyển, phụ phí hàng cồng kềnh, thuế nhập khẩu (đối với đơn hàng giao từ nước ngoài có giá trị trên 1 triệu đồng).....
