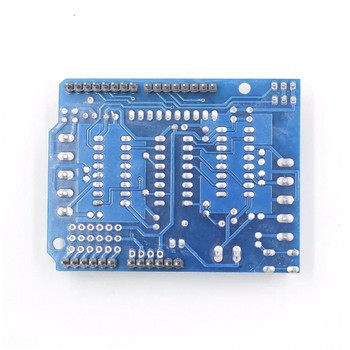

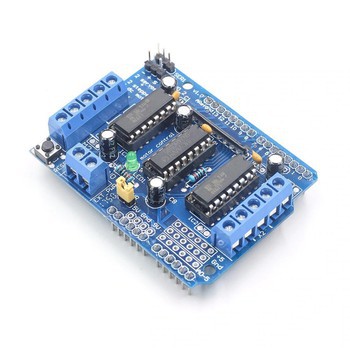

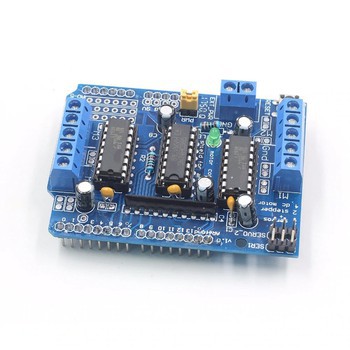

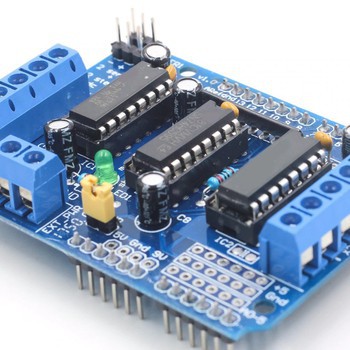

Motor Driver Shield L293D

Multi-Motor Driver Shield (2-L293D) Four H-Bridges: Two L293D Motor driver chips L293D is rated at 0.6A per bridge (1.2A peak) with thermal shutdown protection, internal kickback protection diodes. Motor Voltages from 4.5VDC to 16VDC. (up to 36V if C6 and C7 are upgraded) Up to 4 bi-directional DC motors with individual 8-bit speed selection (256 speeds) Up to 2 stepper motors (unipolar or bipolar) Pull down resistors keep motors disabled during power-up Separate Logic and Motor power connections Terminal block connectors for motors and power 2 connections for 5V 'hobby' servos
