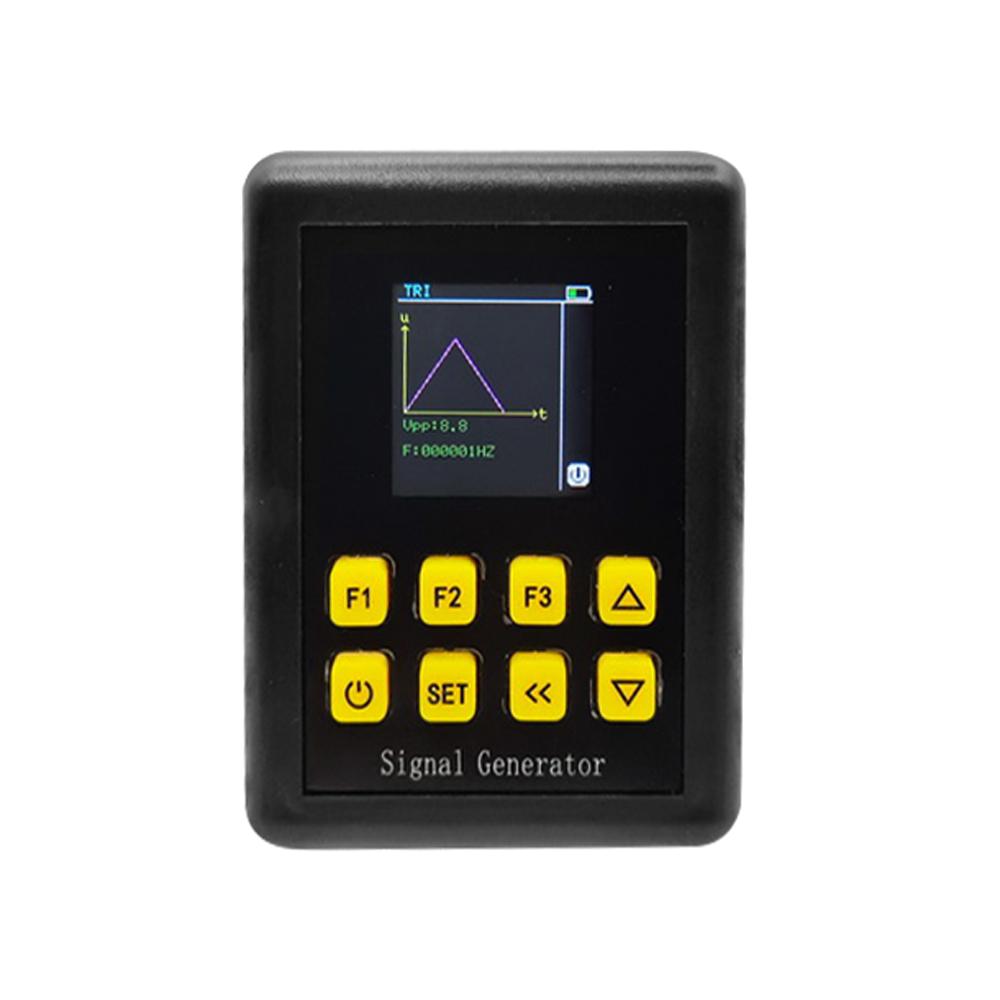

Multifunctional Handheld Signal Generator PWM Pulse Signal Source Sine and Trianglar Waves Modes Adjustment 0-20mA Current 0-10V Voltage Adjustable Device

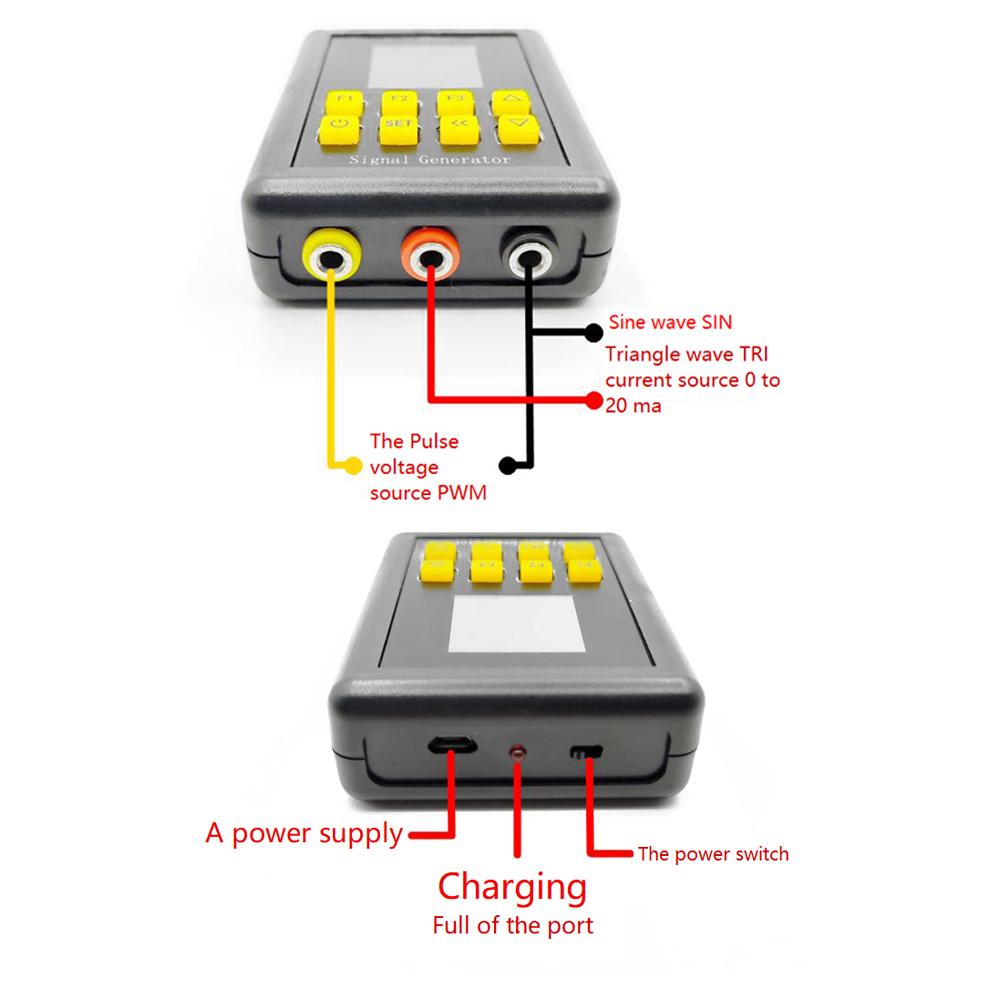

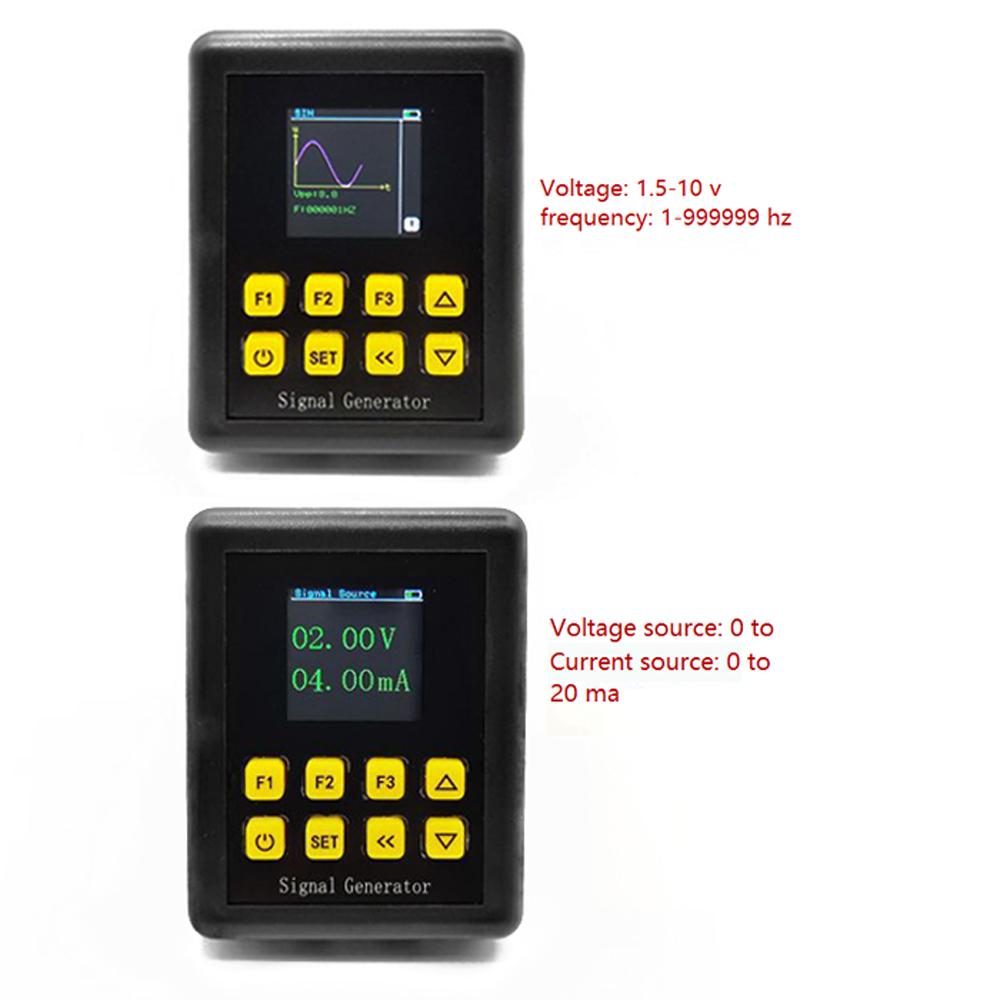

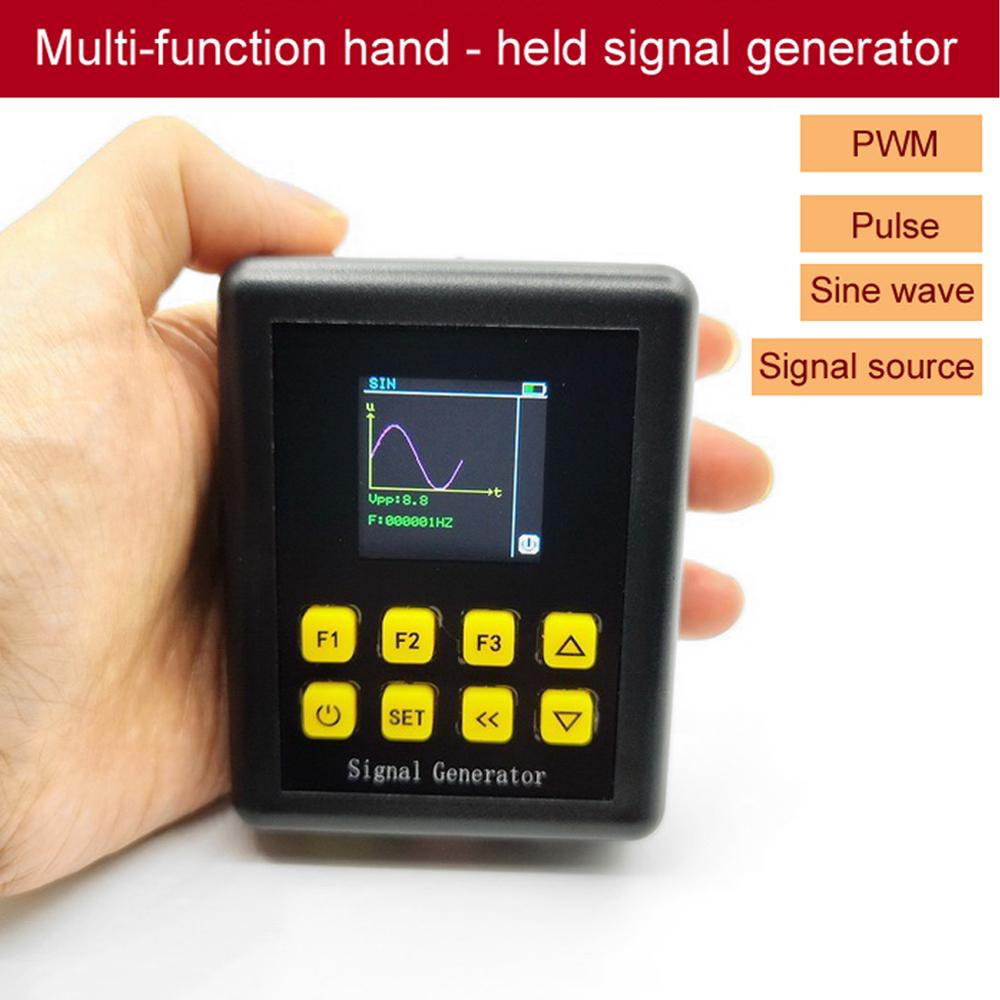

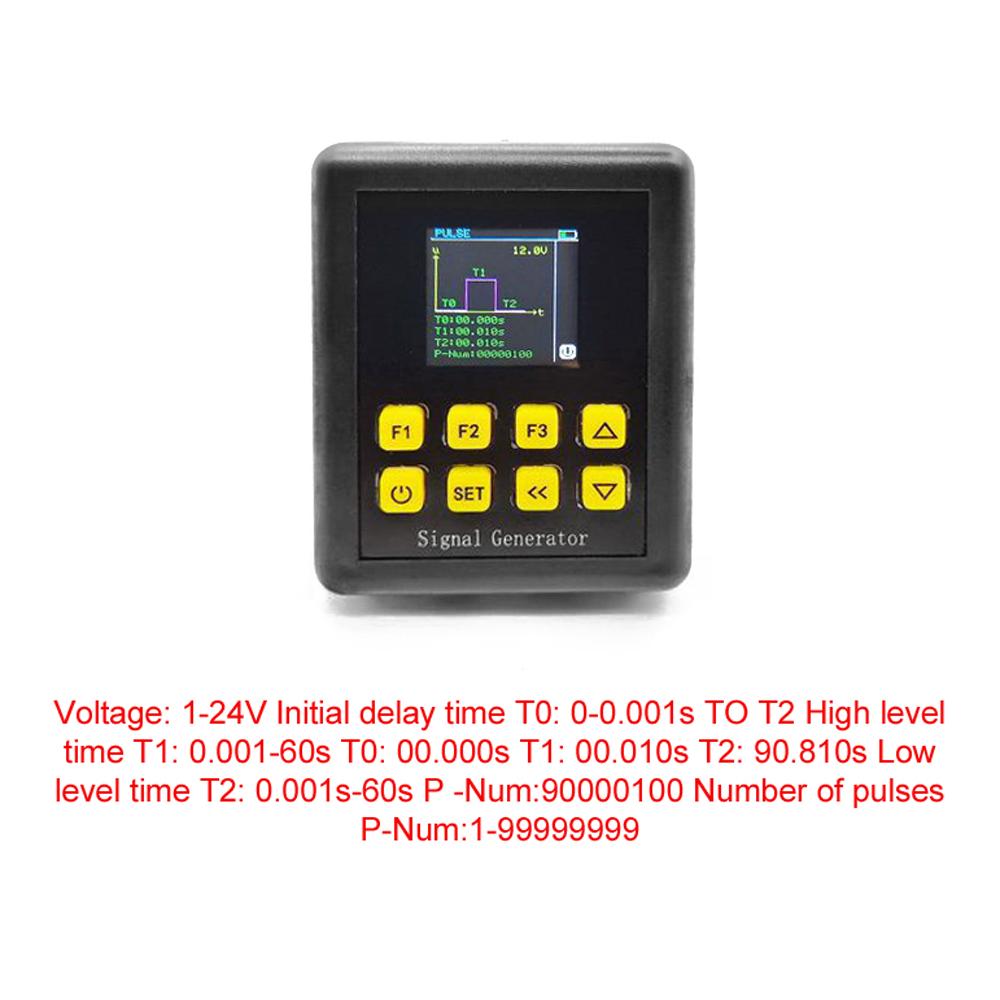

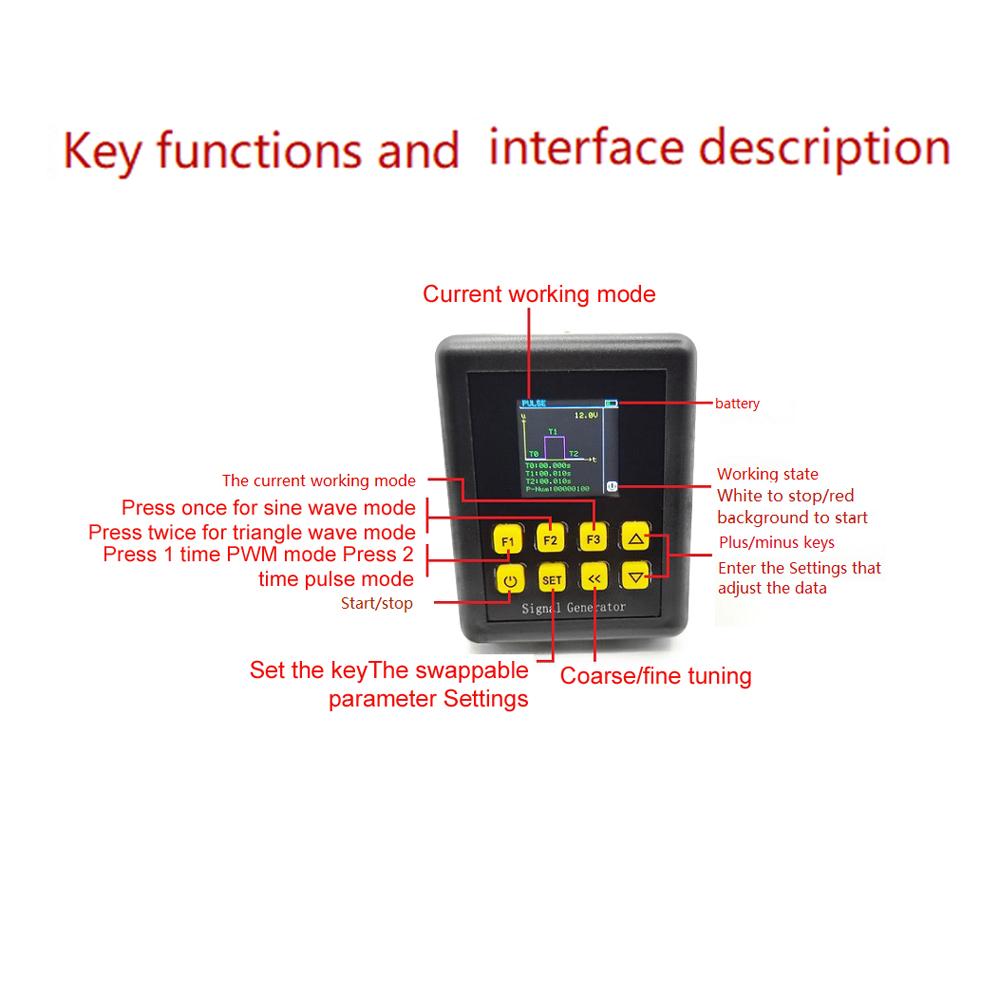

This signal generator adopts USB 5V power supplys, with 1000mAh capacity built-in battery, when the battery is fully-charged, it can work continuously for 8 hours. Equipped with 5 working modes, you can choose PWM mode, pulse mode, signal source mode, sinewaves and triangular waves mode according to your demands. Features:Classical layout control panel, conform to human engineering design, major function has its corresponding button, simple and easy to use.USB 5V power supplys, with 1000mAh capacity built-in battery, when the battery is fully-charged, it can work continuously for 8 hours.Equipped with 5 working modes, you can choose PWM mode, pulse mode, signal source mode, sinewaves and triangular waves mode according to your demands.PWM mode: voltage, frequency, duty cycle can be adjusted, the frequency accuracy is up to 0.1%; voltage ranges: 1-24V, frequency range: 1-150KHz, duty cycle range: 0-100%.Pulse mode: starting-delay time T0: 0-60S, high level time T1: 0-60S, low level time T2: 0-60S, number of pulses P-N: 1-99999999, resolution: 0.001S.Signal source mode: voltage source 0-10V adjustable, current source 0-20mA adjustable.Sinewaves and triangular waves mode: 1-999999HZ adjustable (sine waves and trianglar waves adjustable ranges are same)Signal load capacity: the maximum output current is 20mA (Note: The output of this product is a signal source and cannot directly drive high power loads) Specifications:Name: Signal GeneratorMaterial: plasticsBattery: 1 * 5V, 1000mAh battery (included)Voltage: 1-24VFrequency: 1-150KHzAmbient temperature: -10 ℃ to +70℃Item size: 92 * 70 * 28mm / 3.62 * 2.76 * 1.10inItem weight: 105g / 3.70ouncePackage size: 150 * 100 * 50mm / 5.91 * 3.94 * 1.97inPackage weight: 200g / 7.05ounce Packing List:1 * Signal Generator1 * USB Cable1 * Banana ConnectorGiá sản phẩm trên Tiki đã bao gồm thuế theo luật hiện hành. Bên cạnh đó, tuỳ vào loại sản phẩm, hình thức và địa chỉ giao hàng mà có thể phát sinh thêm chi phí khác như phí vận chuyển, phụ phí hàng cồng kềnh, thuế nhập khẩu (đối với đơn hàng giao từ nước ngoài có giá trị trên 1 triệu đồng).....
