New DC-DC 5V-30V to 0.8-29V Voltage Regulator Power Supply Module

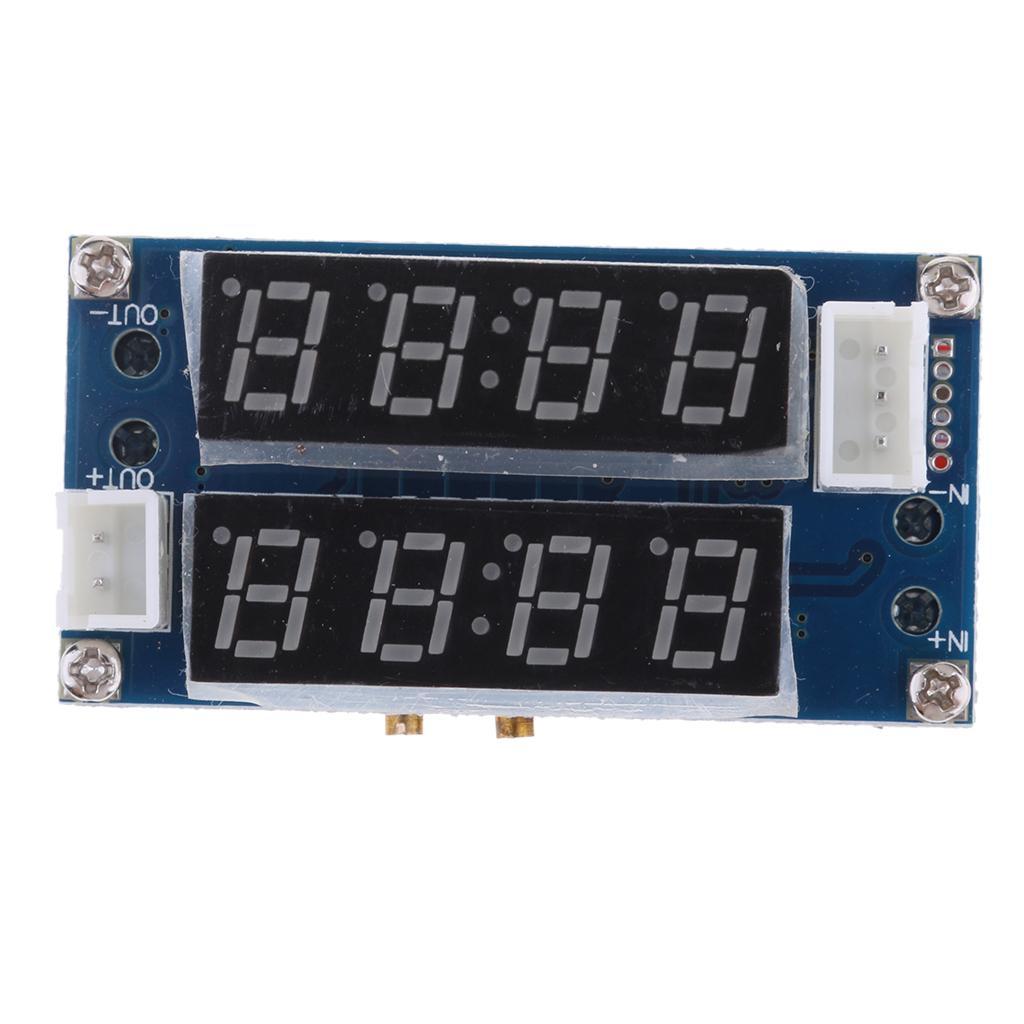

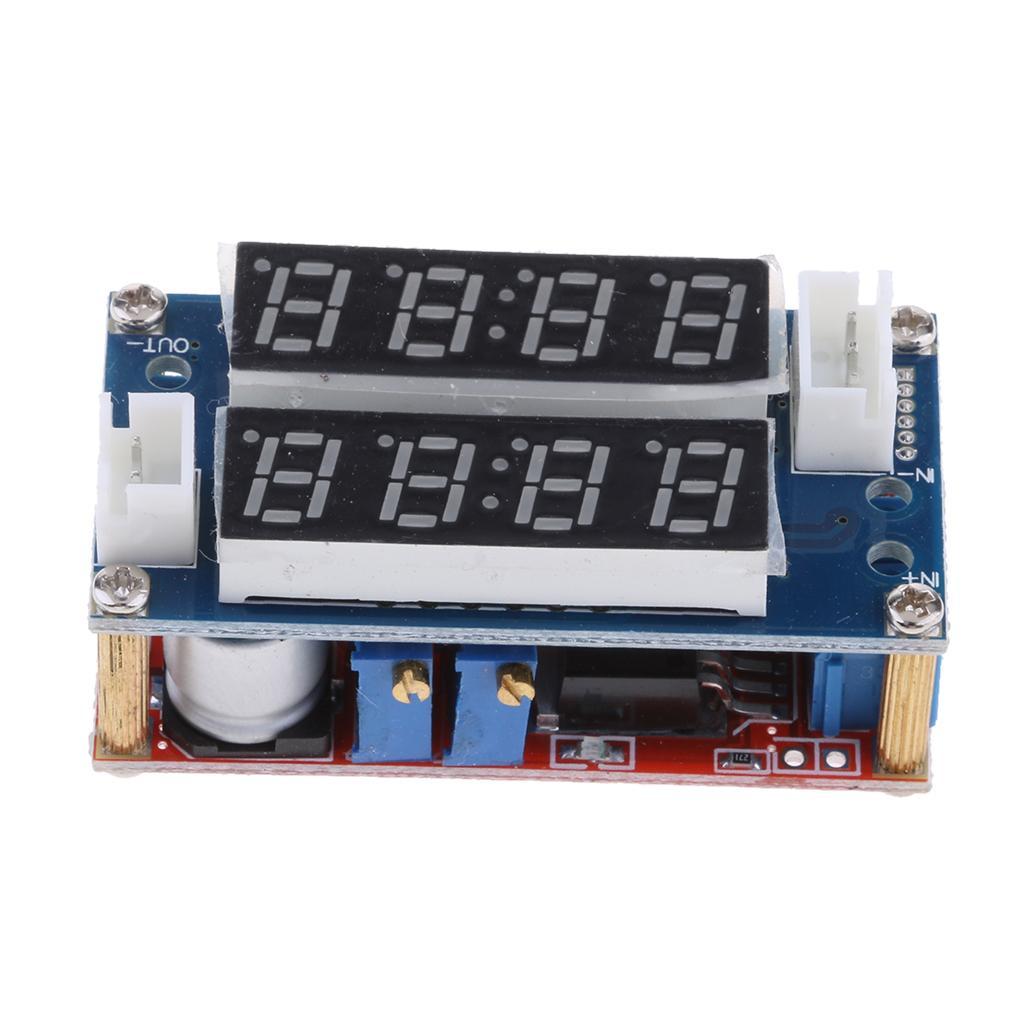

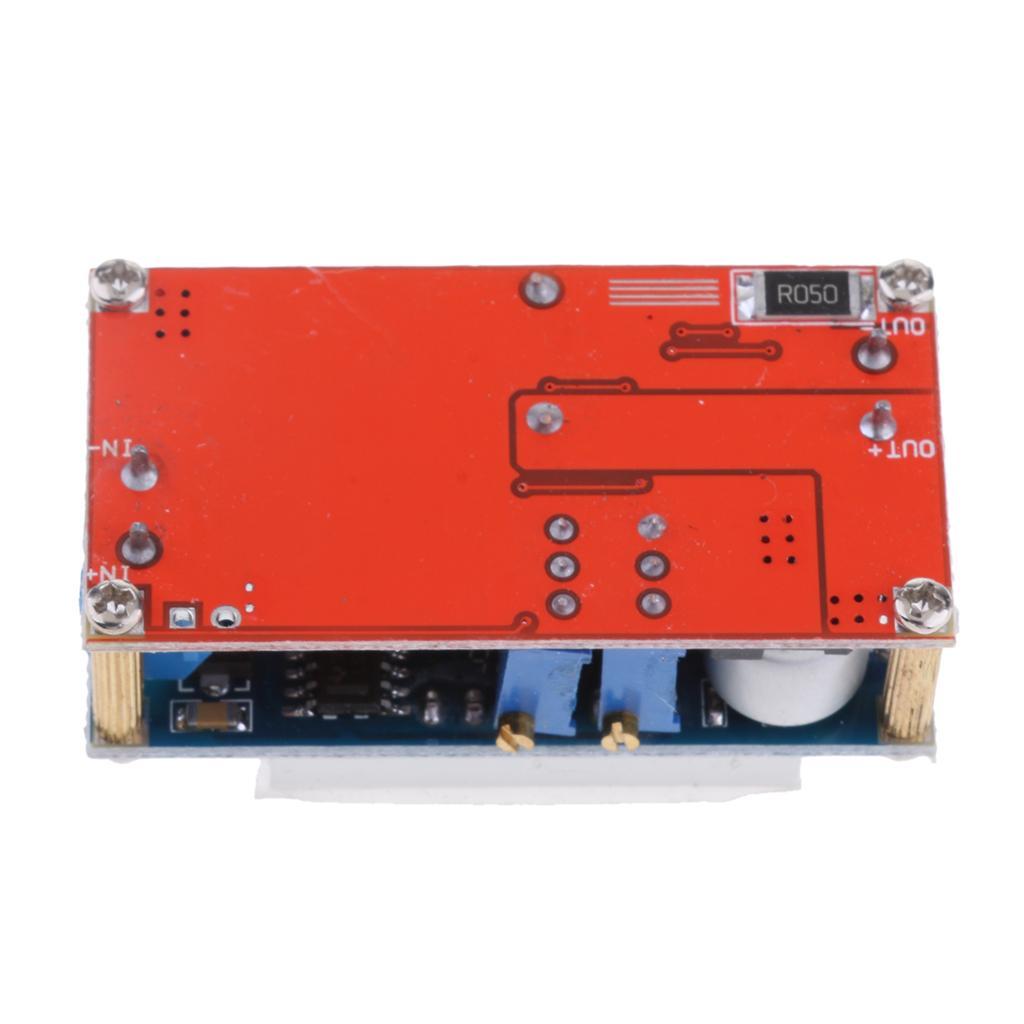

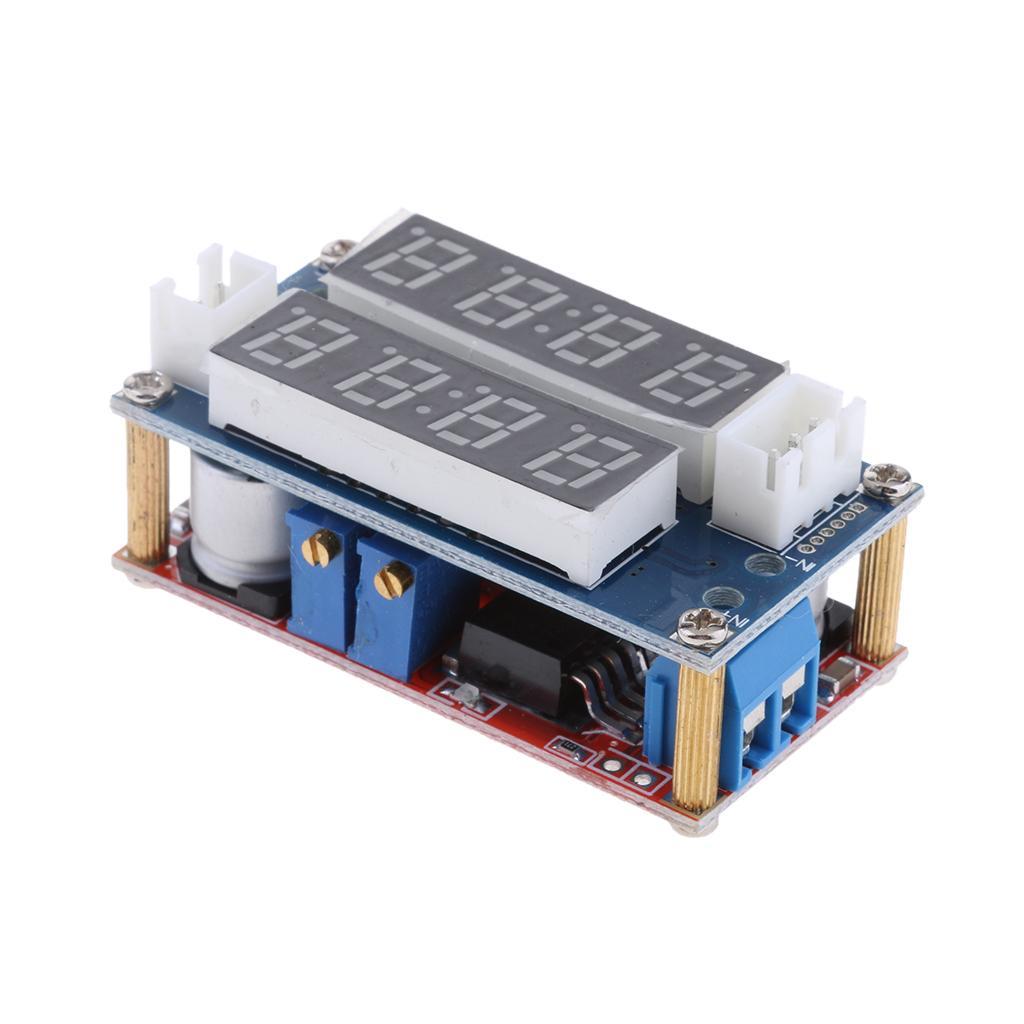

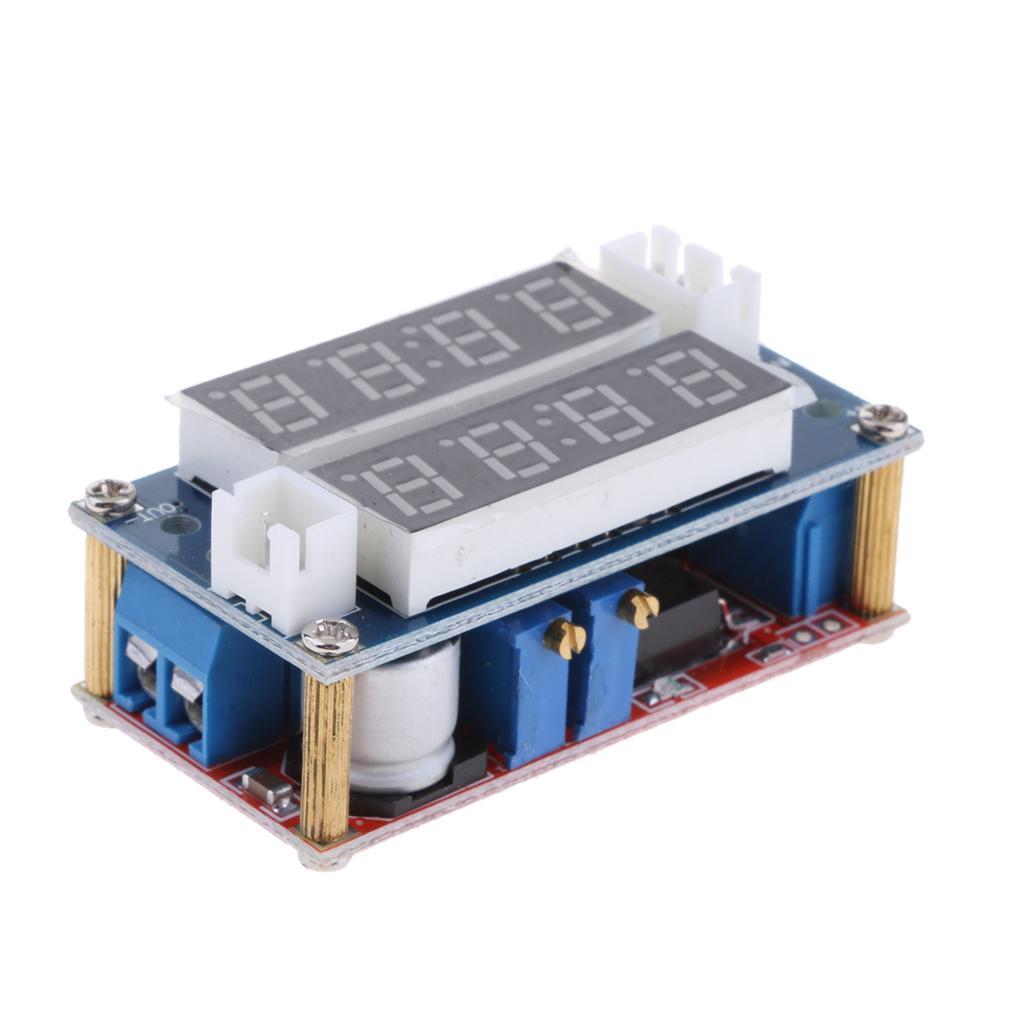

Description: The IN- (input negative), IN+ (positive input), OUT- (output negative) and OUT+ (positive output) marked on the module must be connected correctly, otherwise the module may be damaged.The buck power converter input voltage range is DC 5V-30V, output voltage range is DC 0.8-29V, output current is 5A(Max).Digital LED Display: the digital LED can display output current, input voltage and output voltage, convenient for monitoring.Note: 30V is the highest input voltage limit, please leave some room to use or it will be damaged.It is a regulator module, the input voltage must be 5V higher than Output voltage. Specification: Module Properties: non-isolated moduleRectification: non-synchronous rectificationInput voltage: 5V-30VOutput voltage: 0.8V-29VOutput current: adjustable maximum 5AConversion efficiency: 95% (the highest)Switching frequency: 300KHzOutput ripple: 50mV (max) 20M bandwidthLoad Regulation: ± 0.5%Voltage Regulation: ± 2.5%Operating Temperature: -40℃to +85℃Size (LxWxH): Approx. 51x26.3x14 mm / 2.00x1.03x0.55 inchVoltmeter Ammeter:Measurement accuracy: 0.1%Refresh rate: about 200ms / timesDisplay: 0.28\"digital tubeCurrent Range 0A-5AVoltage range 5V-30VDisplay Color Red Package Includes: 1 Piece power module Note: Before purchasing, please check whether the products are compatible with your products; and after receiving, please check the packages as below, including quantity, color, and so on. If you have any problems, please contact us via eBay messaging at any time. Giá sản phẩm trên Tiki đã bao gồm thuế theo luật hiện hành. Bên cạnh đó, tuỳ vào loại sản phẩm, hình thức và địa chỉ giao hàng mà có thể phát sinh thêm chi phí khác như phí vận chuyển, phụ phí hàng cồng kềnh, thuế nhập khẩu (đối với đơn hàng giao từ nước ngoài có giá trị trên 1 triệu đồng).....
