PWM hub 4 Pin 3Pin Power Cable Extended for Computer Cooler Fans

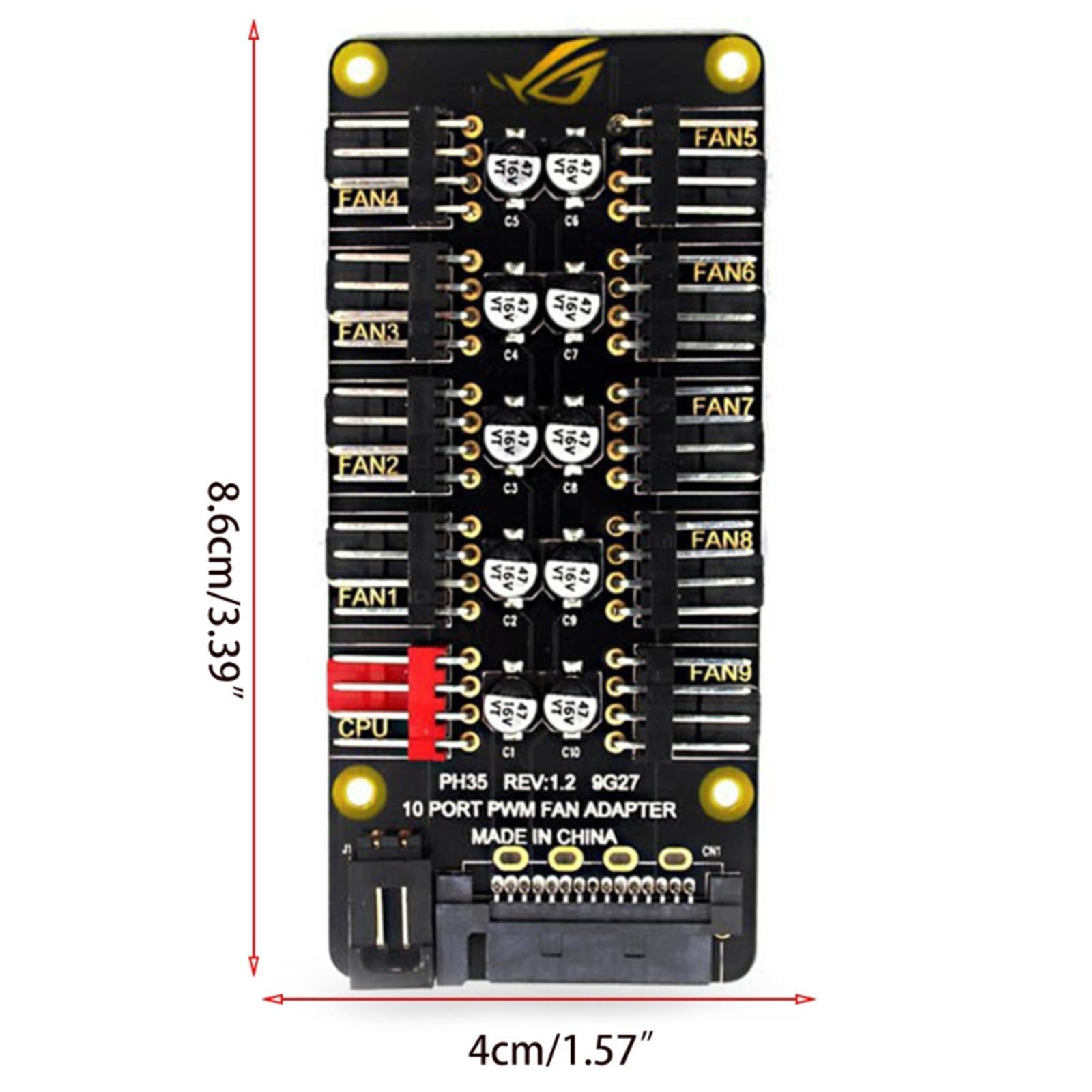

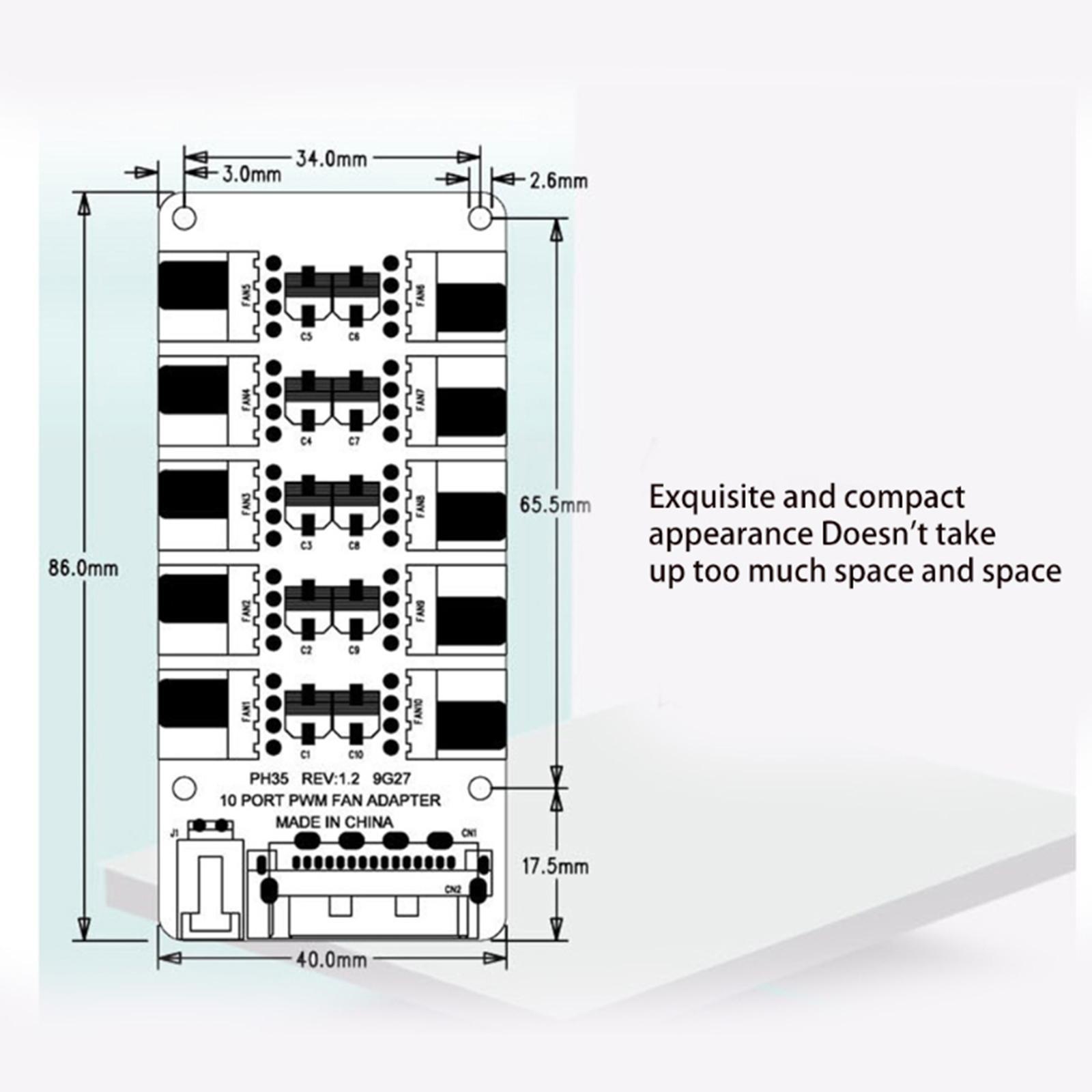

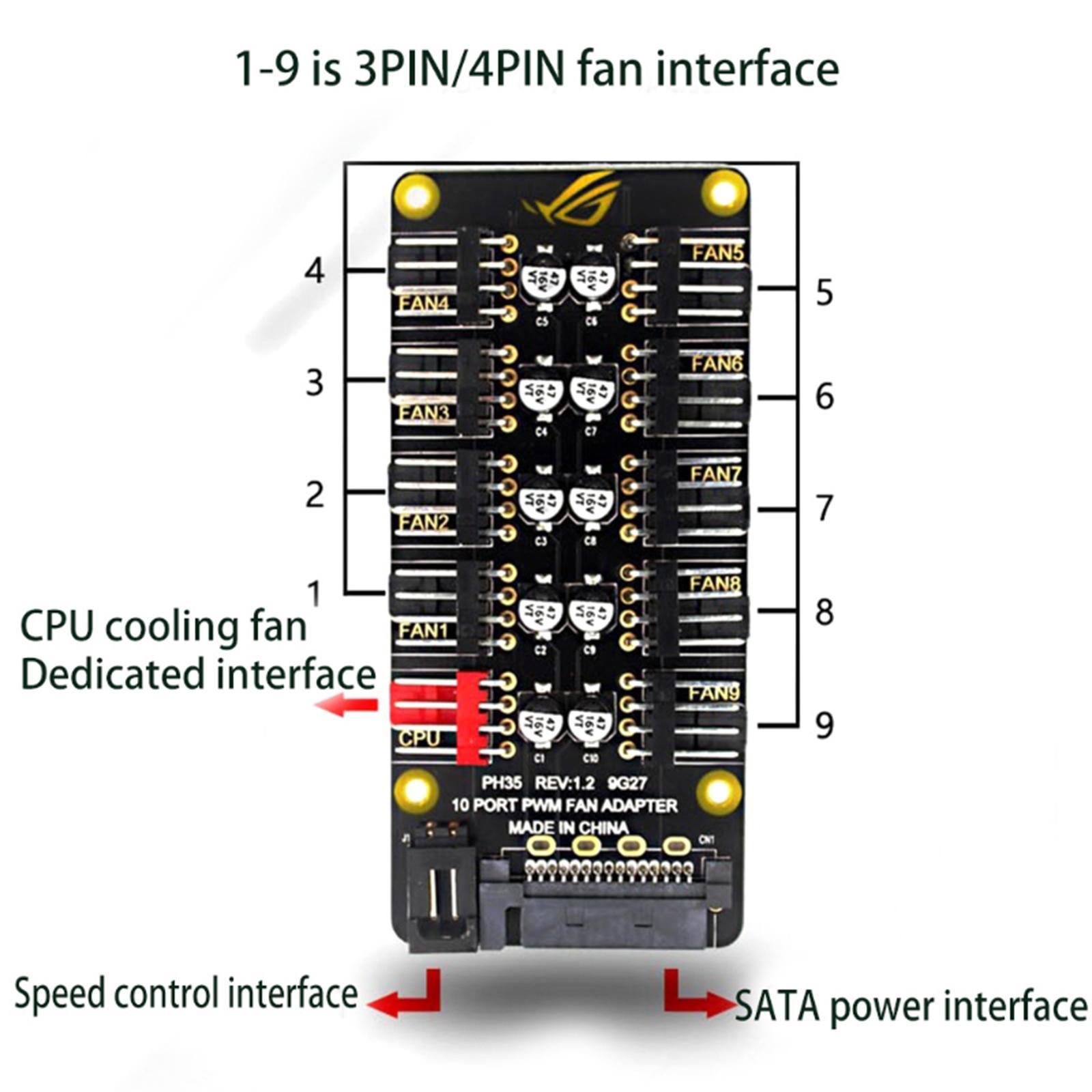

Description: Applicable object: desktop fanWorking principle: The SATA 15PiN interface is connected to the host power supply, and fans are powered through the SATA interface; the speed control interface is connected to the motherboard CPU fan interface through a 2P to 4P cable; the computer CPU fan connected to the red interface of the controller; the fan installed by the user is connected to FAN1-9 is enough; the motherboard detects the speed of the CPU fan and synchronously adjusts the speed of fans. Therefore, FAN1-9 does not have the function of feedback speed, only PWM speed regulation functionPCB circuit board: fully gold plated PCB circuit board, equipped with 10 capacitorsAdhesive fixation: Equipped with 1 double sided EVA cotton, the thickness of 2mm EVA completely covers the bottom, protects the bottom solder joints, avoids short circuit caused by contacting the metal chassis, and can also be fixed to any position of the host by EVA stickingInterface: 3PiN 4PiN fan interface, dedicated interface for CPU cooling fan, speed control interface, SATA power interface Specification: Size: 8.6cmx4cm/3.39inchx1.57inchMaterial: Metal Size Chart: 8.6cmx4cm/3.39inchx1.57inch Package Includes: 1 Desktop Fan Extender1 Double sided adhesive1 PMW speed control line1 Fastening tie Note: Please allow slightly errors due to manual measurement and different monitors. Giá sản phẩm trên Tiki đã bao gồm thuế theo luật hiện hành. Bên cạnh đó, tuỳ vào loại sản phẩm, hình thức và địa chỉ giao hàng mà có thể phát sinh thêm chi phí khác như phí vận chuyển, phụ phí hàng cồng kềnh, thuế nhập khẩu (đối với đơn hàng giao từ nước ngoài có giá trị trên 1 triệu đồng).....
