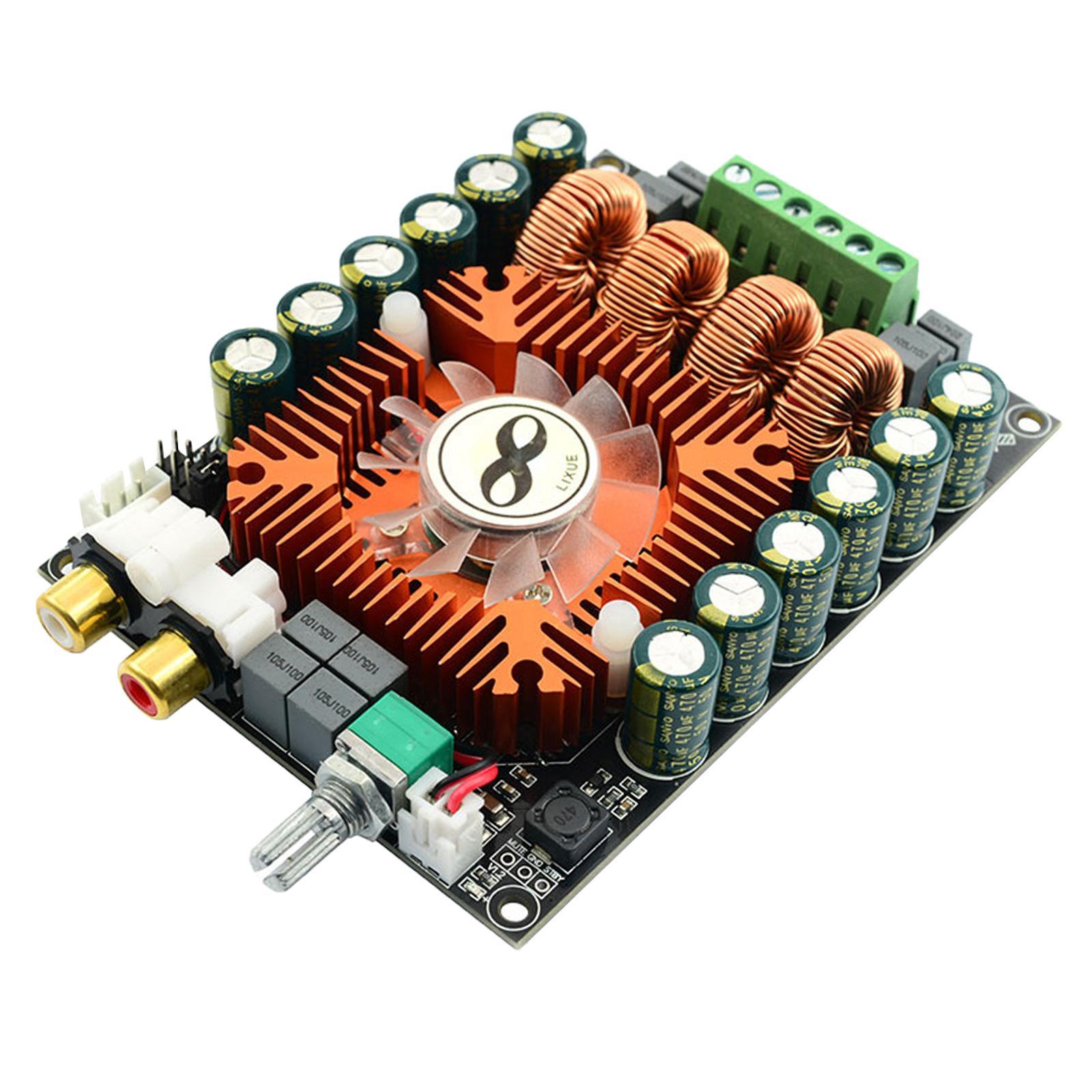

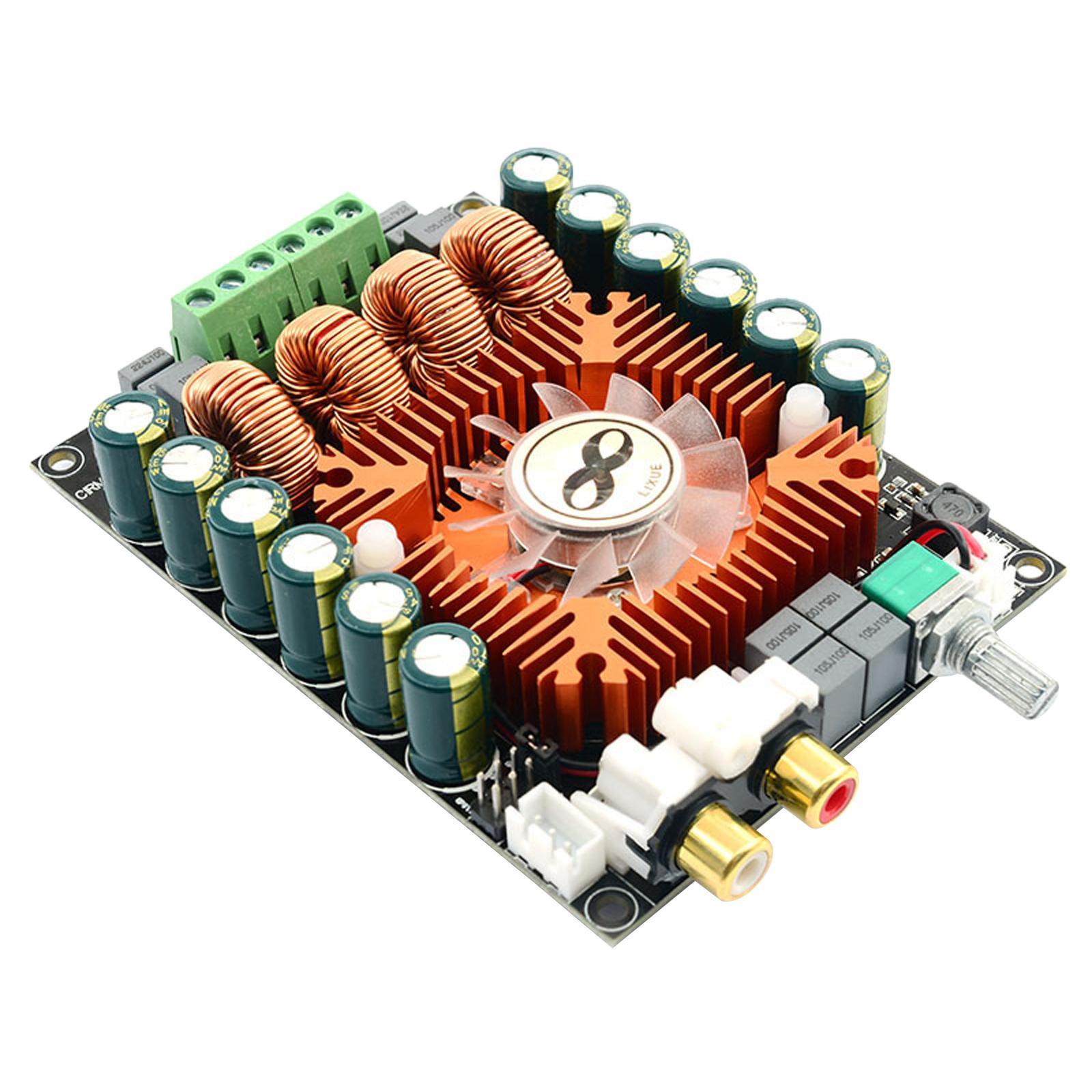

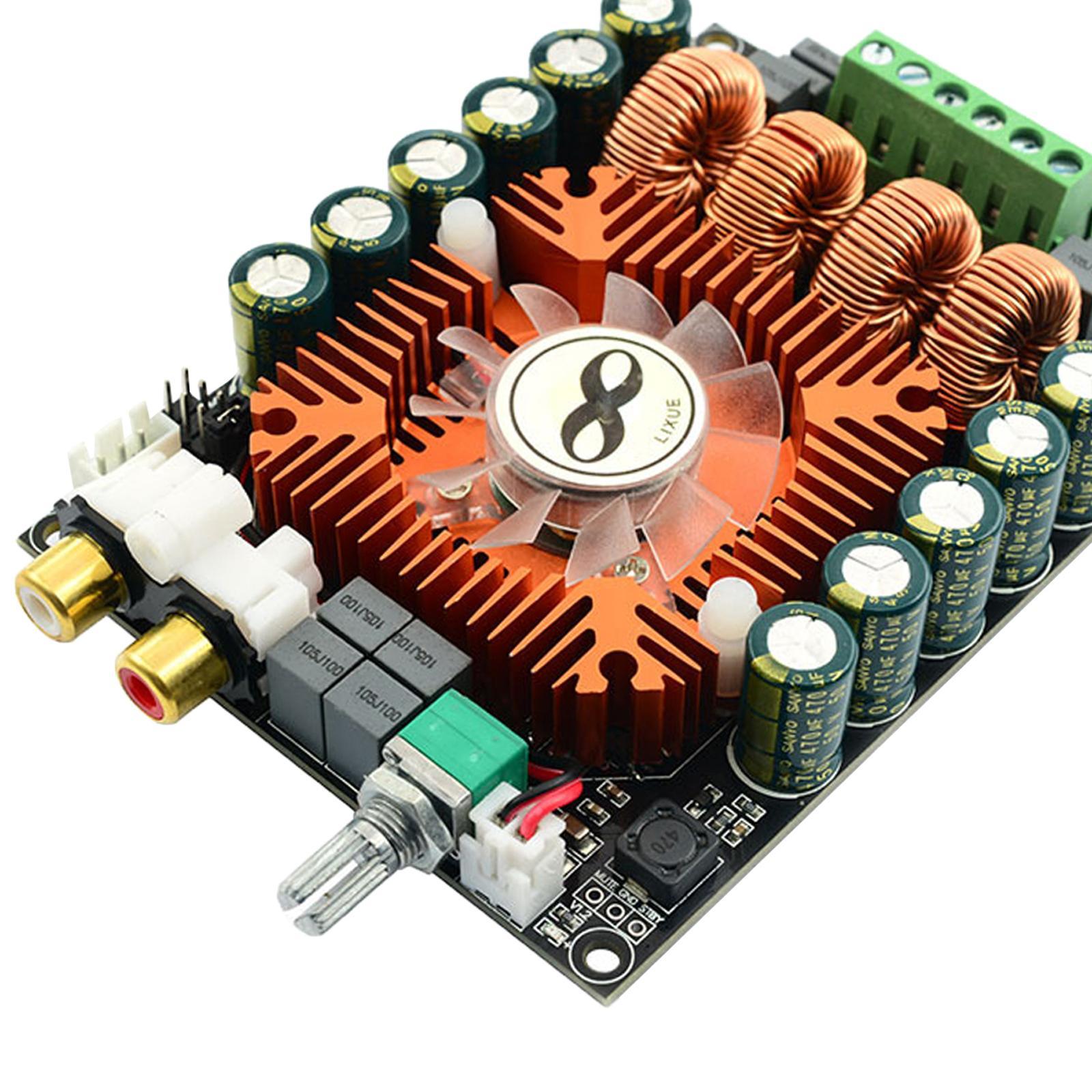

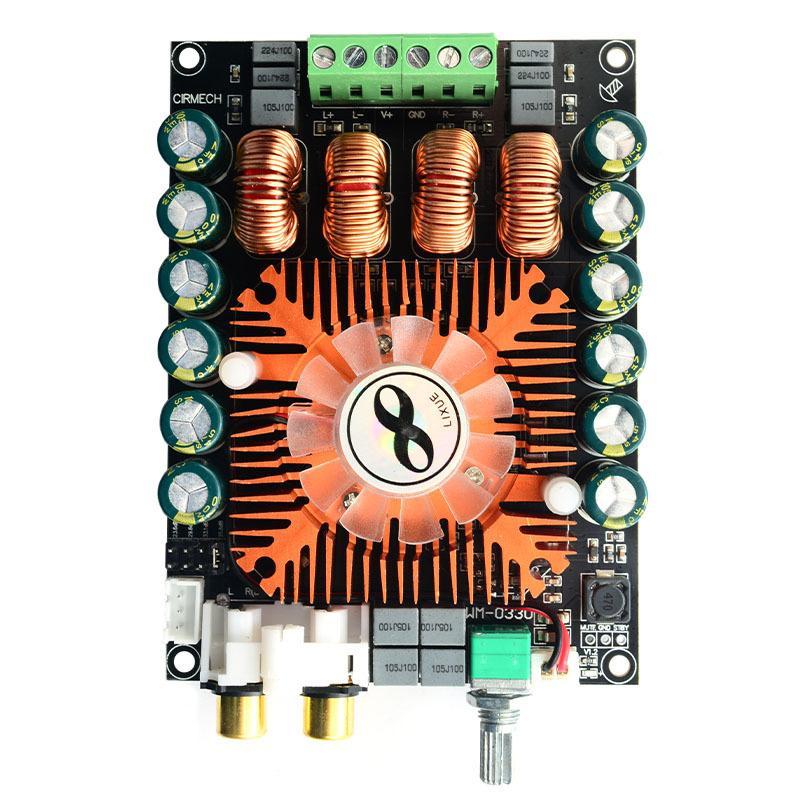

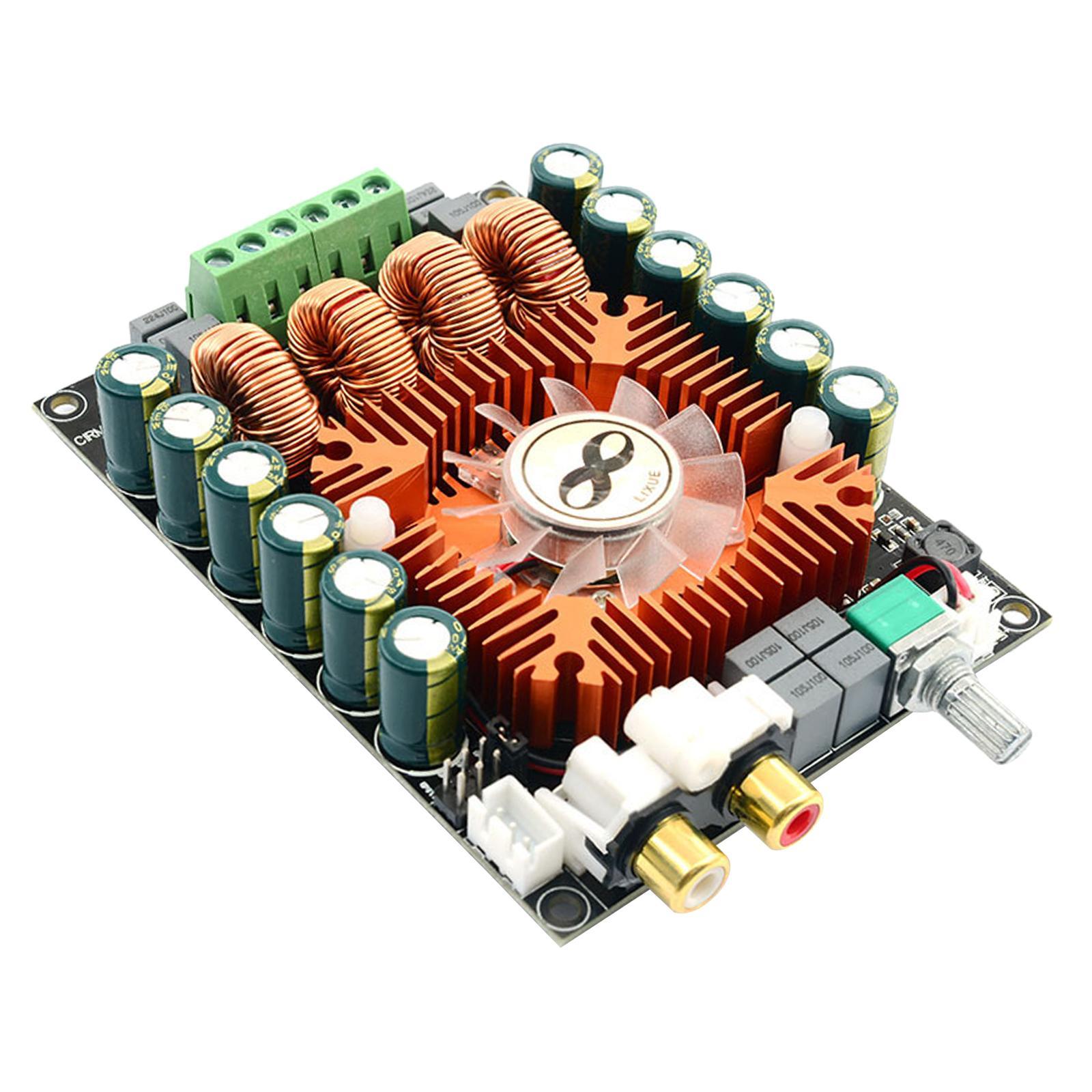

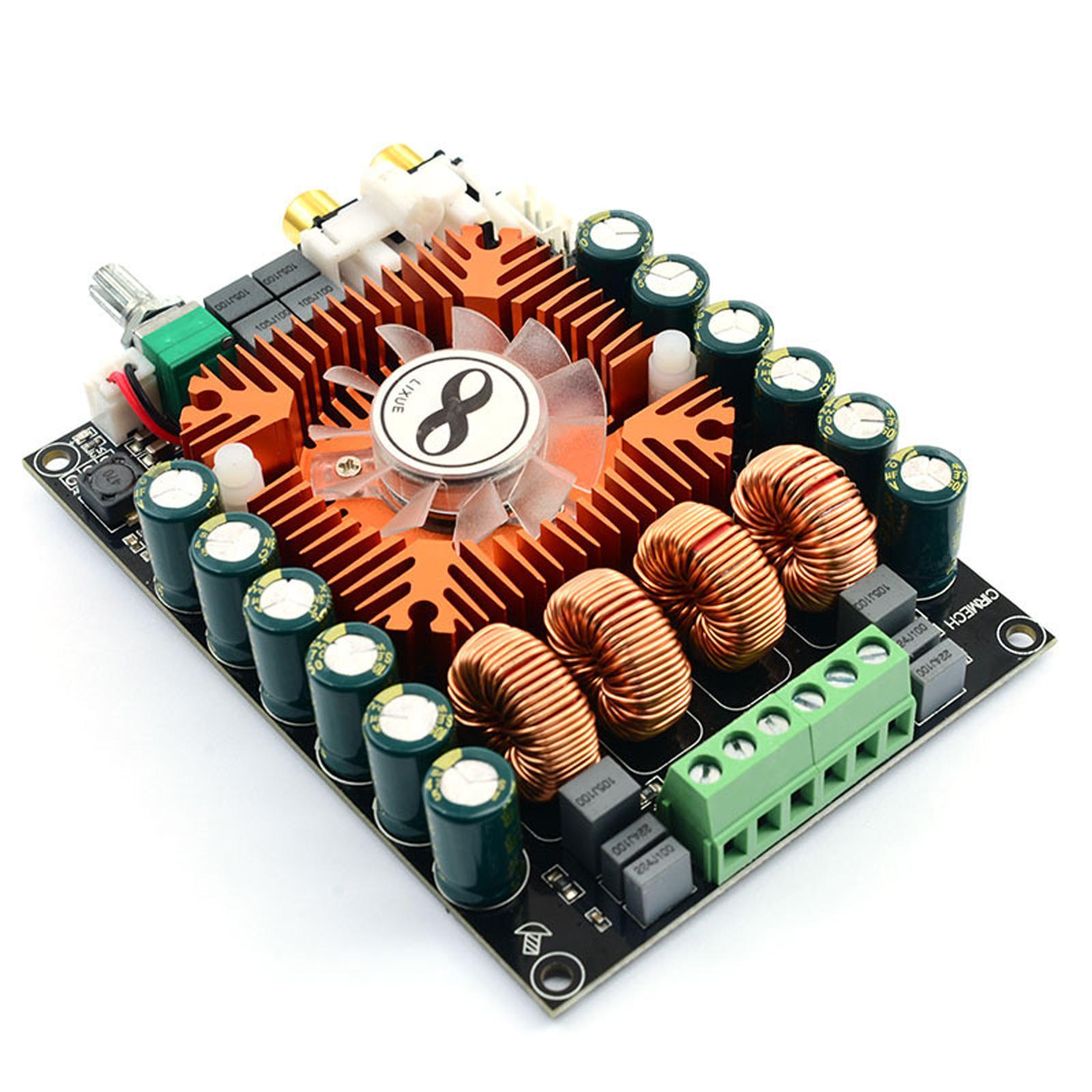

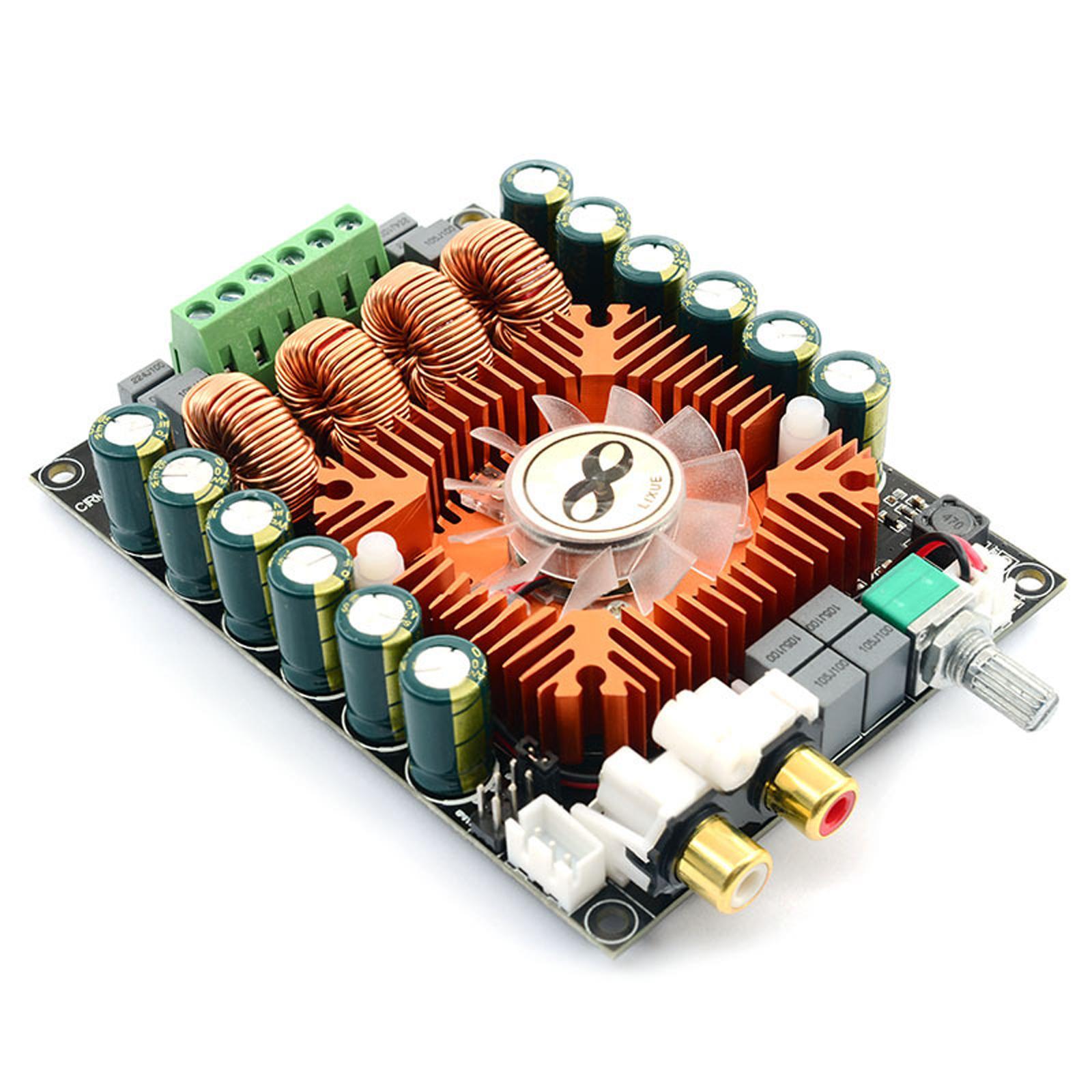

TDA7498E Audio Power Amplifier Board Btl Module for Computer Vehicle Car

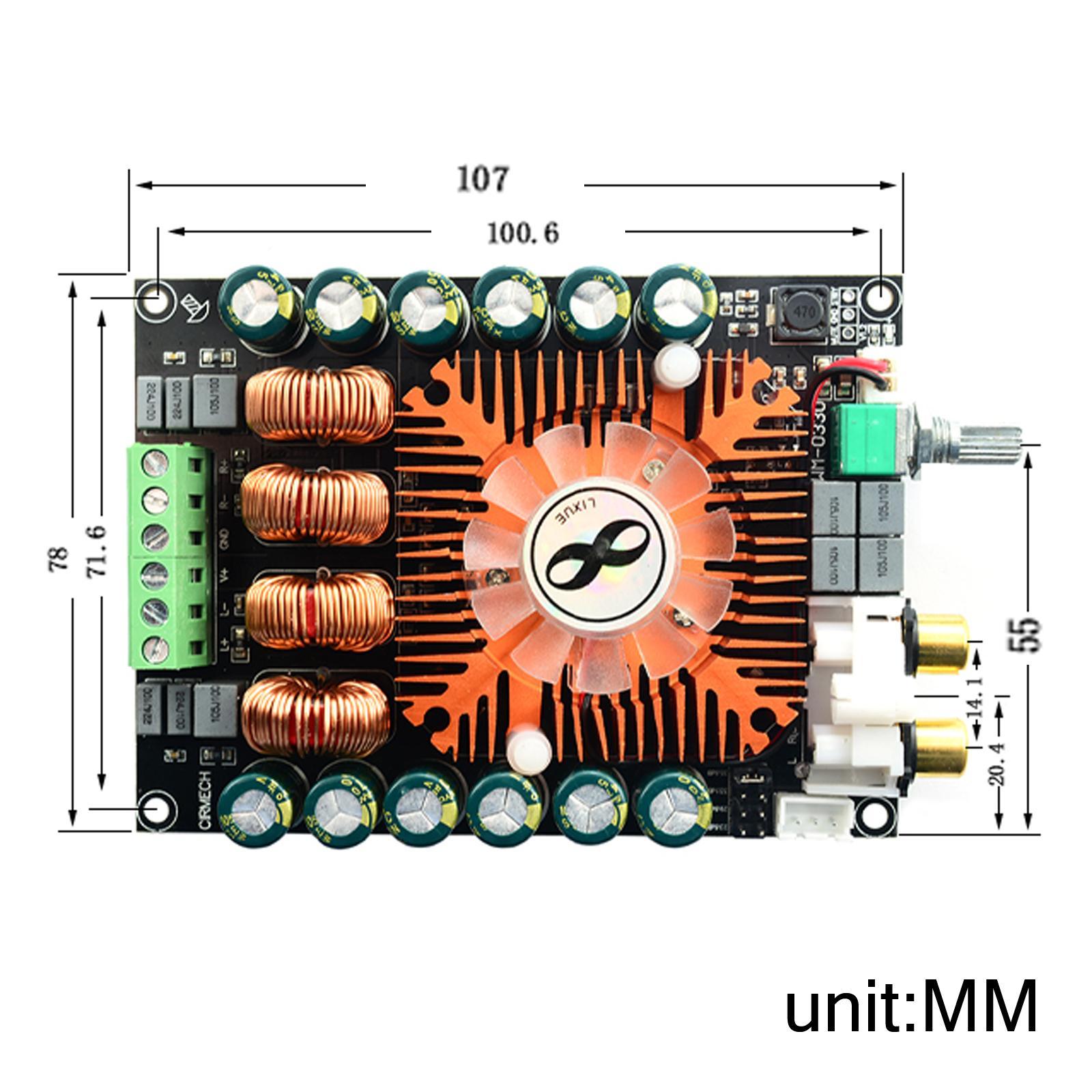

Description: TDA7498E Amplifier Board: TDA7498E chip BTL power amplifier, high power, quality.Feature: Output power: 160W + 160W (Vcc = 36V, RL = 4Ω, THD: 10%); Output power: 1x220W single channel at parallel BTL (Vcc = 36V, RL = 3Ω, THD: 10%); High efficiency: 85%Note: of single power supply: 15-36V DC, with input reverse connection protection (if of the speaker is really large enough, the recommended supply is 32V, 8A or above)Application: Suit for speaker impedance 4Ω, 6Ω, 8Ω; Four fixed gain settings: 29.6dB, 33.1dB, 35.6dB and 35.6dBWith standby and mute function: the short point displayed as standby or mute, can be left empty; controlled forced temperature Specification: Name: TDA7498E Amplifier BoardChip: TDA7498EInput Voltage: DC 12-32vOutput Power: 160W x 2Channel: 2 Channel, StereoOutput Impedance: 4 - 8ΩFrequency Response: 20Hz-20KHzProtection function: short circuit, overheating, power supply antireverse connectionCooling method: temperature cooling intelligent coolingFeatures: BTL, gain adjustableNet weight: about 160gOutput power 160W+160W (vcC-32V RL==10%)Output power 200w (vcC-32V RL=3THD=10%BTL mono output 200W) Size Chart: 12cmx7.8cmx2.16cm/4.72inchx3.07inchx0.85inch Package Includes: 1pc Amplifier Board Note: Please allow slightly errors due to manual measurement and different monitors. Giá sản phẩm trên Tiki đã bao gồm thuế theo luật hiện hành. Bên cạnh đó, tuỳ vào loại sản phẩm, hình thức và địa chỉ giao hàng mà có thể phát sinh thêm chi phí khác như phí vận chuyển, phụ phí hàng cồng kềnh, thuế nhập khẩu (đối với đơn hàng giao từ nước ngoài có giá trị trên 1 triệu đồng).....
