Thiết bị quét chẩn đoán lỗi ô tô OBD II ELM 327 USB V2.2 ODB2 Type-C Bluetooth 4.0 cho Android/IOS

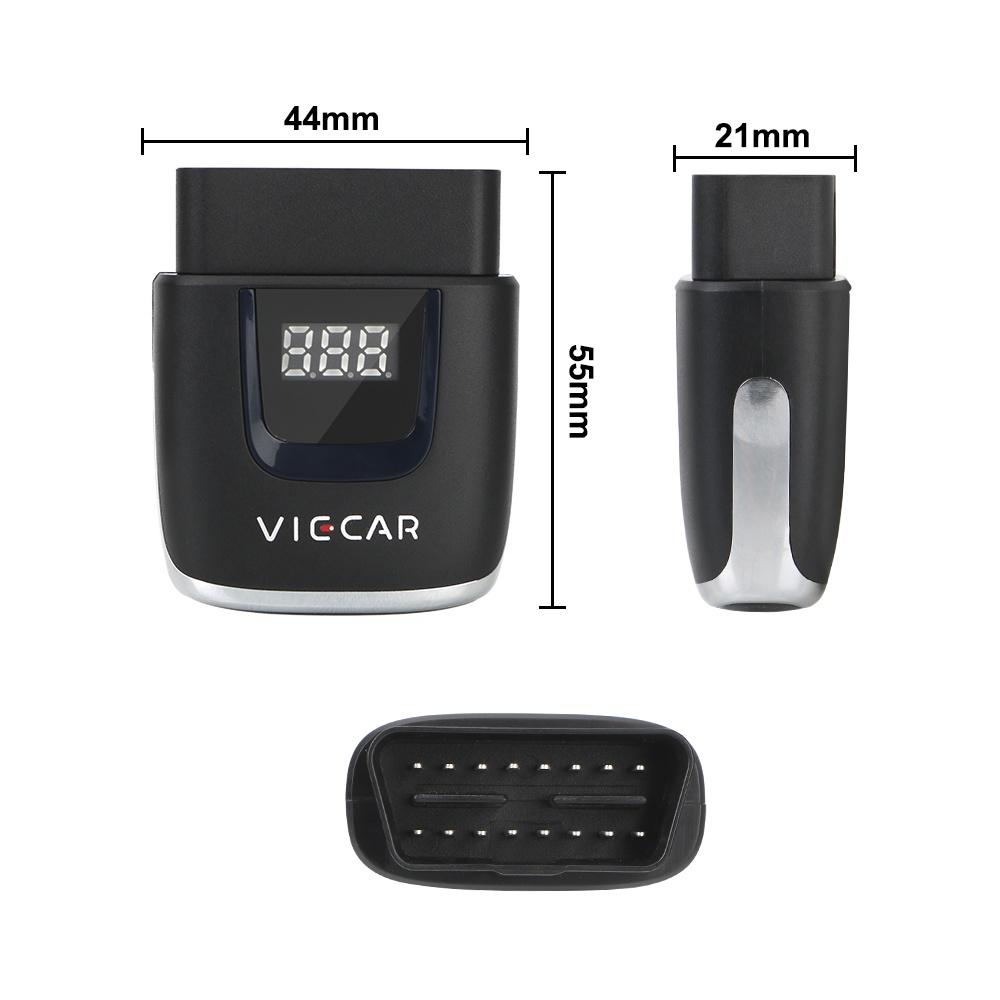

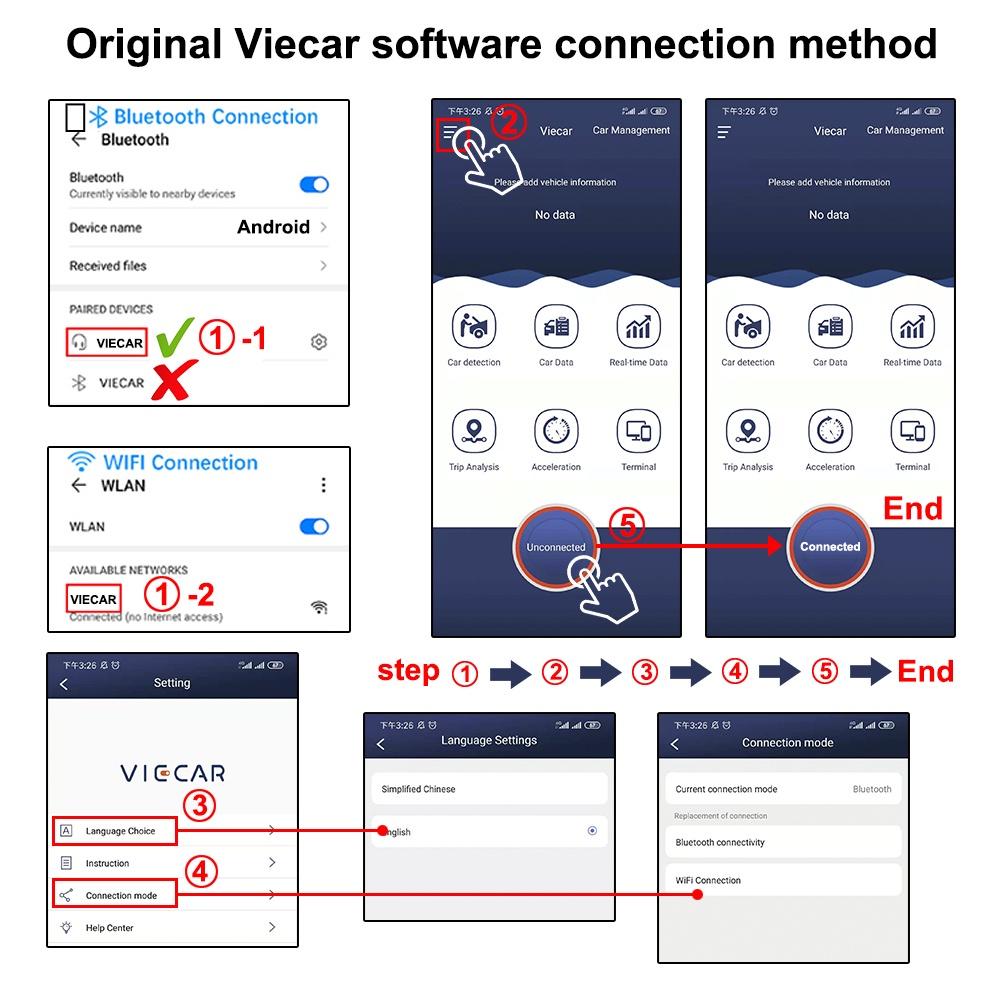

Download QR code for original Viecar software: Android password: a123456 IOS don't need password PC： Product Description: The VP001/3 is Bluetooth 4.0/Ty-pe C（USB）Bluetooth OBD product with the following features: Nine protocols supporting the OBD II/EOBD standard Wide power supply range: 9~36V power supply; reliable overcurrent and overvoltage protection With standby low power mode to ensure the safe use of car batteries; With digital tube display voltage, current, enhance customer experience Technical Parameters: SSID: Viecar Firmware Version：V2.2 Main control chip: PIC18F25K80 Software platform: support Android /IOS/ Windows Working voltage: DC 9～3 6V Working current: 40mA Standby current: 5mA Operating environment: -20 ~ 65 ° C Storage temperature: -40 to 80 ° C Dimensions: 56*45.8 *24mm Supported Agreement: Read error diagnostic code Clear the fault code (clear the error code and turn off MIL) Calculated load value Coolant temperature Fuel system status Speed Short-term fuel situation Long-term fuel situation Intake manifold pressure Fuel injection advance time Intake air temperature Air flow rate Throttle absolute position Oxygen detection voltage associated with short-term fuel state Fuel system status Fuel pressure Fuel consumption monitoring, etc. Remarks: The number of data items supported by the model year is also different, subject to actual support Supported Agreement: SAE J1850 PWM (41.6 Kbaud ) SAE J1850 VPW (10.4 Kbaud ) ISO 9141-2 (5 baud init, 10.4 Kbaud) ISO 14230-4 KWP (5 baud init, 10.4 Kbaud ) ISO 14230-4 KWP (fast init, 10.4 Kbaud) ISO 15765-4 CAN (11bit ID, 500 Kbaud) ISO 15765-4 CAN (29bit ID, 500 Kbaud) ISO 15765-4 CAN (11bit ID, 2500 Kbaud) ISO 15765-4 CAN (29bit ID, 250 Kbaud) Package Included: 1x Car Diagnostic Tool 1x User Manual Giá sản phẩm trên Tiki đã bao gồm thuế theo luật hiện hành. Bên cạnh đó, tuỳ vào loại sản phẩm, hình thức và địa chỉ giao hàng mà có thể phát sinh thêm chi phí khác như phí vận chuyển, phụ phí hàng cồng kềnh, thuế nhập khẩu (đối với đơn hàng giao từ nước ngoài có giá trị trên 1 triệu đồng).....
